Chicago Pneumatic CP8609TC-xCT Ebluetork Extended Cup Pack TC - 1 Trigger – 6151570650
1" Battery Torque Wrench Torque Check single trigger - extended Cup

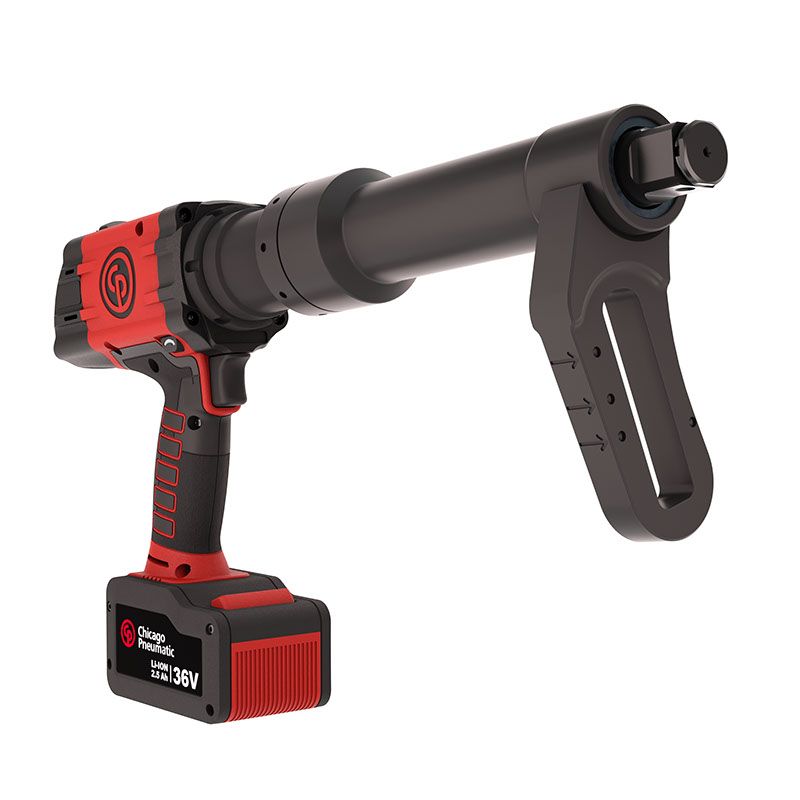

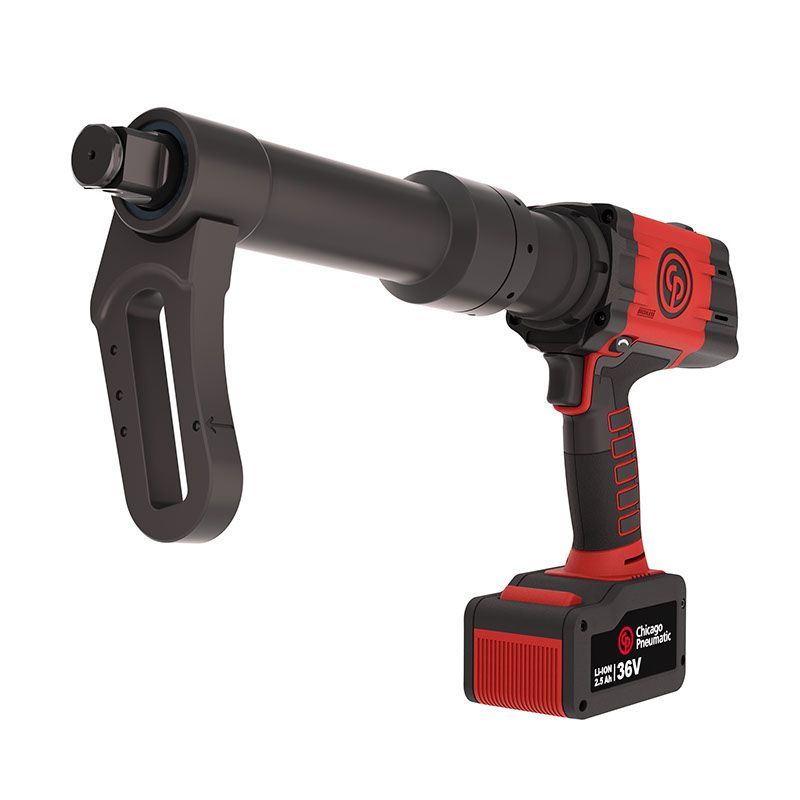

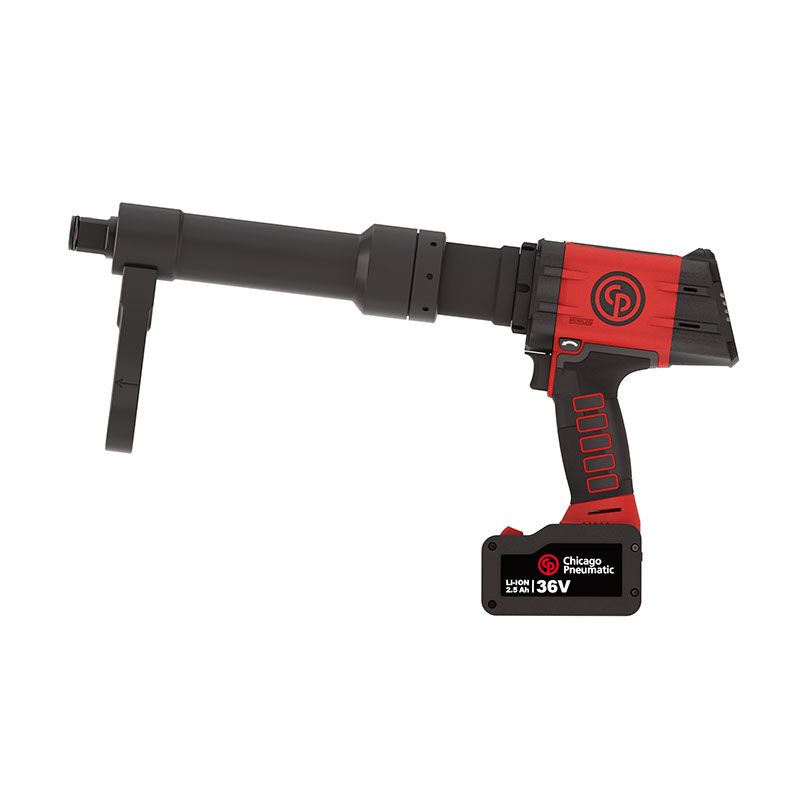

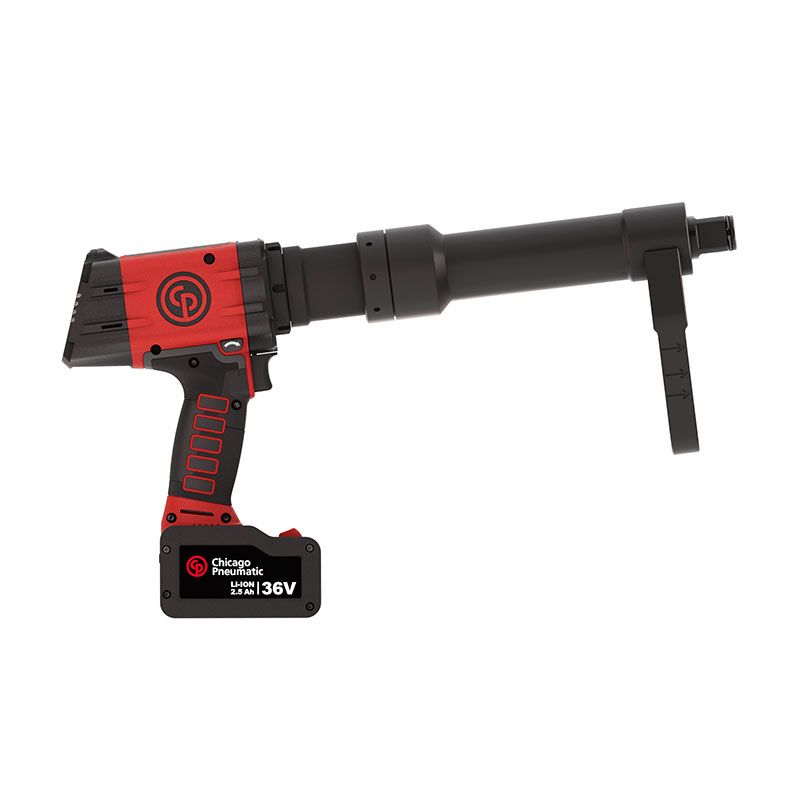

CP8609 eBlueTork with extended Cup reaction arm (Cup available separately as accessory) and one starting trigger. This tool allows torque tightening and torque check from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. It is eligible for CP Care, including calibration to ensure optimal performance and long-term reliability.
Features
- High precision (+/- 4%) for safe tightening
- Fast and long-lasting gearbox dedicated to wheel tightening
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen or via CPLinQ app
Specifications
| Battery Capacity | 2.5 Ah |
| Battery Type | Lithium-ion |
| Battery Voltage | 36 V |
| Max Ambient Operating Temperature | 140 ºF |
| Max Recommended Ambient Charging Temperature | 113 ºF |
| Min Ambient Operating Temperature | 32 ºF |
| Min Recommended Ambient Charging Temperature | 32 ºF |
| Sound Power (dba) | <83 |
| Sound Pressure | 62 dB(A) |
| Uncertainty vibration-K | 1.8 ft/s² |
| Vibration (m/s²) | <2.5 |
| Max Ambient Storage Temperature | 140 ºF |
| Min Ambient Storage Temperature | -4 ºF |
| Battery Weight | 1.76 lb |
| Height (H) | 11.22 in |
| Length (L) | 19.49 in |
| Width (W) | 3.03 in |
| Power Weight Ratio | 130 Nm/kg |
| Weight | 15.2 lb |
| Free Speed | 15 rpm |
| Max Torque in Forward | 664 ft.lbf |
| Max Torque Reverse | 664 ft.lbf |
| Min Torque in Forward | 221 ft.lbf |
| Recommended Torque | 531 ft.lbf |
| Torque Control System | Shut-off-current control |
| Adjustment | Digital |
| Handle Type | Pistol |
| Joint Type | Hard & Soft |
| Main Material Type | Steel |
| Output Drive Size (in) | 1 |
| Output Drive Type | Sq |
| Output Retainer Type | Dual |
| Reaction Bar Type | Sliding drive |
| Reversible | Yes |
| Starting System | Trigger |
| CP part # | 6151570650 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570650
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
