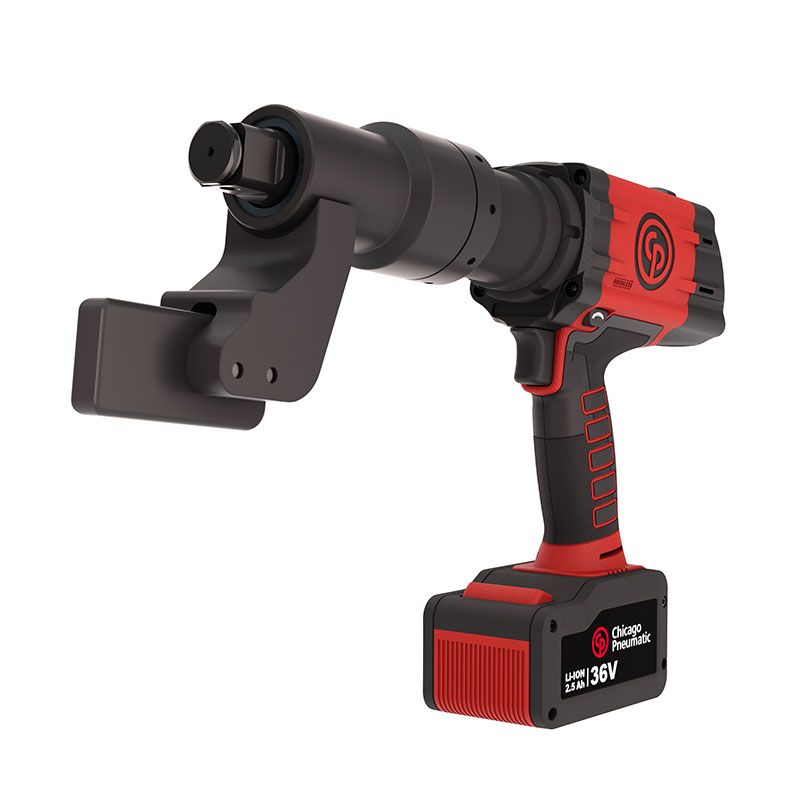

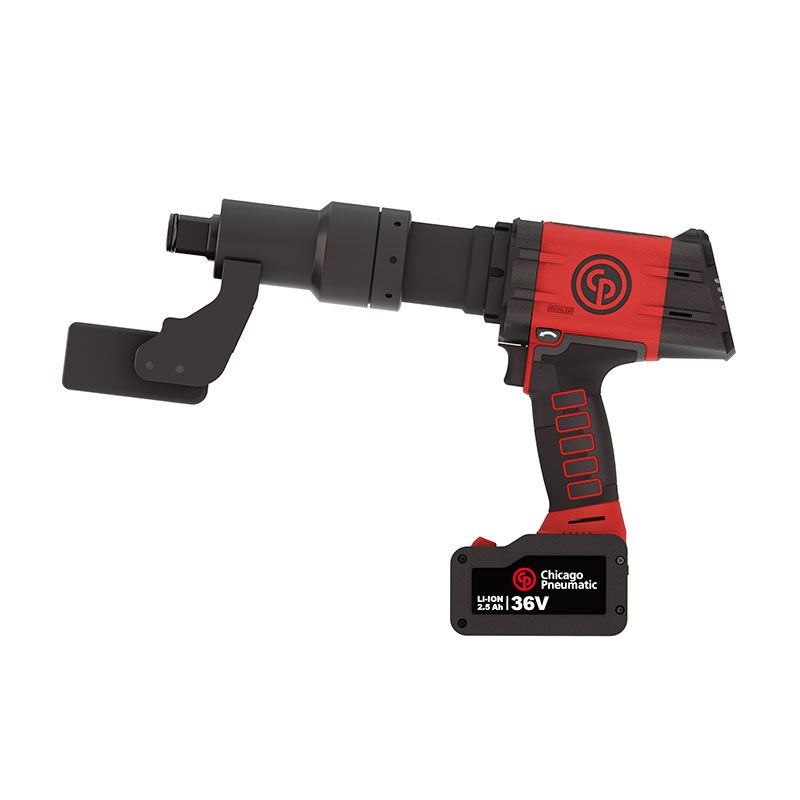

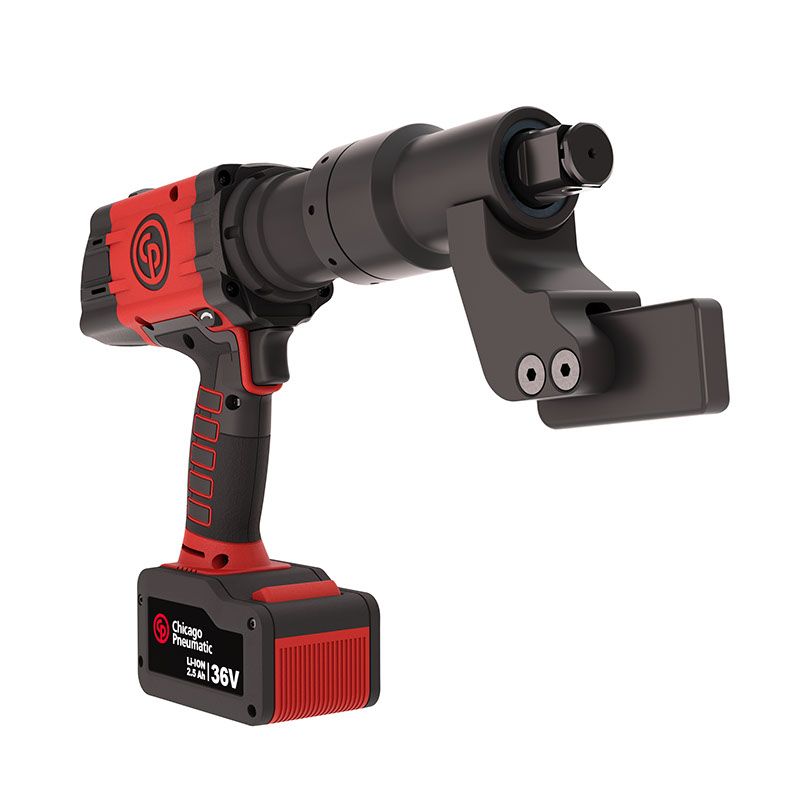

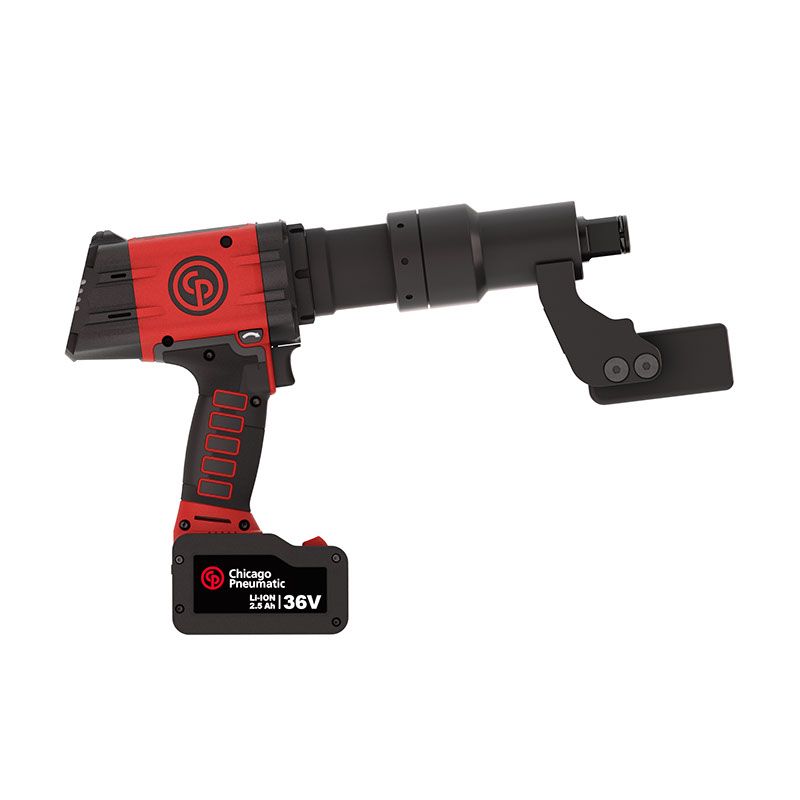

Chicago Pneumatic CP8609CQ-BT Ebluetork Blade Pack CQ - 1 Trigger – 6151570460
1" Battery Torque Wrench Connected Quality single trigger - Blade
CP8609 eBlueTork with Blade reaction arm and one starting trigger. Torque tightening from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service.
Features
- High precision (+/- 4%) for safe tightening
- Fast and long-lasting gearbox dedicated to wheel tightening
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Max Ambient Operating Temperature | 140 ºF |
| Max Recommended Ambient Charging Temperature | 113 ºF |
| Min Ambient Operating Temperature | 32 ºF |
| Min Recommended Ambient Charging Temperature | 32 ºF |
| Sound Power (dba) | <83 |
| Sound Pressure | 62 dB(A) |
| Uncertainty vibration-K | 1.8 ft/s² |
| Vibration (m/s²) | <2.5 |
| Max Ambient Storage Temperature | 140 ºF |
| Min Ambient Storage Temperature | -4 ºF |
| Battery Weight | 1.76 lb |
| Height (H) | 11.22 in |
| Length (L) | 14.96 in |
| Width (W) | 3.03 in |
| Power weight ratio | 150 Nm/kg |
| Side to Center | 1.32 in |
| Weight | 12.7 lb |
| Weight without reaction arm | 12.7 lb |
| Weight with reaction arm | 13.8 lb |
| Free Speed | 15 rpm |
| 6s Torque scatter % | ±4 % |
| Max torque in forward | 664 ft.lbf |
| Max torque reverse | 664 ft.lbf |
| Min torque in forward | 221 ft.lbf |
| Recommended Torque | 531 ft.lbf |
| Torque Control System | Shut-off-current control |
| Adjustment | Digital |
| Handle type | Pistol |
| Joint Type | Hard & Soft |
| Main Material type | Steel |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Reaction bar type | Blade included |
| Reversible | Yes |
| Spline type | 0 |
| Starting system | Trigger |
| CP part # | 6151570460 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
