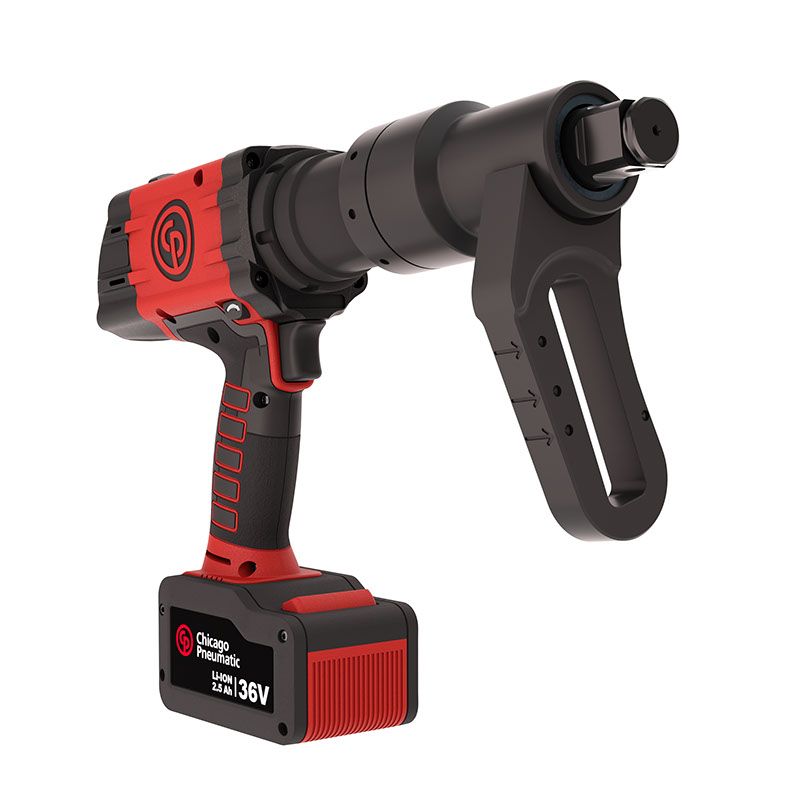

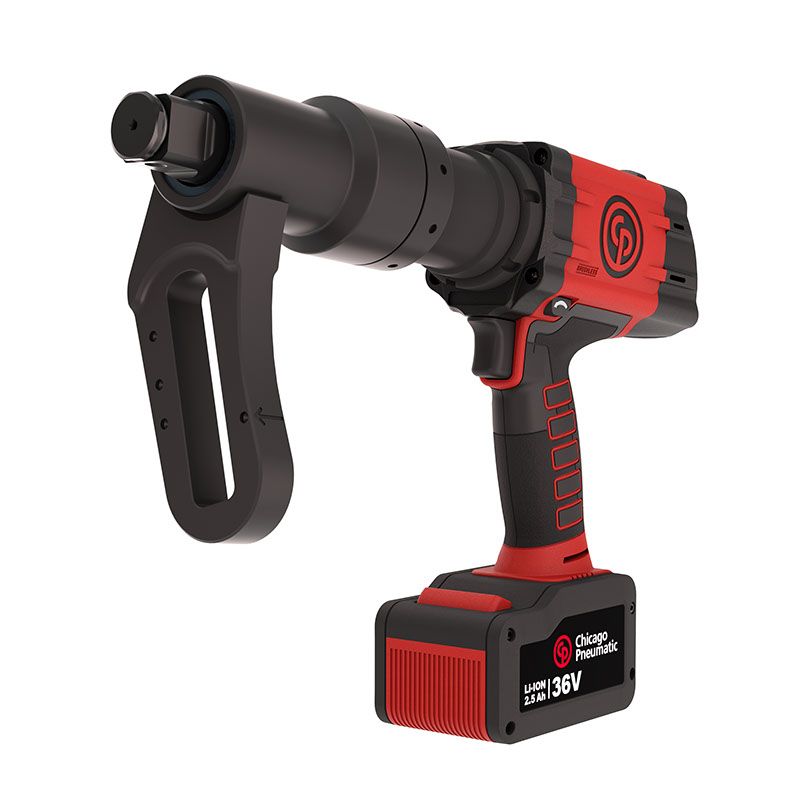

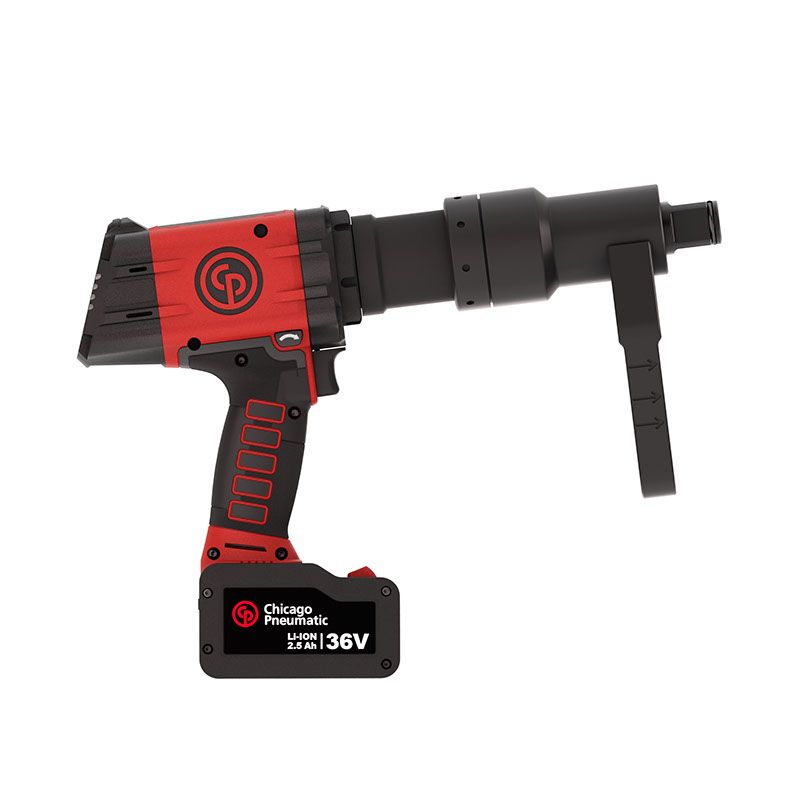

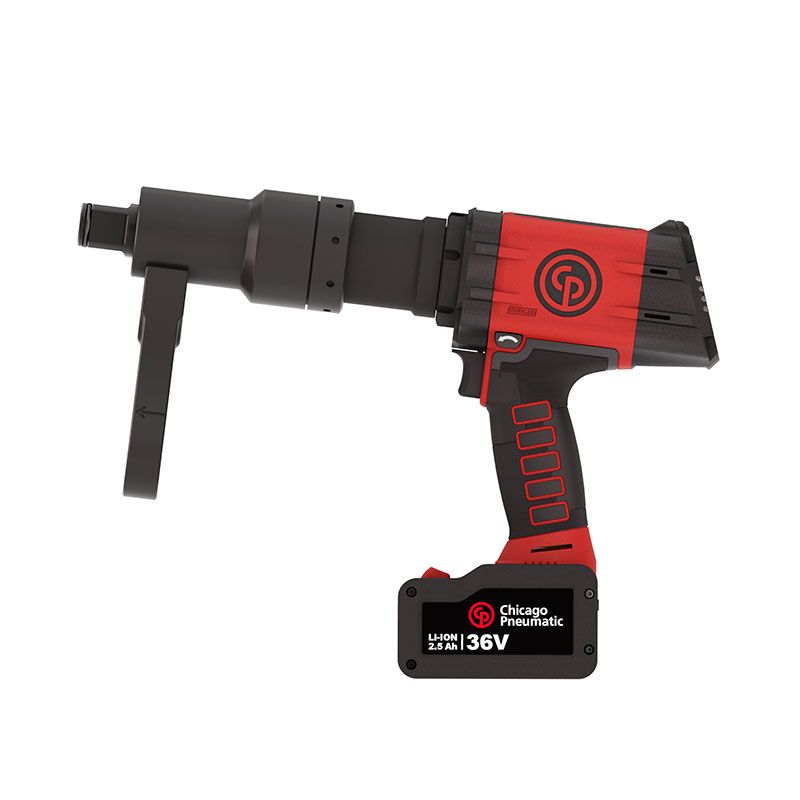

Chicago Pneumatic CP8609C-CT Ebluetork Cup Pack C - 1 Trigger – 6151570570

Description

1" Battery Torque Wrench Connected single trigger - Cup

The CP8609 eBlueTork is a battery-powered torque wrench designed for high precision tightening, boasting a torque range from 300 Nm to 900 Nm with a maximum precision of +/- 4%. It features an intuitive digital display and can be operated via the CPLinQ app, making it ideal for reliable and efficient performance in various tasks.

Features

• High precision tightening (+/- 4%)
• Fast and long-lasting gearbox
• Lightweight and compact battery for mobility
• Automatic release reaction arm
• Intuitive OLED display

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power	<83 dba
Sound Pressure	62 dB(A)
Uncertainty vibration-K	1.8 ft/s²
Vibration	<2.5 m/s²
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height	11.22 in
Length	14.96 in
Width	3.03 in
Power weight ratio	160 Nm/kg
Side to Center	1.32 in
Weight	12.3 lb
Weight without reaction arm	12.3 lb
Free Speed	15 rpm
6s Torque scatter %	±4 %
Max torque in forward	664 ft.lbf
Max torque reverse	664 ft.lbf
Min torque in forward	221 ft.lbf
Recommended Torque	531 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size	1 in
Output drive type	Sq
Output retainer type	Dual
Reaction bar type	Sliding drive
Reversible	Yes
Starting system	Trigger
Suspension option	Optional
CP part #	6151570570

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
