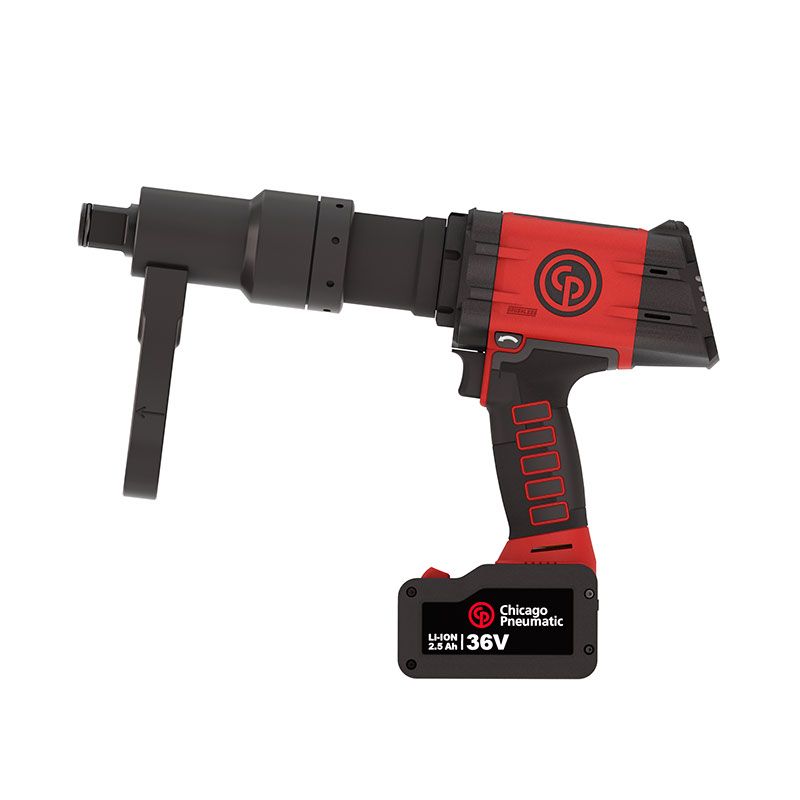

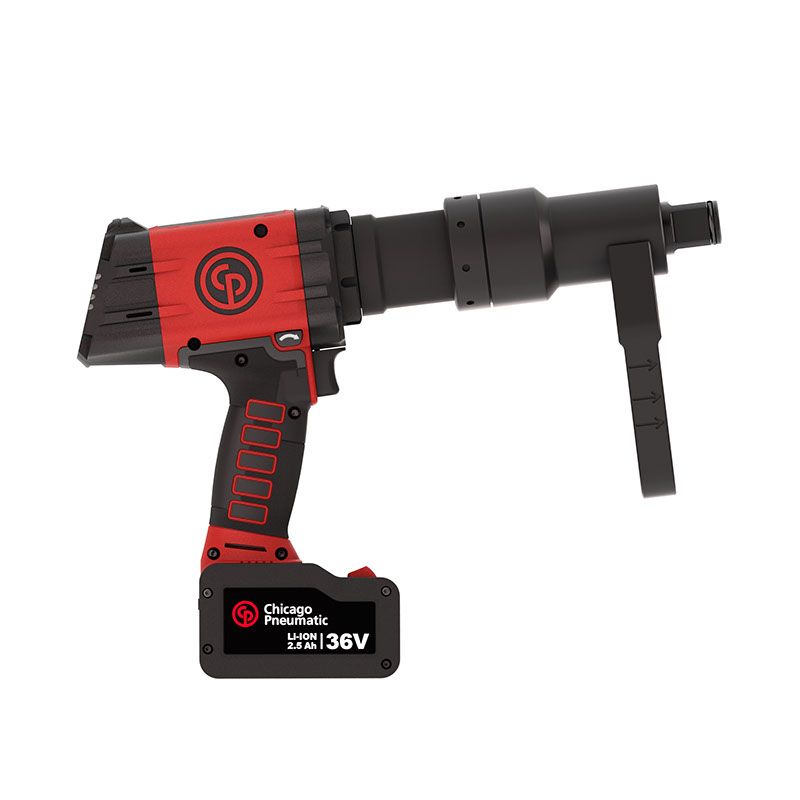

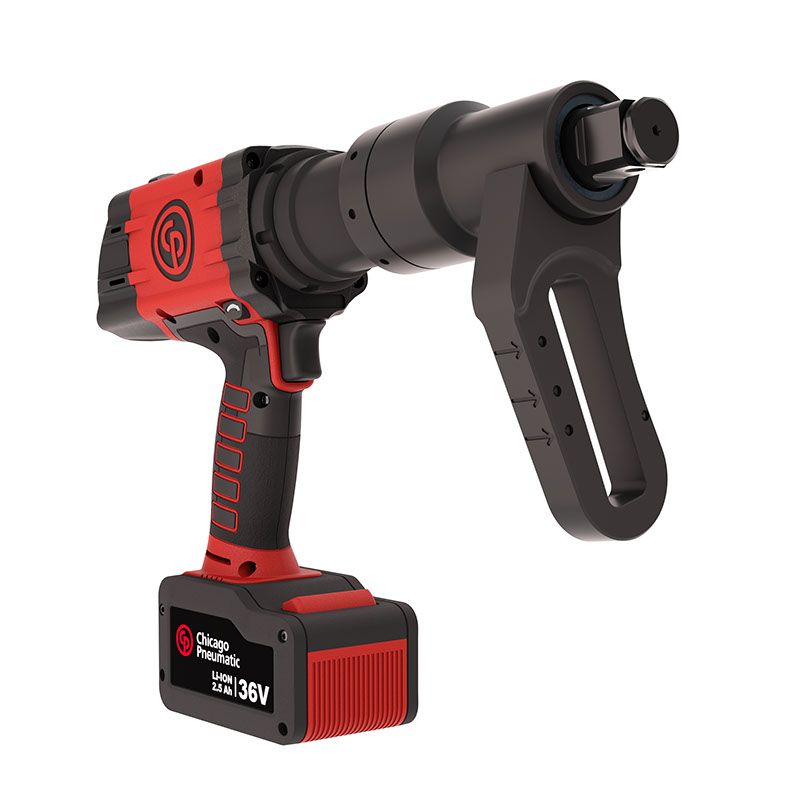

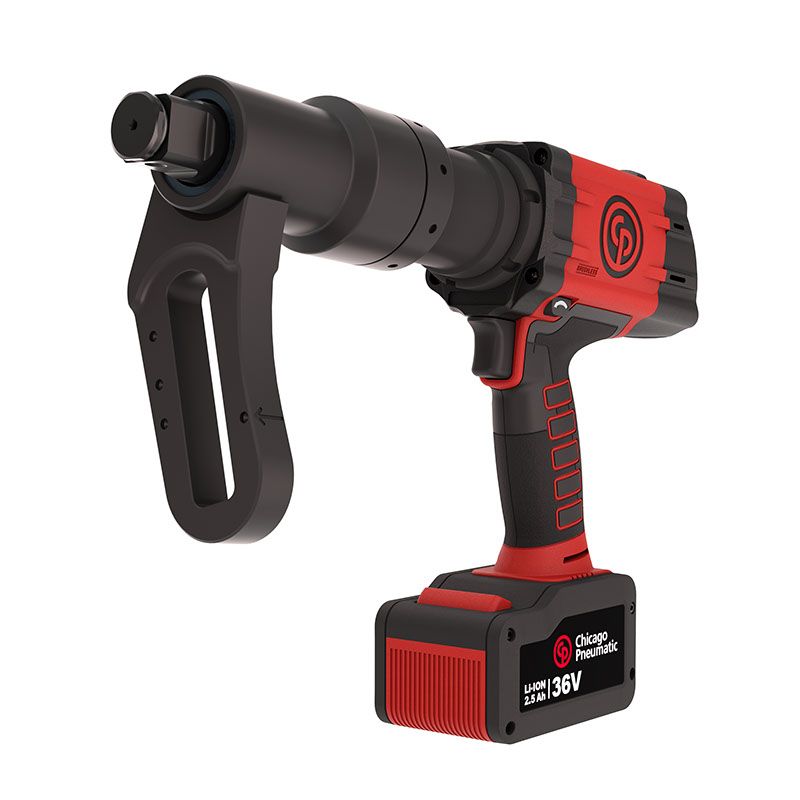

Chicago Pneumatic CP8609C-C Ebluetork Cup Pack C – 6151570740

Description

1" Battery Torque Wrench Connected dual trigger - Cup

CP8609 eBlueTork with standard Cup reaction arm (Cup available separately as accessory). Torque tightening from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%) and angle tightening. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.

Features

• High precision (+/- 4%) for safe tightening
• Fast and long-lasting gearbox dedicated to wheel tightening
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications

Battery Capacity	2.5 Ah
Battery Type	Lithium-ion
Battery Voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<83
Sound Pressure	62 dB(A)
Uncertainty vibration-K	1.8 ft/s²
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height (H)	11.22 in
Length (L)	14.96 in
Width (W)	3.03 in
Power Weight Ratio	160 Nm/kg
Side to Center	1.32 in
Weight	12.3 lb
Weight without Reaction Arm	12.3 lb
Free Speed	15 rpm
6s Torque Scatter %	±4 %
Max Torque in Forward	664 ft.lbf
Max Torque Reverse	664 ft.lbf
Min Torque in Forward	221 ft.lbf
Recommended Torque	531 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle Type	Pistol
Joint Type	Hard & Soft
Main Material Type	Steel
Output Drive Size (in)	1
Output Drive Type	Sq
Output Retainer Type	Dual
Reaction Bar Type	Sliding drive
Reversible	Yes
Spline Type	0
Starting System	Double-trigger
Suspension Option	Optional
CP part #	6151570740

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
