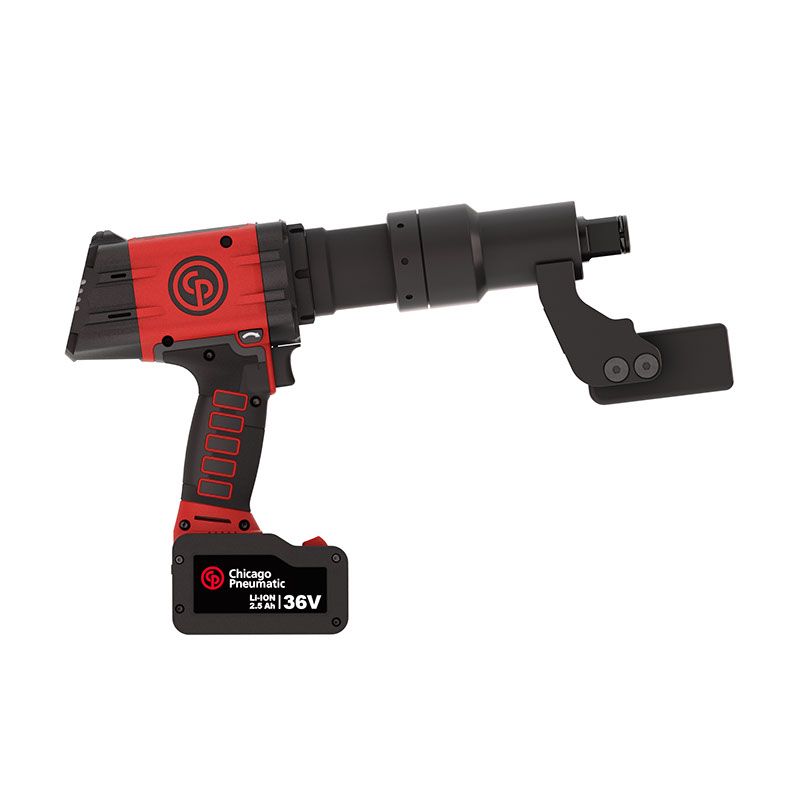

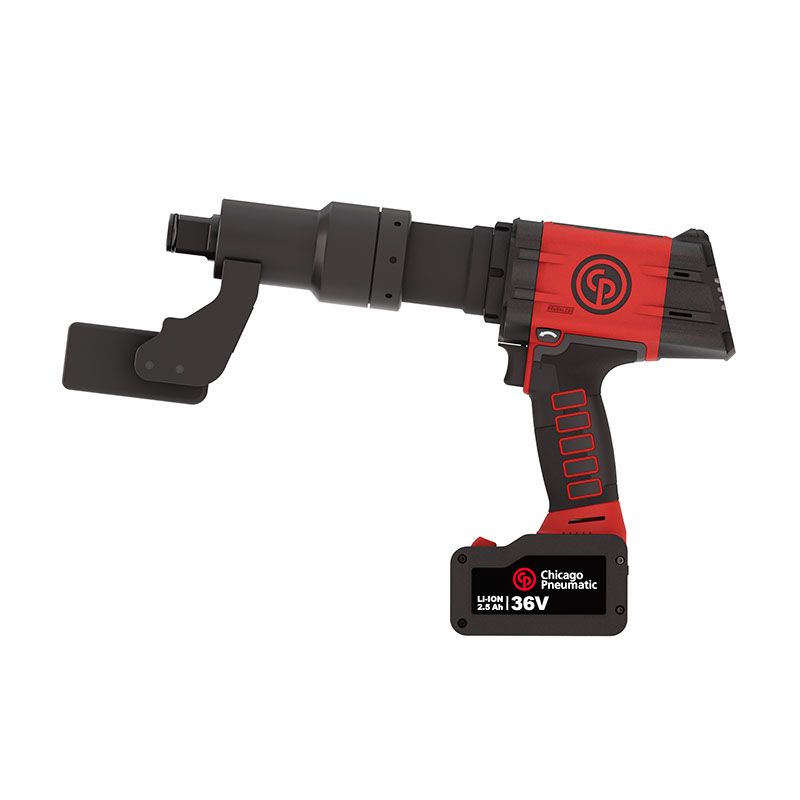

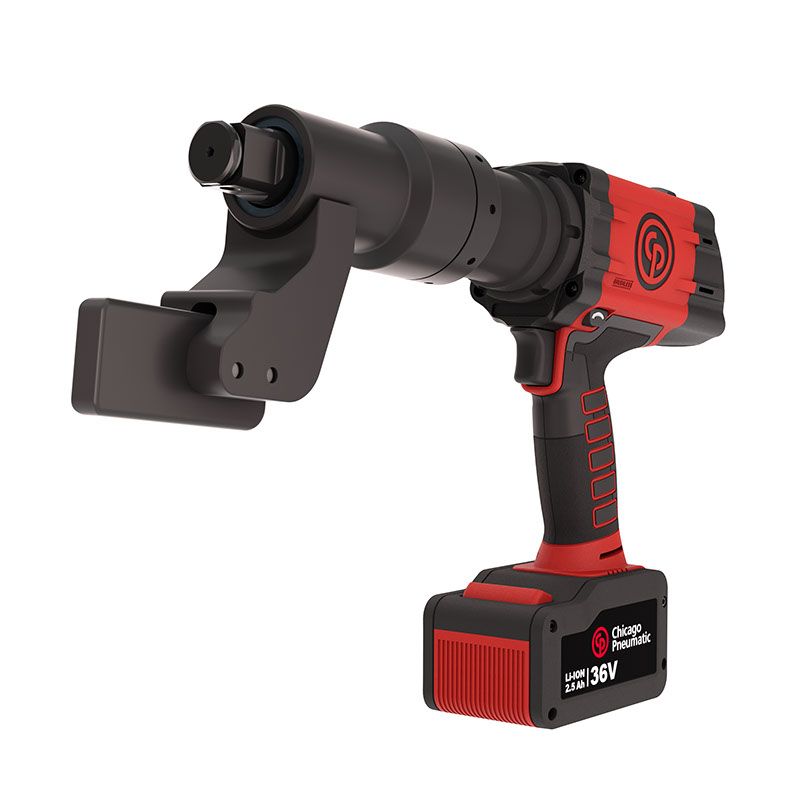

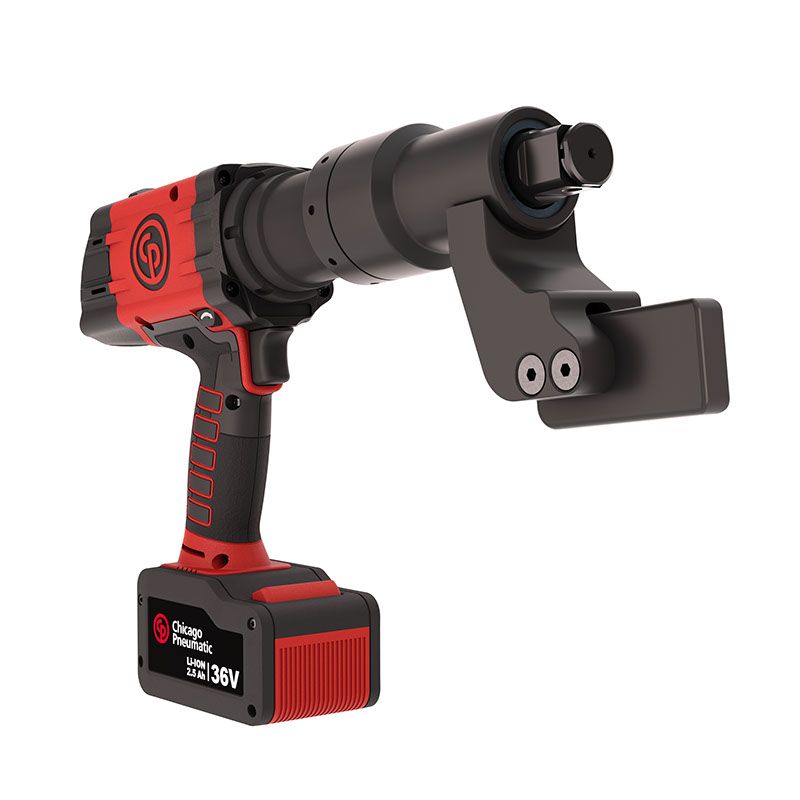

Chicago Pneumatic CP8609C-BT Ebluetork Blade Pack C - 1 Trigger – 6151570450

Description

1" Battery Torque Wrench Connected single trigger - Blade

The CP8609 eBlueTork is a powerful battery torque wrench that provides high precision torque tightening from 300 Nm to 900 Nm with easy handling through a digital interface. It comes with two batteries and a charger, ensuring mobility and efficiency in your projects.

Features

• Battery torque wrench
• High precision (+/- 4%) for safe tightening

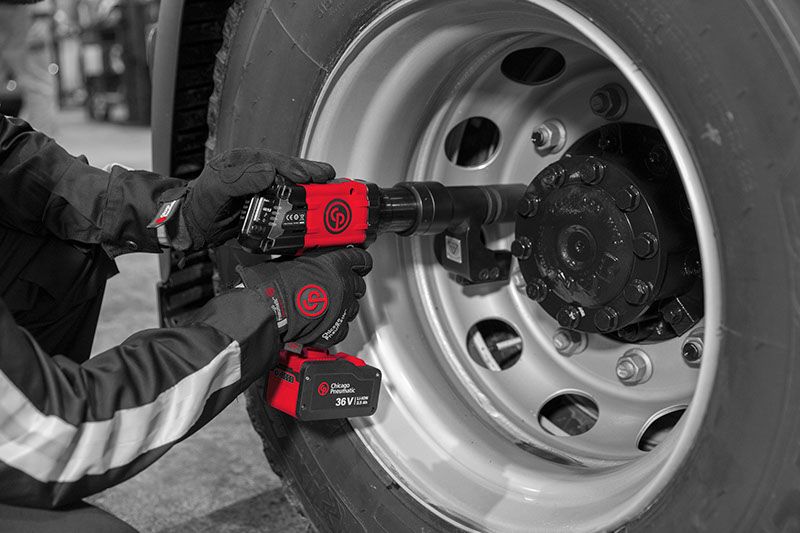

• Fast and long-lasting gearbox dedicated to wheel tightening
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling via OLED Digital screen or CPLinQ app

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<83
Sound Pressure	62 dB(A)
Uncertainty vibration-K	1.8 ft/s²
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height (H)	11.22 in
Length (L)	14.96 in
Width (W)	3.03 in
Power weight ratio	150 Nm/kg
Side to Center	1.32 in
Weight	12.7 lb
Weight without reaction arm	12.7 lb
Weight with reaction arm	13.8 lb
Free Speed	15 rpm
6s Torque scatter %	±4 %
Max torque in forward	664 ft.lbf
Max torque reverse	664 ft.lbf
Min torque in forward	221 ft.lbf
Recommended Torque	531 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Dual
Reaction bar type	Blade included
Reversible	Yes
Spline type	0
Starting system	Trigger
CP part #	6151570450
