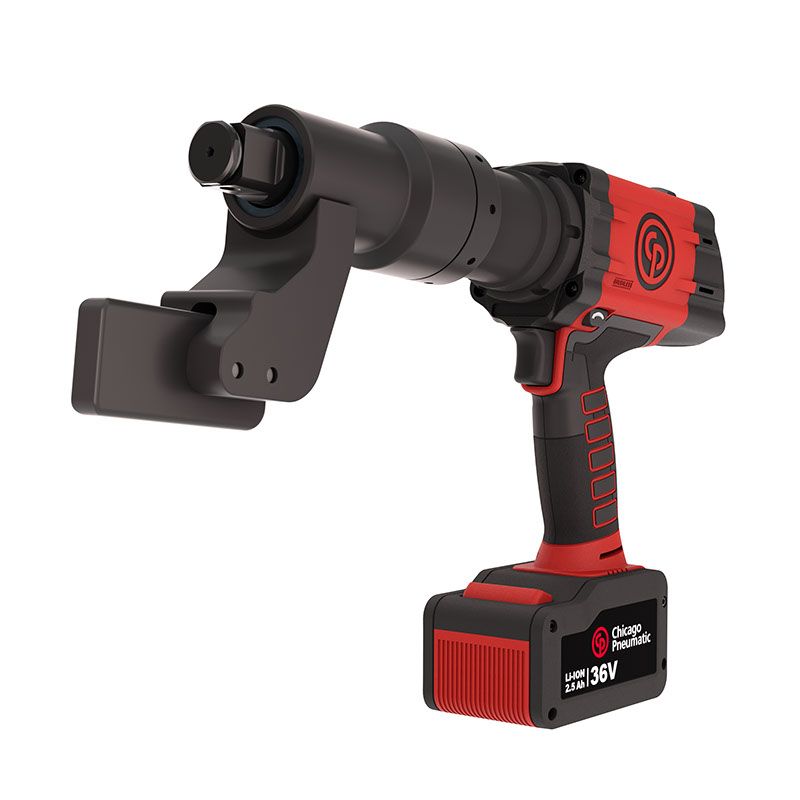

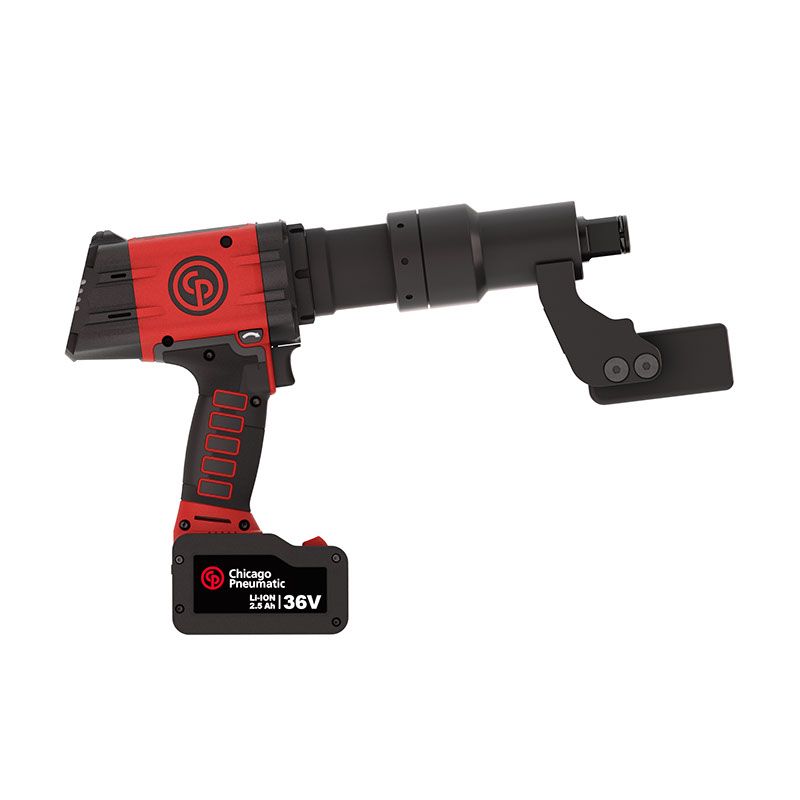

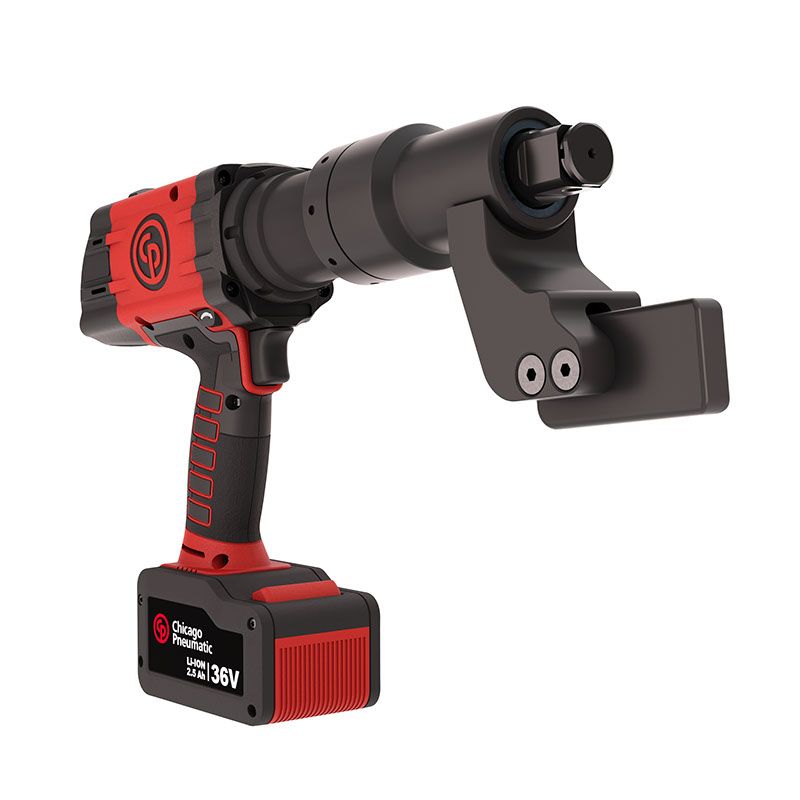

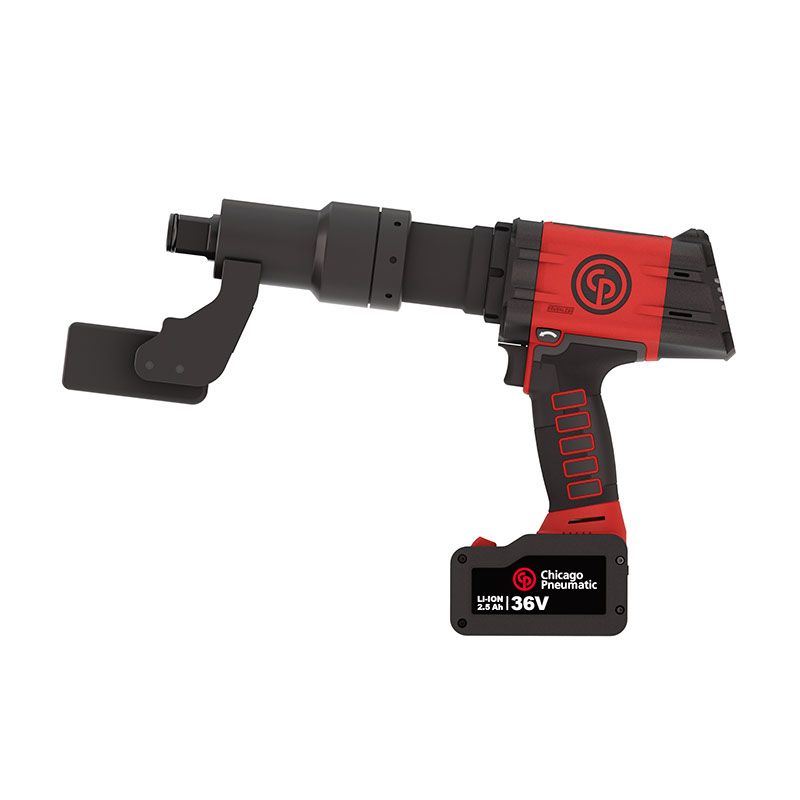

Chicago Pneumatic CP8609C-B Ebluetork Blade Pack C – 6151570510

Description

1" Battery Torque Wrench Connected dual trigger - Blade

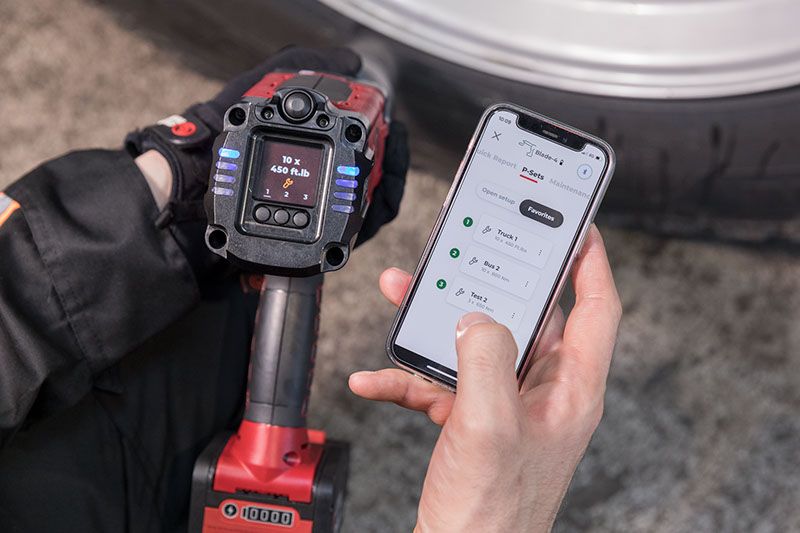

CP8609 eBlueTork with Blade reaction arm. Torque tightening from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app.

Features

• Battery torque wrench
• Digital handling via CPLinQ app
• High precision (+/- 4%)
• Lightweight and compact battery
• Automatic release reaction arm

Specifications

Battery Capacity	2.5 Ah
Battery Type	Lithium-ion
Battery Voltage	36 V
Max Operating Temperature	140 ºF
Max Recommended Charging Temperature	113 ºF
Min Operating Temperature	32 ºF
Min Recommended Charging Temperature	32 ºF
Sound Power	<83 dba
Sound Pressure	62 dB(A)
Vibration Uncertainty	1.8 ft/s²
Vibration	<2.5 m/s²
Max Storage Temperature	140 ºF
Min Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height	11.22 in
Length	14.96 in
Width	3.03 in
Power Weight Ratio	150 Nm/kg
Weight	12.7 lb
Max Torque Forward	664 ft.lbf
Max Torque Reverse	664 ft.lbf
Min Torque Forward	221 ft.lbf
Recommended Torque	531 ft.lbf
CP part #	6151570510

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
