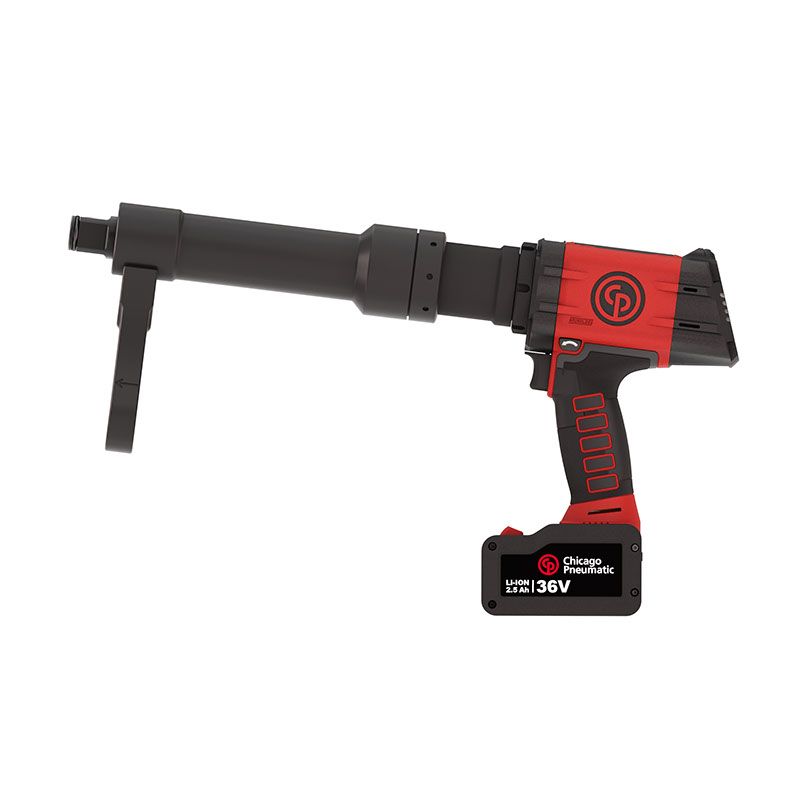

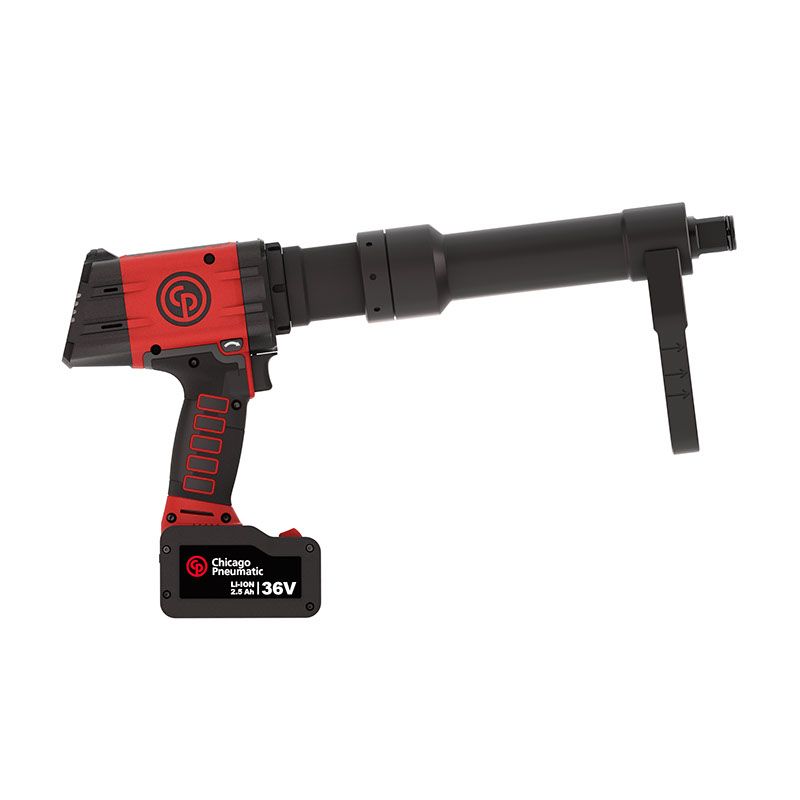

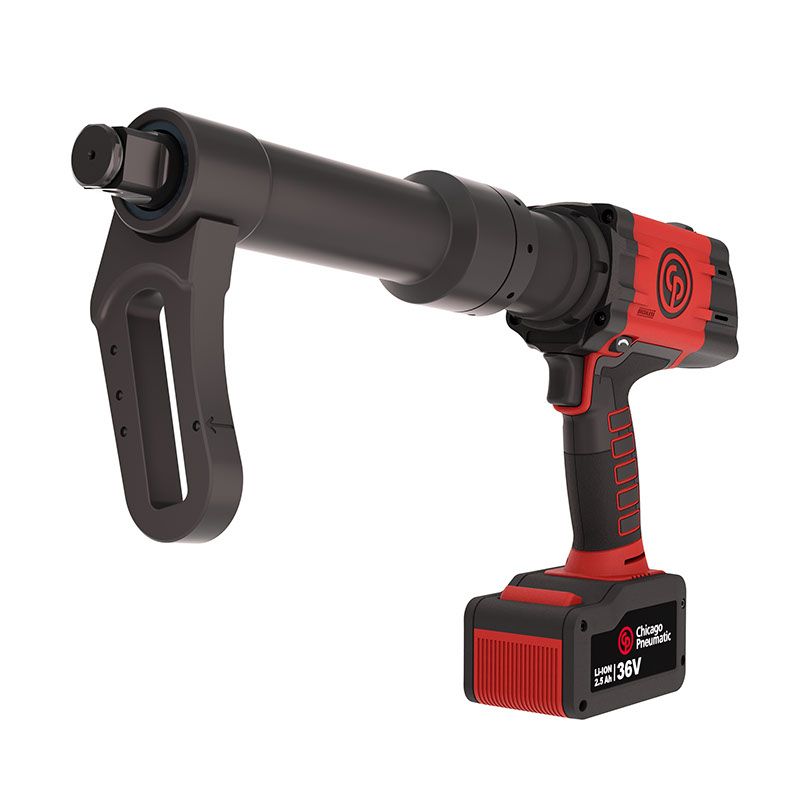

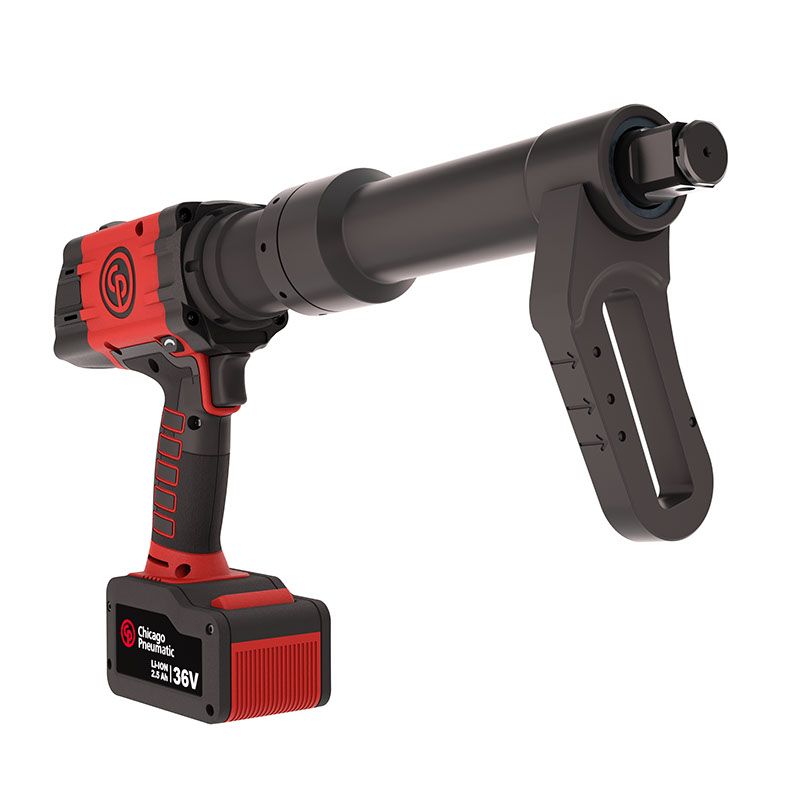

Chicago Pneumatic CP8609-xC Ebluetork Extended Cup β 6151570780
1" Battery Torque Wrench dual trigger - extended Cup
CP8609 eBlueTork with extended Cup reaction arm (Cup available separately). Torque tightening from 300 Nm / 220 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package.
Features
- High precision (+/- 4%) for safe tightening
- Fast and long-lasting gearbox dedicated to wheel tightening
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen or via CPLinQ app
Specifications
| Battery Capacity | 2.5 Ah |
| Battery Type | Lithium-ion |
| Battery Voltage | 36 V |
| Max Ambient Operating Temperature | 140 ΒΊF |
| Max Recommended Ambient Charging Temperature | 113 ΒΊF |
| Min Ambient Operating Temperature | 32 ΒΊF |
| Min Recommended Ambient Charging Temperature | 32 ΒΊF |
| Sound Power (dba) | <83 |
| Sound Pressure | 62 dB(A) |
| Weight | 15.2 lb |
| Max Torque in Forward | 664 ft.lbf |
| Min Torque in Forward | 221 ft.lbf |
| Free Speed | 15 rpm |
| CP part # | 6151570780 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1β2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570780
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
