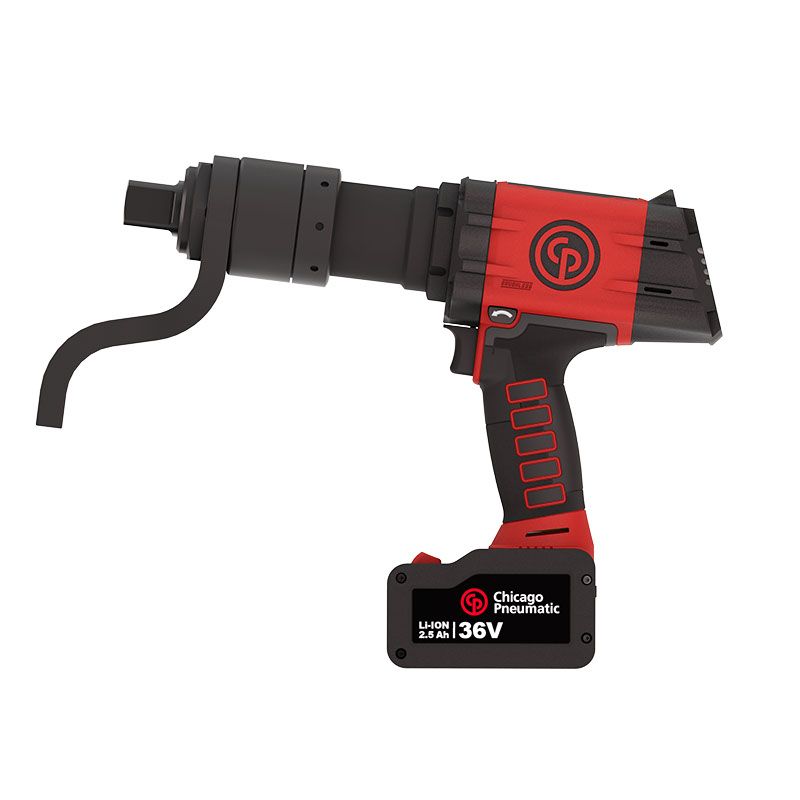

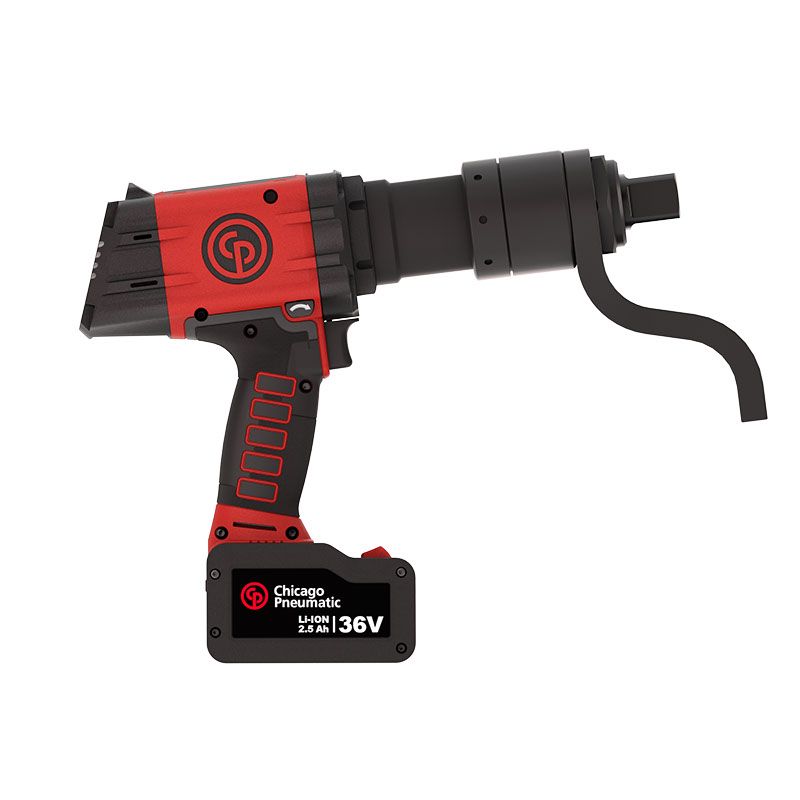

Chicago Pneumatic CP8609 Pack 36V 2.5AH – 6151571120

Description

1" Battery Torque Wrench dual trigger

Torque tightening from 250 Nm / 185 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case.

Features

• High precision with +/- 4%
• Safe tightening with second start button as standard
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications

Battery Capacity	2.5 Ah
Battery Type	Lithium-ion
Battery Voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<83
Sound Pressure	58 dB(A)
Uncertainty Vibration-K	1.8 ft/s²
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height	11.22 in
Length	13.43 in
Width	3.03 in
Power Weight Ratio	180 Nm/kg
Side to Center	1.32 in
Weight	9.26 lb
Weight without Reaction Arm	9.26 lb
Weight with Reaction Arm	10.7 lb
Free Speed	15 rpm
Max Torque in Forward	664 ft.lbf
Max Torque Reverse	664 ft.lbf
Min Torque in Forward	184 ft.lbf
Recommended Torque	531 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle Type	Pistol
Joint Type	Hard & Soft
Main Material Type	Steel
Output Drive Size	1 in
Output Drive Type	Sq
Output Retainer Type	Hole
Reaction Bar Type	S-type
Reversible	Yes
Suspension Option	Optional
CP part #	6151571120
