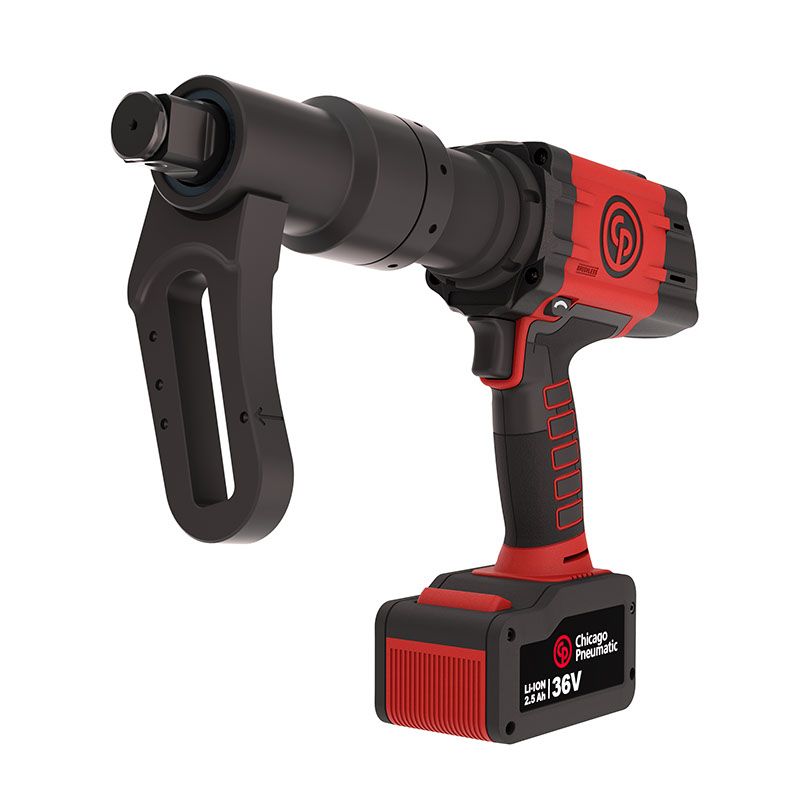

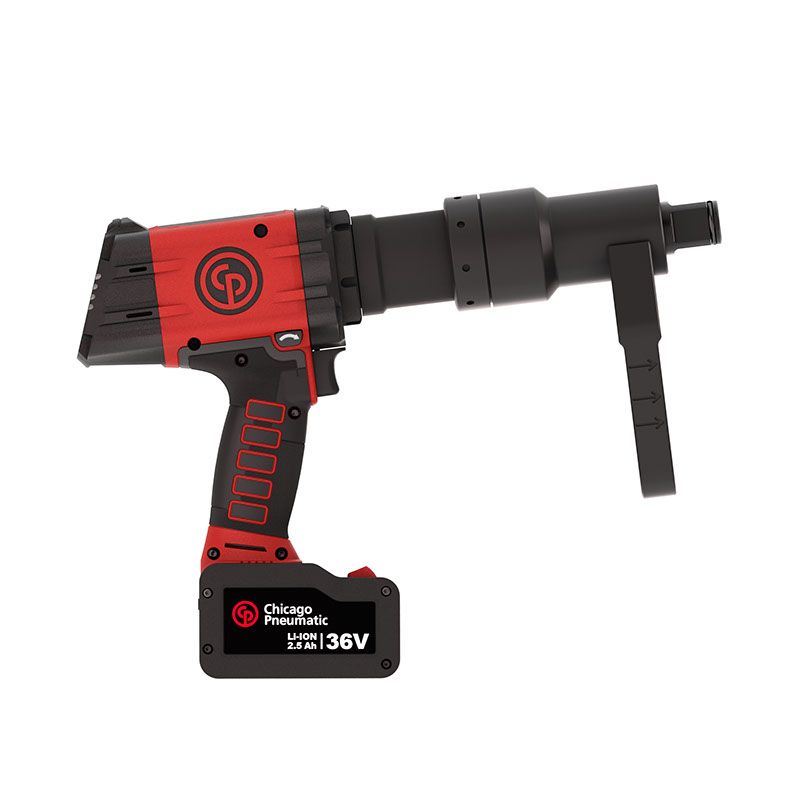

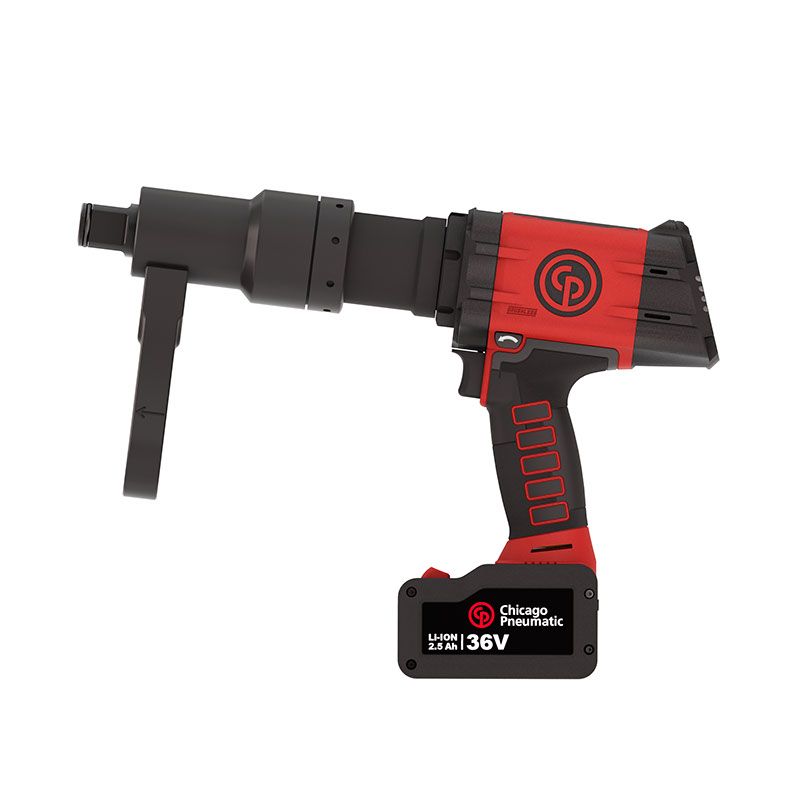

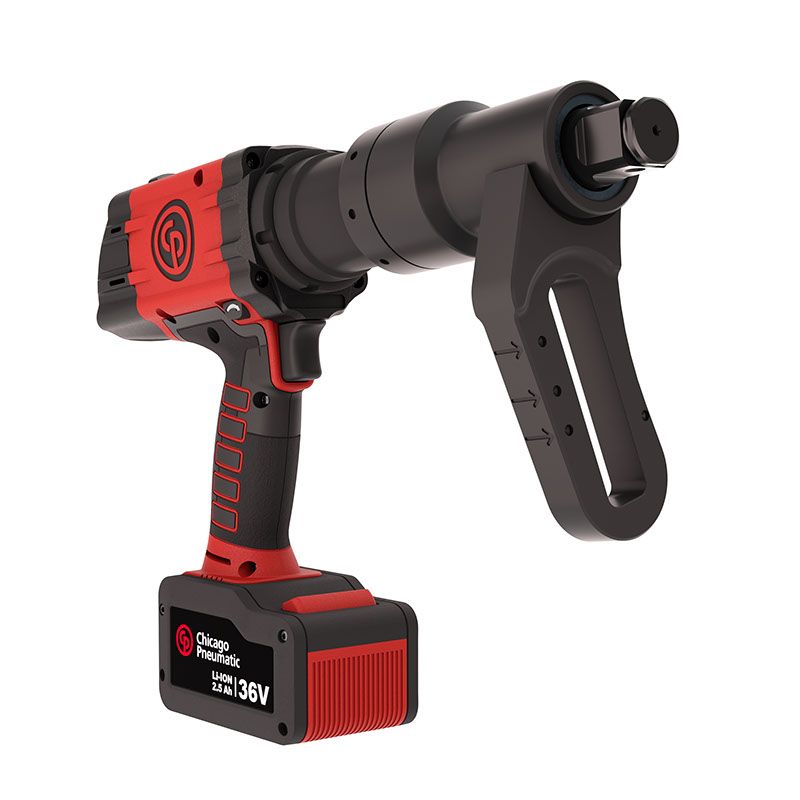

Chicago Pneumatic CP8609-C Ebluetork Cup – 6151570730

Description

1" Battery Torque Wrench dual trigger - Cup

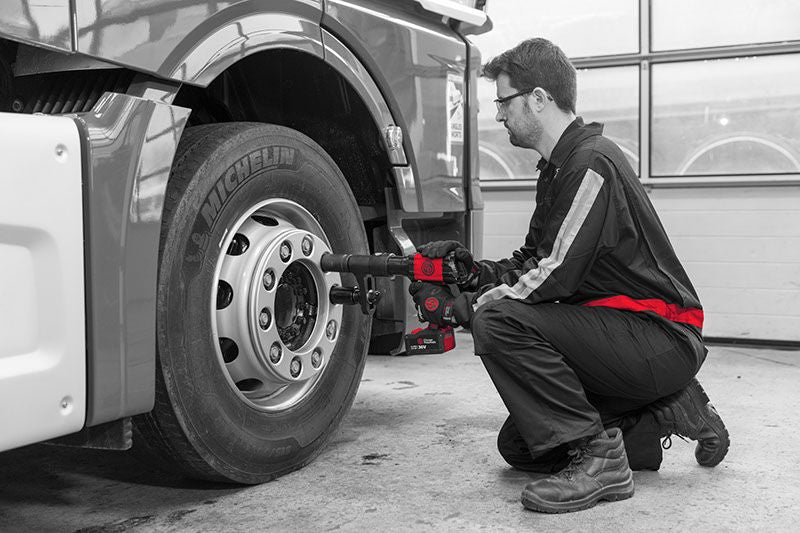

The CP8609 eBlueTork series is a high-precision battery torque wrench designed for easy handling and optimal performance. With torque capabilities ranging from 300 Nm to 900 Nm, it provides reliability for various applications, including automotive wheel tightening.

Features

• High precision (+/- 4%) for safe tightening
• Fast and long-lasting gearbox dedicated to wheel tightening
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<83
Sound Pressure	62 dB(A)
Uncertainty vibration-K	1.8 ft/s²
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height (H)	11.22 in
Length (L)	14.96 in
Width (W)	3.03 in
Power weight ratio	160 Nm/kg
Side to Center	1.32 in
Weight	12.3 lb
Weight without reaction arm	12.3 lb
Free Speed	15 rpm
6s Torque scatter %	±4 %
Max torque in forward	664 ft.lbf
Max torque reverse	664 ft.lbf
Min torque in forward	221 ft.lbf
Recommended Torque	531 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Dual
Reaction bar type	Sliding drive
Reversible	Yes
Starting system	Double-trigger
Suspension option	Optional
CP part #	6151570730

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
