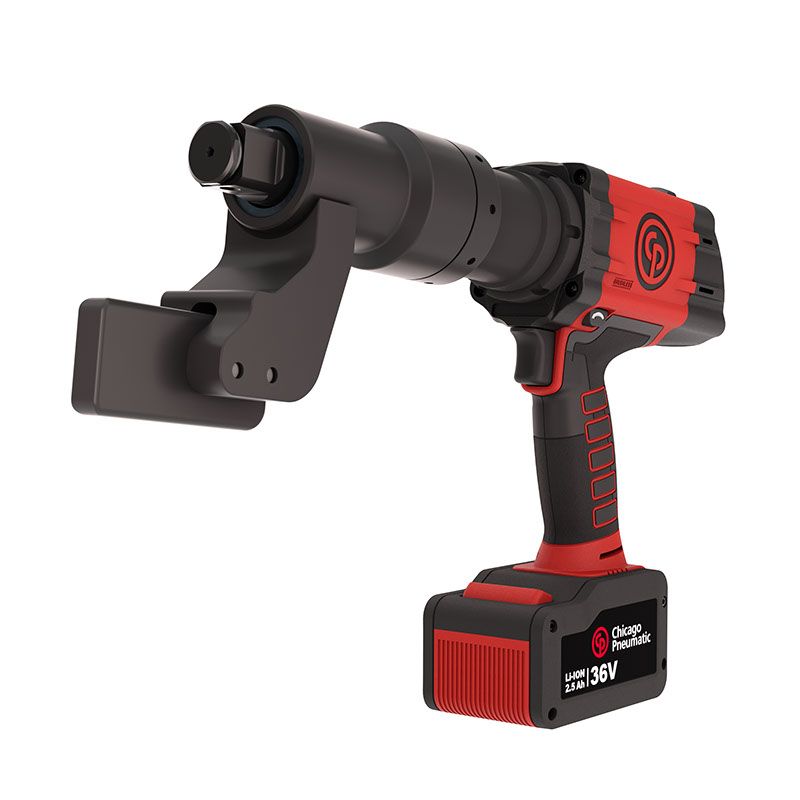

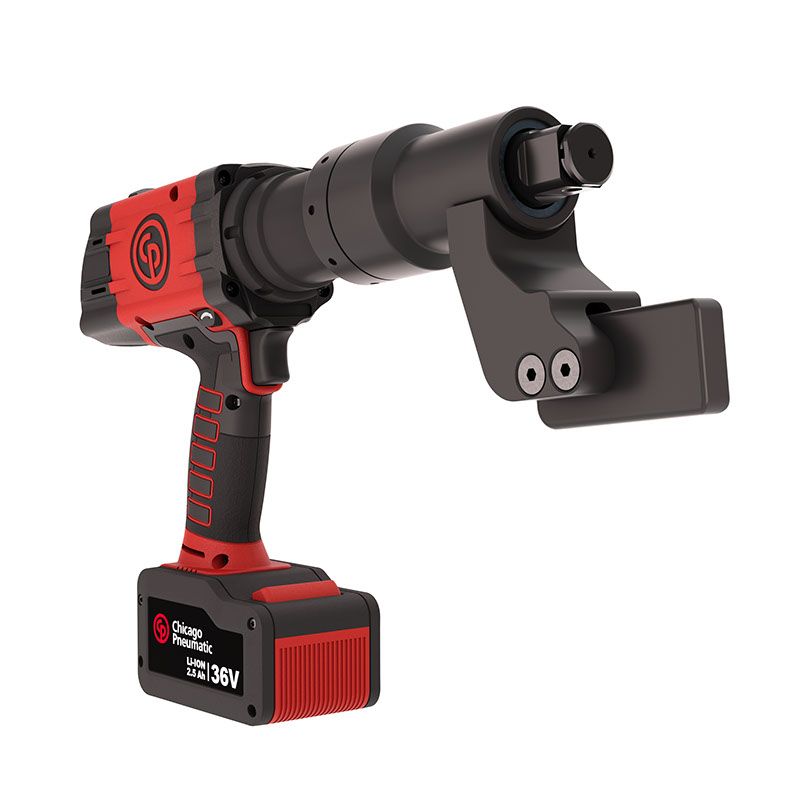

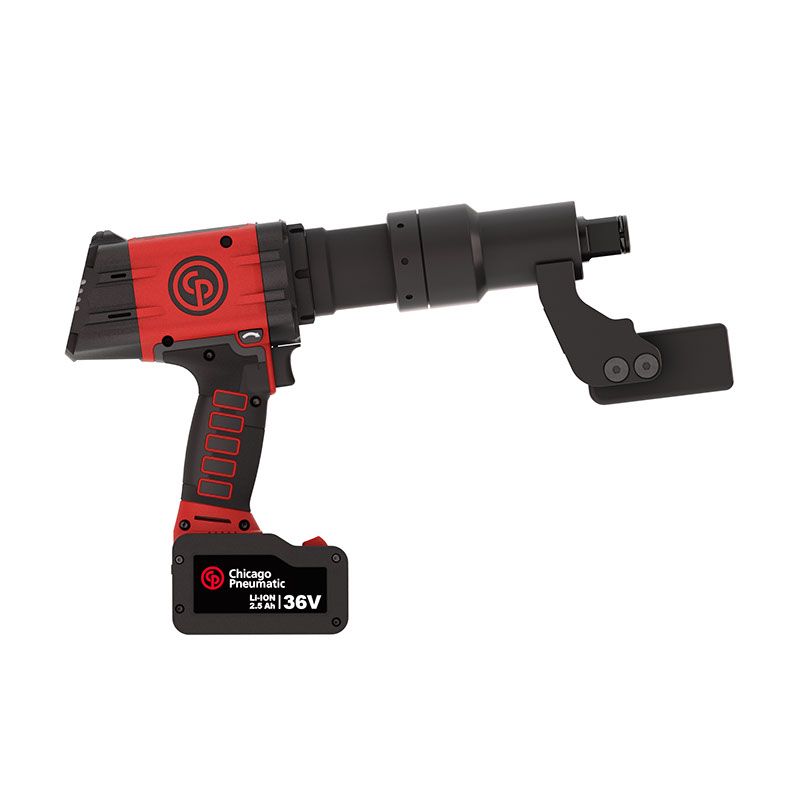

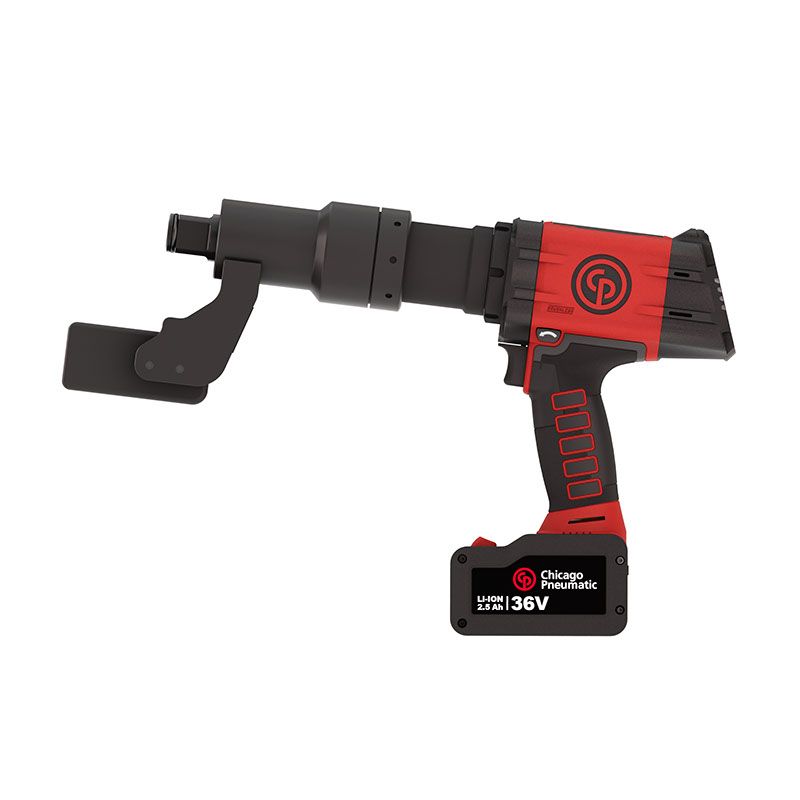

Chicago Pneumatic CP8609-B Ebluetork Blade – 6151570500

Description

1" Battery Torque Wrench dual trigger - Blade

The CP8609 eBlueTork series is a battery torque wrench designed for precision tightening from 300 Nm to 900 Nm, featuring a digital screen for intuitive handling and eligibility for CP Care maintenance.

Features

• High precision (+/- 4%) for safe tightening
• Fast and long-lasting gearbox dedicated to wheel tightening
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<83
Sound Pressure	62 dB(A)
Uncertainty vibration-K	1.8 ft/s²
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height (H)	11.22 in
Length (L)	14.96 in
Width (W)	3.03 in
Power weight ratio	150 Nm/kg
Side to Center	1.32 in
Weight	12.7 lb
Weight without reaction arm	12.7 lb
Weight with reaction arm	13.8 lb
Free Speed	15 rpm
6s Torque scatter %	±4 %
Max torque in forward	664 ft.lbf
Max torque reverse	664 ft.lbf
Min torque in forward	221 ft.lbf
Recommended Torque	531 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	1
Output drive type	Sq
Output retainer type	Dual
Reaction bar type	Blade included
Reversible	Yes
Spline type	0
Starting system	Double-trigger
CP part #	6151570500

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
