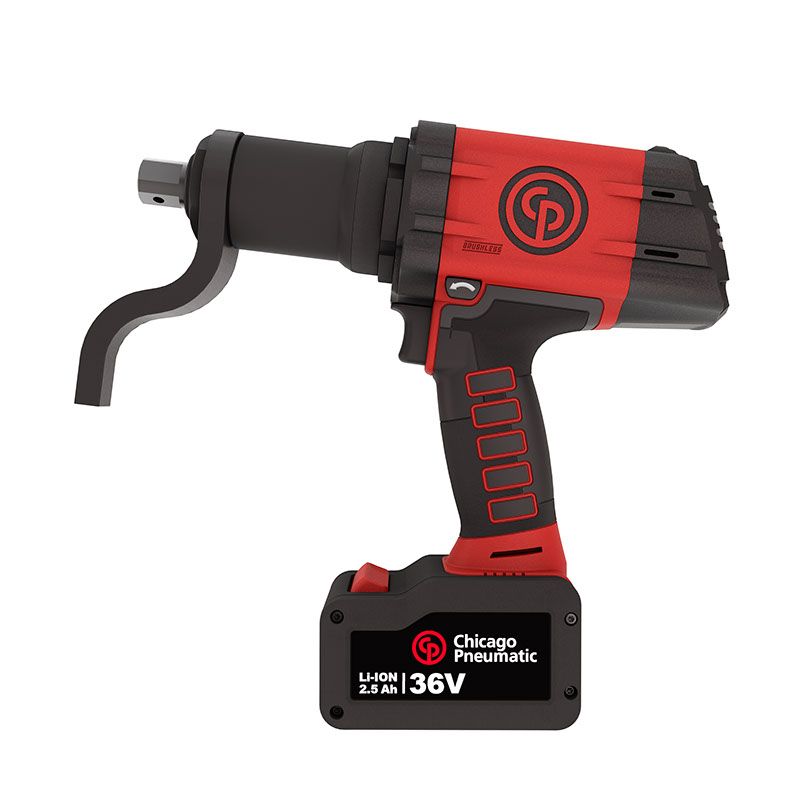

Chicago Pneumatic CP8603TC Pack 36V 2.5AH – 6151570410

Description

3/4" Battery Torque Wrench Torque Check dual trigger

The CP8603TC PACK 36V 2.5AH offers torque tightening and torque check from 70 Nm / 50 ft.lb to 325 Nm / 240 ft.lb with high precision (+/- 4%). It includes features for angle tightening, counting sequence, and an intuitive handling experience via digital screen or CPLinQ app for data collection. Pack includes necessary accessories for optimal performance and reliability.

Features

• High precision with +/- 4%
• Safe tightening with second start button as standard
• Extended mobility with lightweight and compact battery
• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<72
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height (H)	11.22 in
Length (L)	14.29 in
Width (W)	3.03 in
Weight	6.39 lb
Max torque in forward	240 ft.lbf
Max torque reverse	240 ft.lbf
Min torque in forward	51.6 ft.lbf
Recommended Torque	192 ft.lbf
Torque Control System	Shut-off-current control
Adjustments	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	3/4
Output drive type	Sq
Output retainer type	Hole
Reaction bar type	S-type
Reversible	Yes
Starting system	Double-trigger
Suspension option	Optional
CP part #	6151570410

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
