Chicago Pneumatic CP8603TC BARE TOOL Air Tool – 6151570900

Description

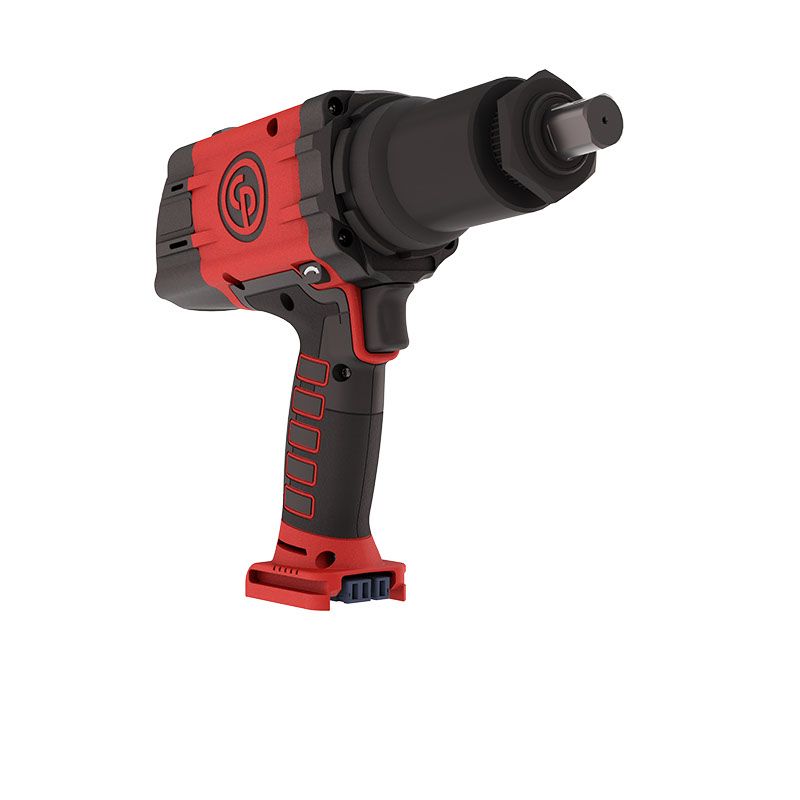

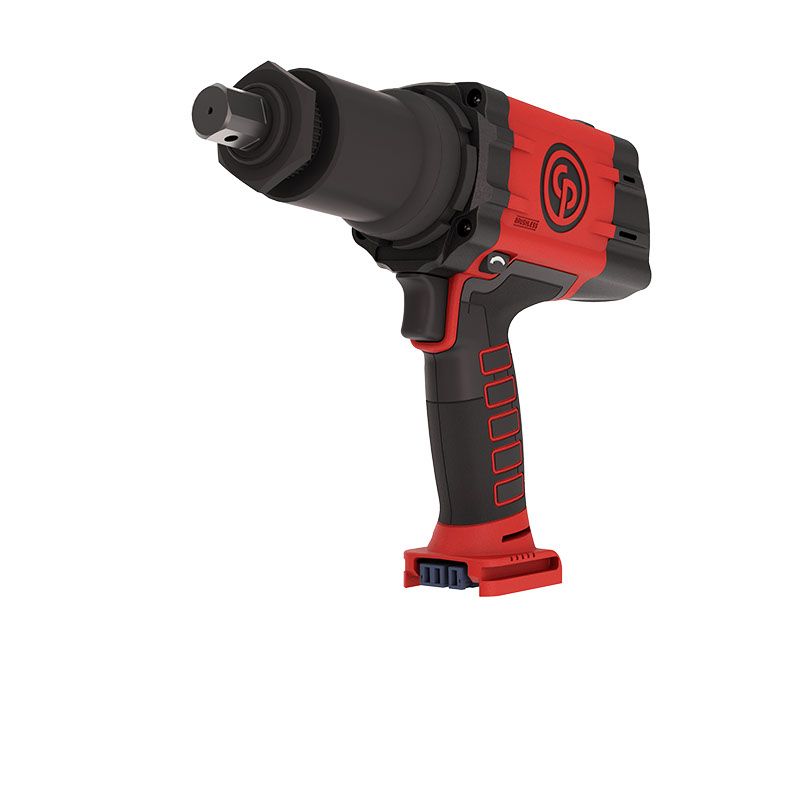

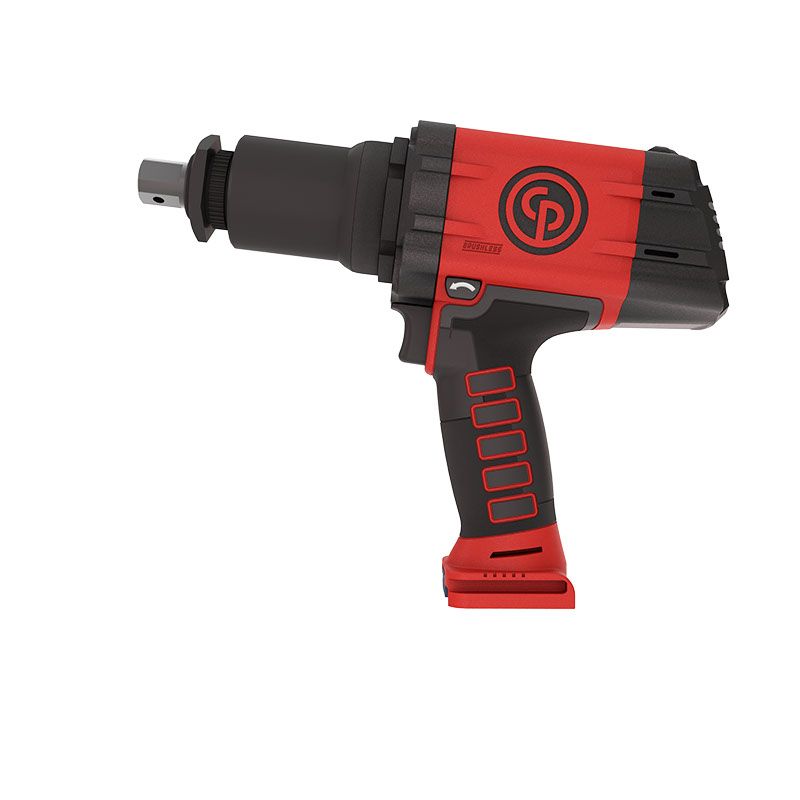

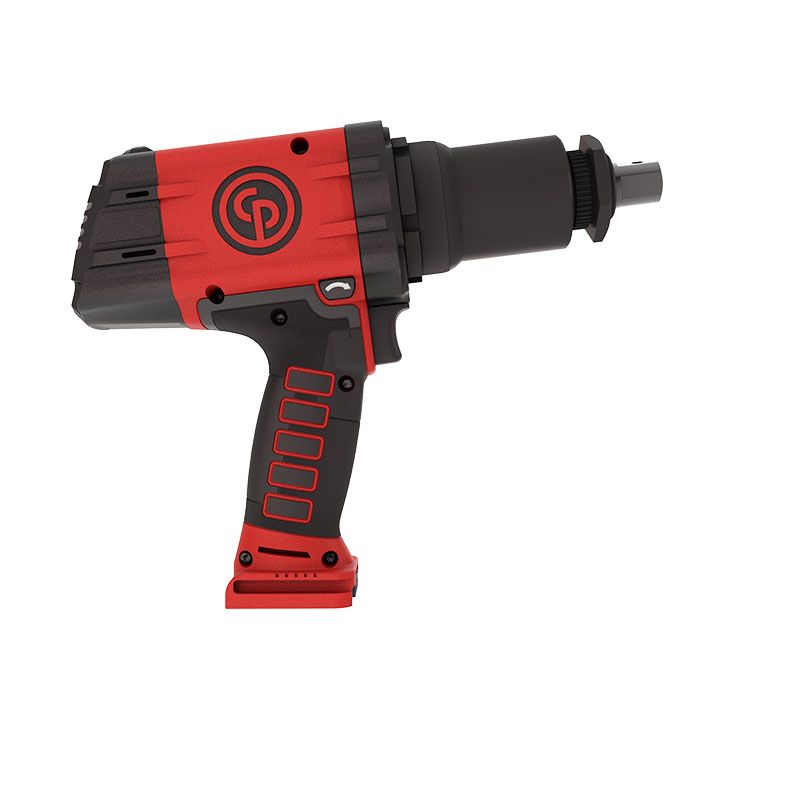

3/4" Battery Torque Wrench with dual trigger - tool only

The CP8603TC is a battery-powered torque wrench offering torque tightening and checking from 70 Nm to 325 Nm with high precision. It features intuitive handling via a digital screen or the CPLinQ app, ensuring data collection for traceability. Included with the tool is eligibility for CP Care, which supports preventive maintenance like calibration for optimal performance.

Features

• CPLinQ app for better control
• Angle tightening
• Counting sequence to avoid missed tightenings
• Torque Check to control bolt loosening over time
• Automatic reaction arm release

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power (dba)	<72
Vibration (m/s²)	<2.5
Max Ambient Storage Temperature	140 ºF
Min Ambient Storage Temperature	-4 ºF
Battery Weight	1.76 lb
Height (H)	11.22 in
Length (L)	14.29 in
Width (W)	3.03 in
Power weight ratio	110 Nm/kg
Weight	6.39 lb
Weight without reaction arm	6.39 lb
Weight with reaction arm	7.28 lb
Free Speed	20 rpm
6s Torque scatter %	±4 %
Max torque in forward	240 ft.lbf
Max torque reverse	240 ft.lbf
Min torque in forward	51.6 ft.lbf
Recommended Torque	192 ft.lbf
Torque Control System	Shut-off-current control
Adjustment	Digital
Handle type	Pistol
Joint Type	Hard & Soft
Main Material type	Steel
Output drive size (in)	3/4
Output drive type	Sq
Output retainer type	Hole
Reversible	Yes
Spline type	0
Starting system	Double-trigger
Suspension option	Optional
CP part #	6151570900

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
