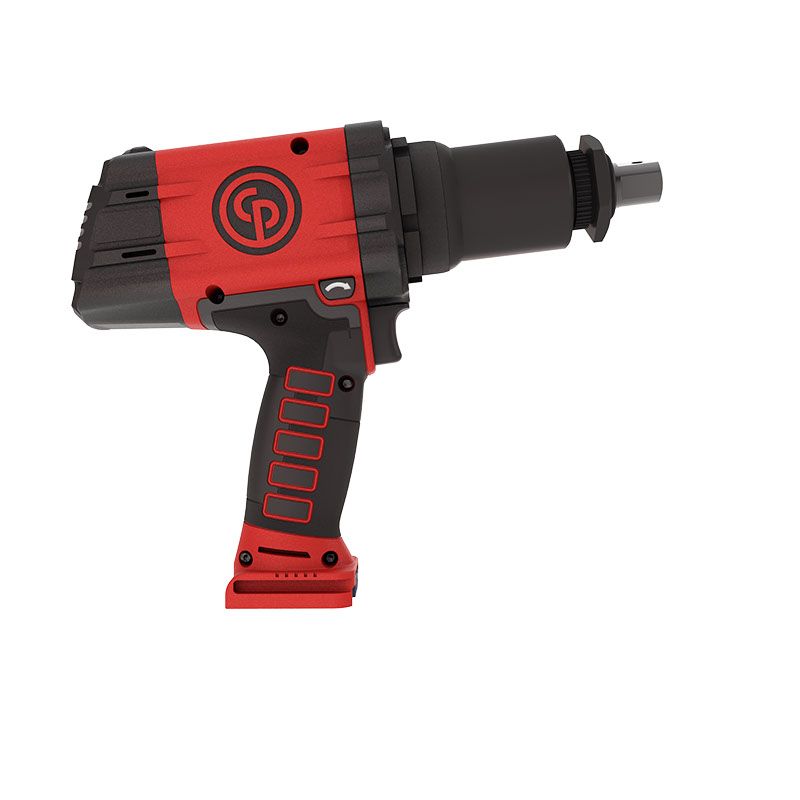

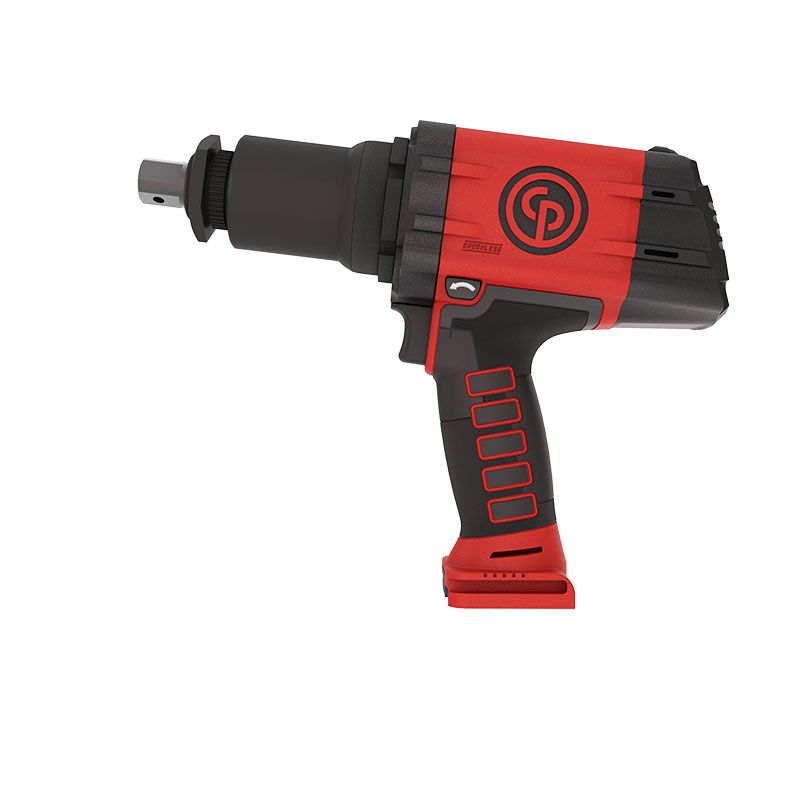

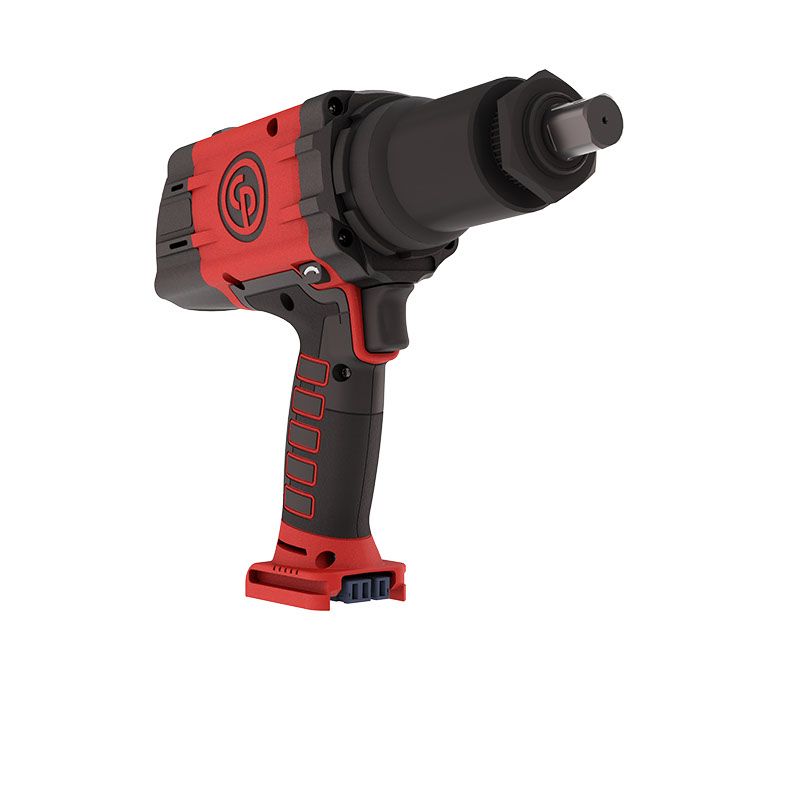

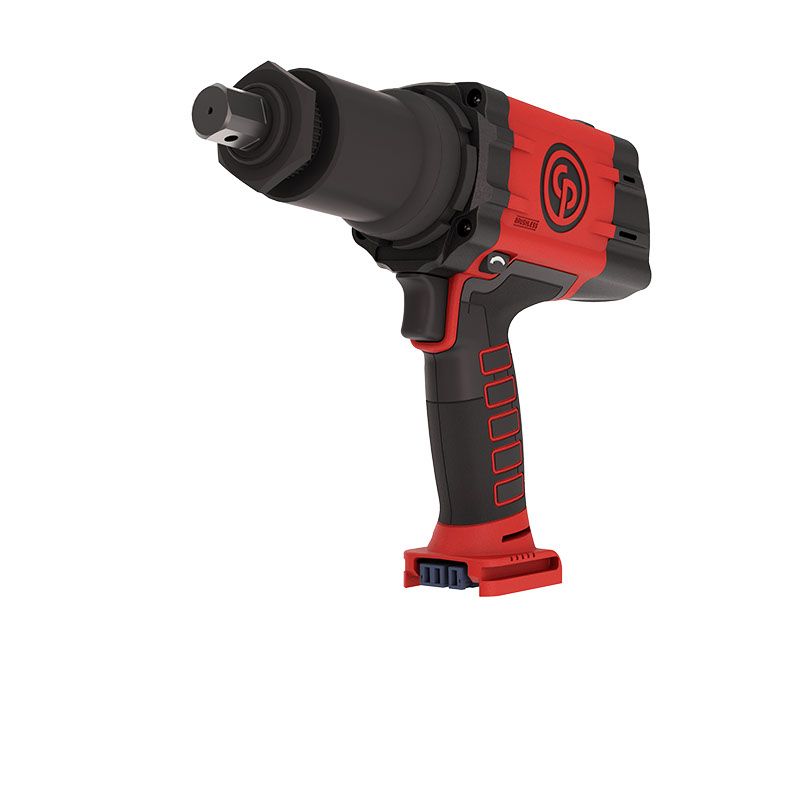

Chicago Pneumatic CP8603CQ BARE TOOL Air Tool – 6151570890

Description

Battery Torque Wrench 3/4" with Dual Trigger - Tool Only

The CP8603CQ BARE TOOL is a premium 3/4" Battery Torque Wrench designed for high precision torque tightening from 70 Nm / 50 ft.lbf to 325 Nm / 240 ft.lbf with a tolerance of +/- 4%. It features an intuitive handling system on a digital screen or via the CPLinQ app for enhanced data collection and traceability.

Features

• CPLinQ app for better control and traceability
• Angle tightening capabilities
• Counting sequence functionality
• Torque Check for bolt loosening control
• Automatic reaction arm release

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Max Ambient Operating Temperature	140 ºF
Max Recommended Ambient Charging Temperature	113 ºF
Min Ambient Operating Temperature	32 ºF
Min Recommended Ambient Charging Temperature	32 ºF
Sound Power	<72 dba
Vibration	<2.5 m/s²
Battery Weight	1.76 lb
Height	11.22 in
Length	14.29 in
Width	3.03 in
Weight	6.39 lb
Free Speed	20 rpm
Max torque in forward	240 ft.lbf
Min torque in forward	51.6 ft.lbf
Recommended Torque	192 ft.lbf
Main Material type	Steel
Output drive size	3/4 in
Reversible	Yes
CP part #	6151570890

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
