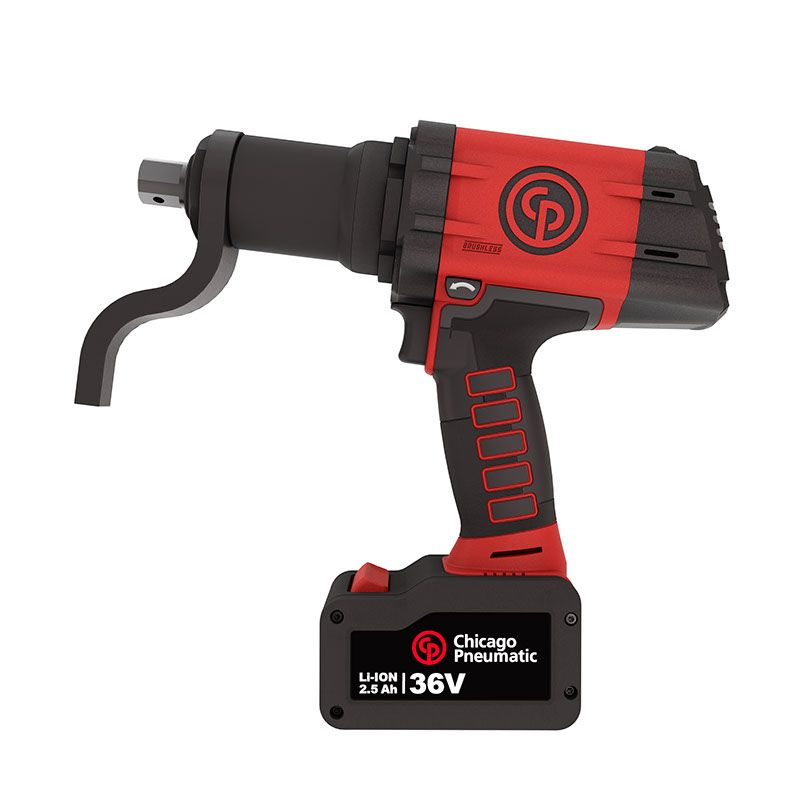

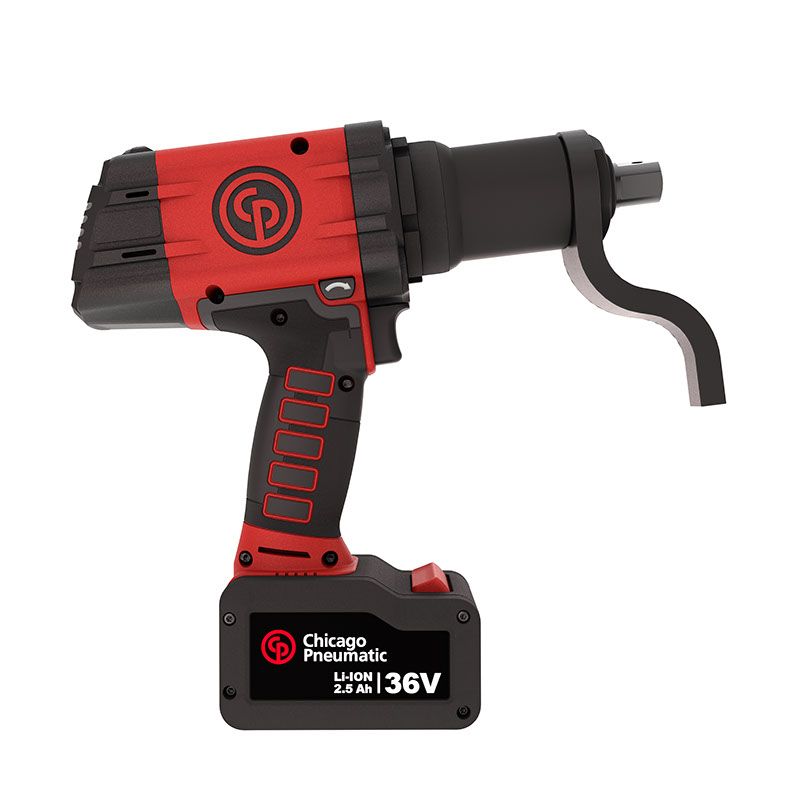

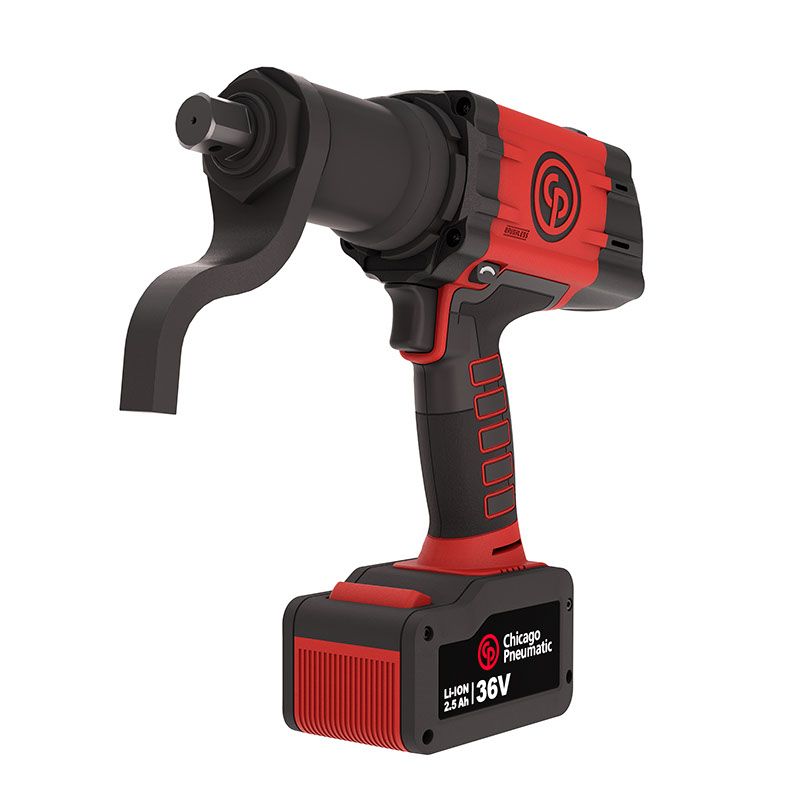

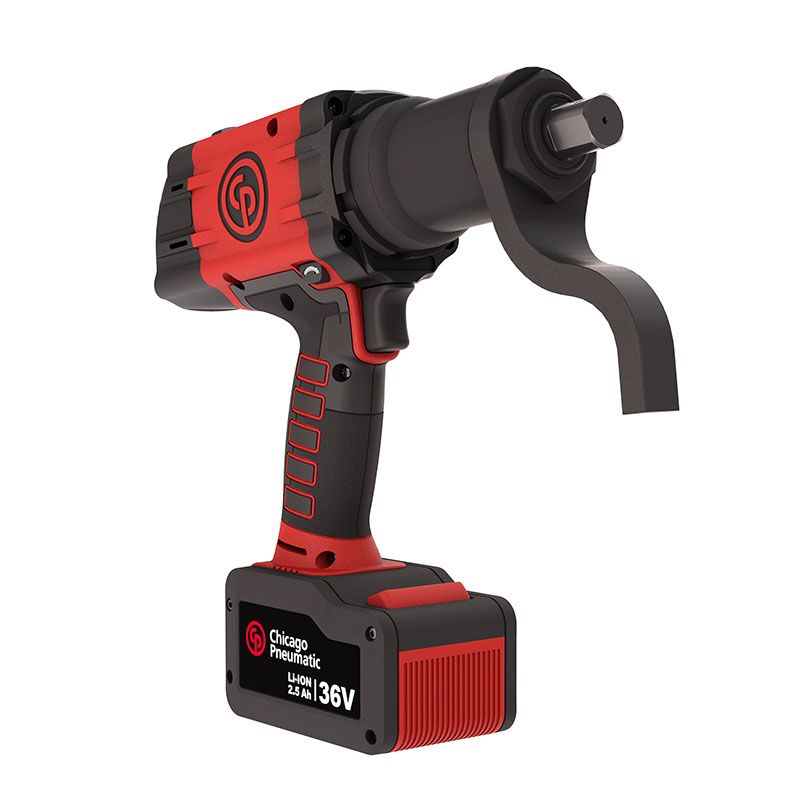

3/4" Battery Torque Wrench dual trigger
Torque tightening from 70 Nm / 50 ft.lb to 325 Nm / 240 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability. Calibration is also available as a standalone service. Contact us to learn more.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm

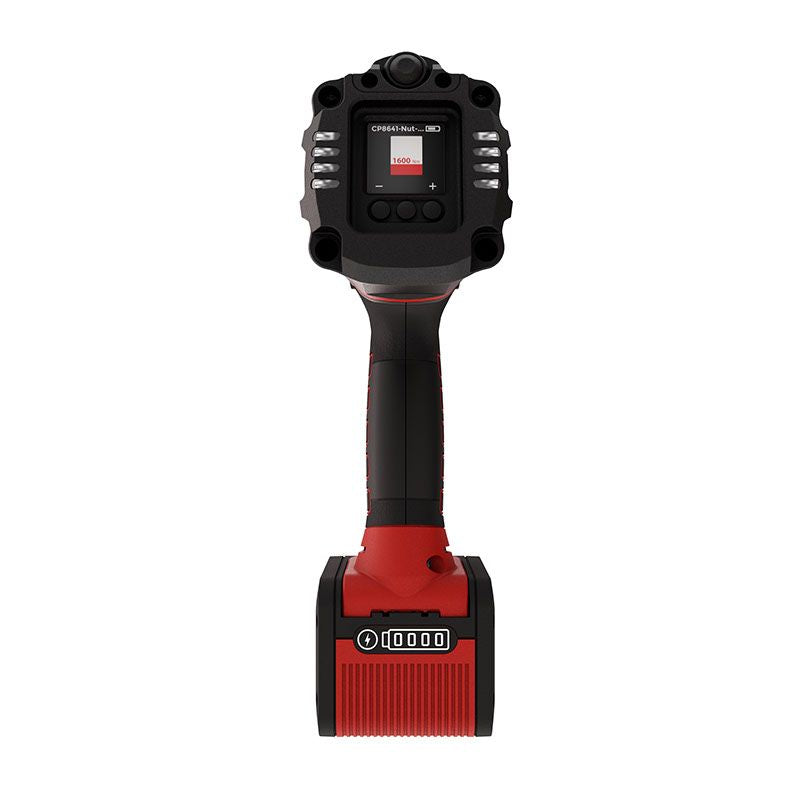

- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Max Ambient Operating Temperature | 140 ºF |
| Max Recommended Ambient Charging Temperature | 113 ºF |
| Min Ambient Operating Temperature | 32 ºF |
| Min Recommended Ambient Charging Temperature | 32 ºF |
| Sound Power (dba) | <72 |
| Vibration (m/s²) | <2.5 |
| Max Ambient Storage Temperature | 140 ºF |
| Min Ambient Storage Temperature | -4 ºF |
| Battery Weight | 1.76 lb |
| Height (H) | 11.22 in |
| Length (L) | 14.29 in |
| Width (W) | 3.03 in |
| Power weight ratio | 110 Nm/kg |
| Weight | 6.39 lb |
| Weight without reaction arm | 6.39 lb |
| Weight with reaction arm | 7.28 lb |
| Free Speed | 20 rpm |
| 6s Torque scatter % | ±4 % |
| Max torque in forward | 240 ft.lbf |
| Max torque reverse | 240 ft.lbf |
| Min torque in forward | 51.6 ft.lbf |
| Recommended Torque | 192 ft.lbf |
| Torque Control System | Shut-off-current control |
| Adjustment | Digital |
| Handle type | Pistol |
| Joint Type | Hard & Soft |
| Main Material type | Steel |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Reaction bar type | S-type |
| Reversible | Yes |
| Spline type | 0 |
| Starting system | Double-trigger |
| Suspension option | Optional |
| CP part # | 6151570380 |
