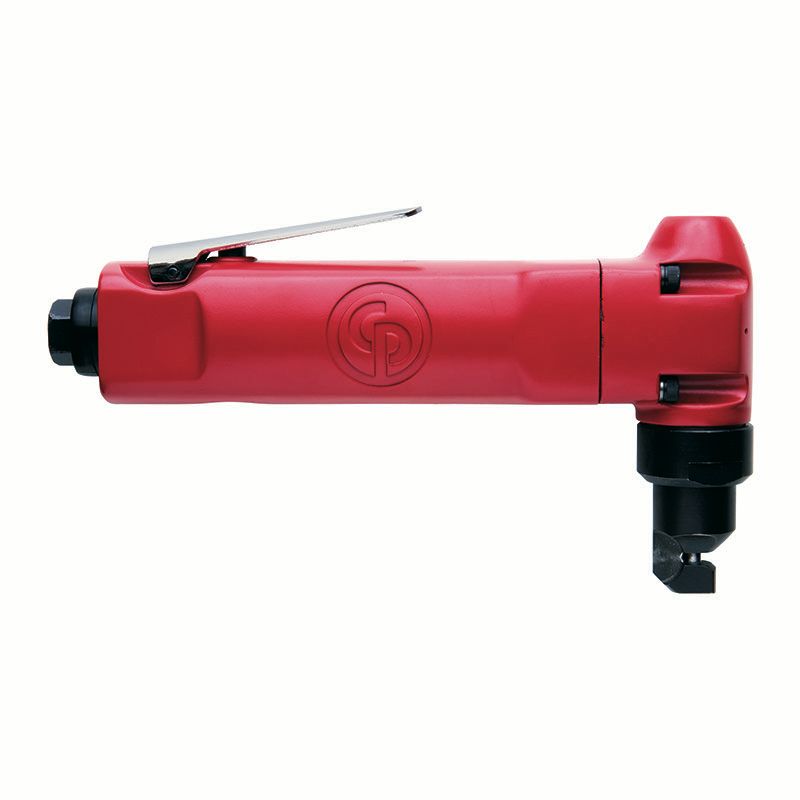

Chicago Pneumatic CP835 Air Nibbler – T022550

Description

Pneumatic nibbler

Designed for general maintenance applications such as cutting tight corners and circles in all types of material like aluminum, steel, tin, and plastic, the CP835 series offers high durability.

Features

• Rugged head with 0.177" diameter punch
• Can cut steel up to 0.060" (16 gauge)
• Can cut aluminum up to .102" (10 gauge)
• Easy access to punch and die for quick replacement
• Lock-off lever for low-speed starting
• 4 optional cutting positions

Specifications

Cutting form	Round
Stroke per minute	2750
Cutting capacity aluminum	0.10001 in
Cutting capacity steel	0.06 in
Length (L)	8.5 in
Punch diameter	0.18 in
Stroke	0.2 in
Weight	1.3 lb
Max power	0.42 hp
Sound Power	97 dB(A)
Sound Pressure	86 dB(A)
Uncertainty vibration-K	9.8 ft/s²
Vibration	17.7 ft/s²
Air consumption at load	17 cfm
Air inlet thread size (in)	1/4
Max dynamic air working pressure	90 psi
Min hose diam (5 m hose length)	10 mm
CP part #	T022550

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
