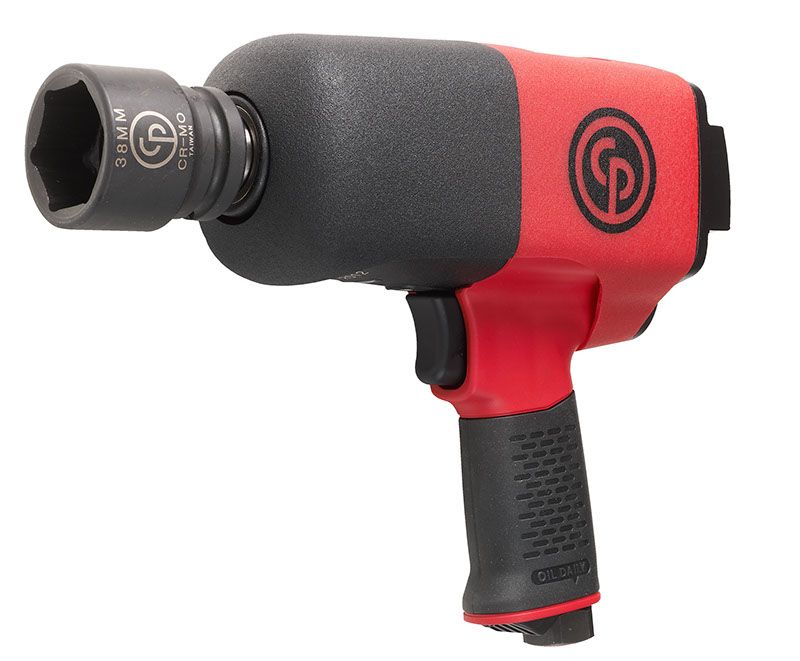

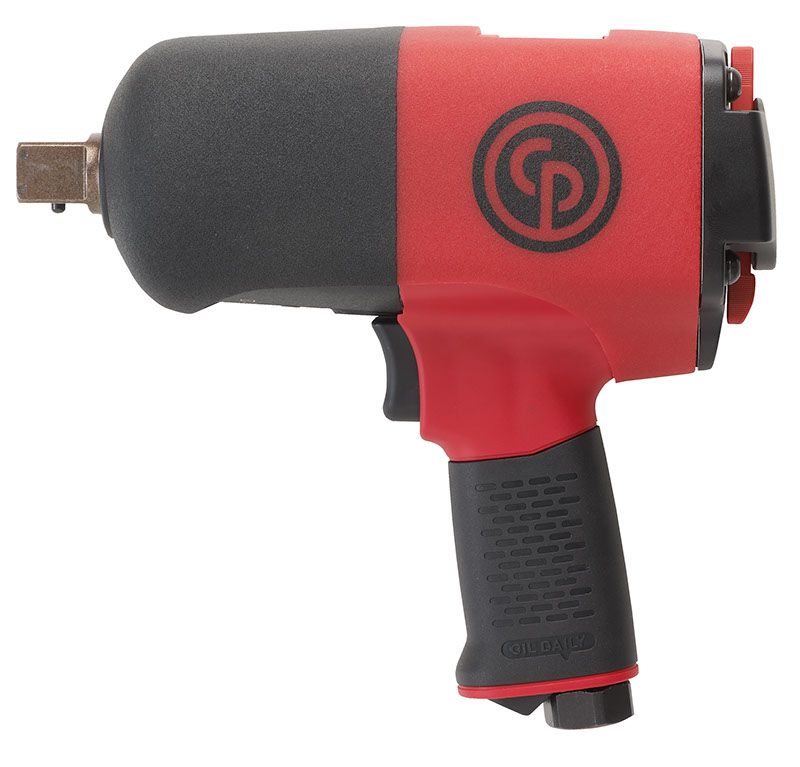

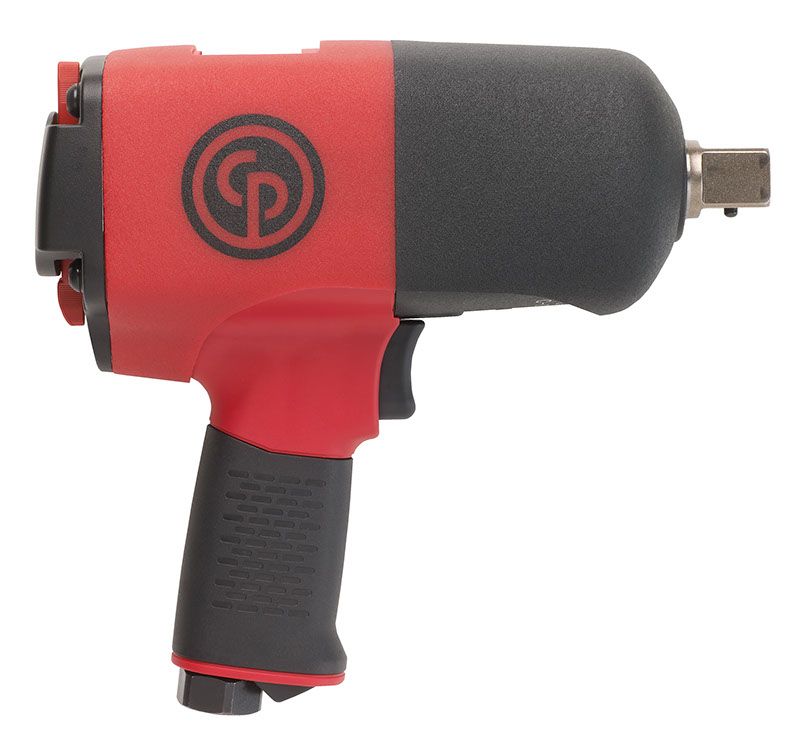

Chicago Pneumatic CP8272-P 3/4" Impact Wrench โ 6151590220
3/4" pistol pneumatic impact wrench
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle.
Features
- Ultralight composite body
- Durable twin hammer clutch mechanism
- Ergonomic grip handle
- High power-to-weight ratio
- Integrated suspension bail
Specifications
| Max working torque (fwd) | 922 ft.lbf |
| Max torque (reverse) | 1220 ft.lbf |
| Min working torque (fwd) | 184 ft.lbf |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Free Speed | 6500 rpm |
| Length (L) | 9.06 in |
| Weight | 7.28 lb |
| Blow per minute | 1000 |
| Body | Composite |
| Clutch housing | Aluminium |
| Impact mechanism | Twin hammer |
| CP part # | 6151590220 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151590220
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
