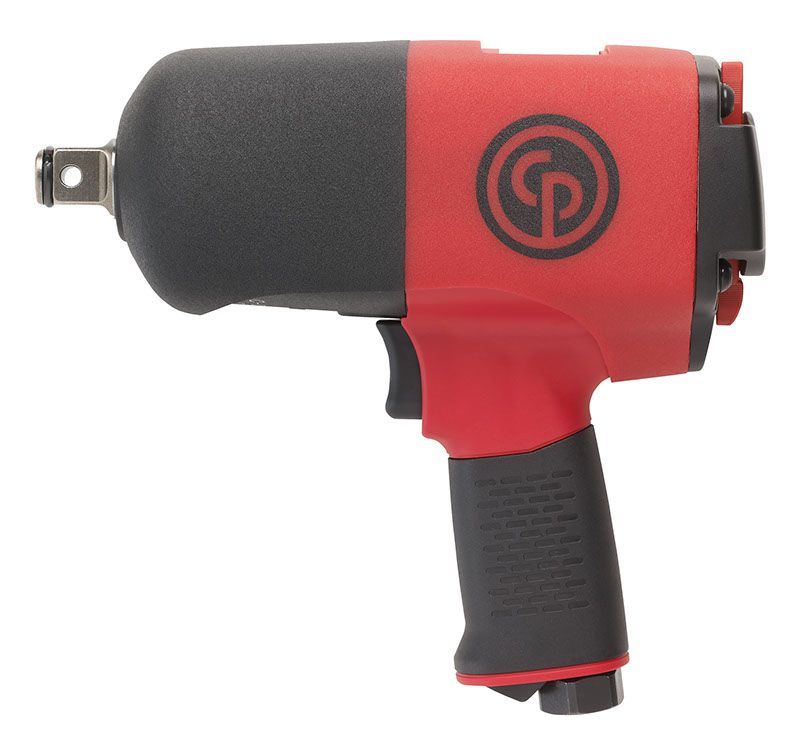

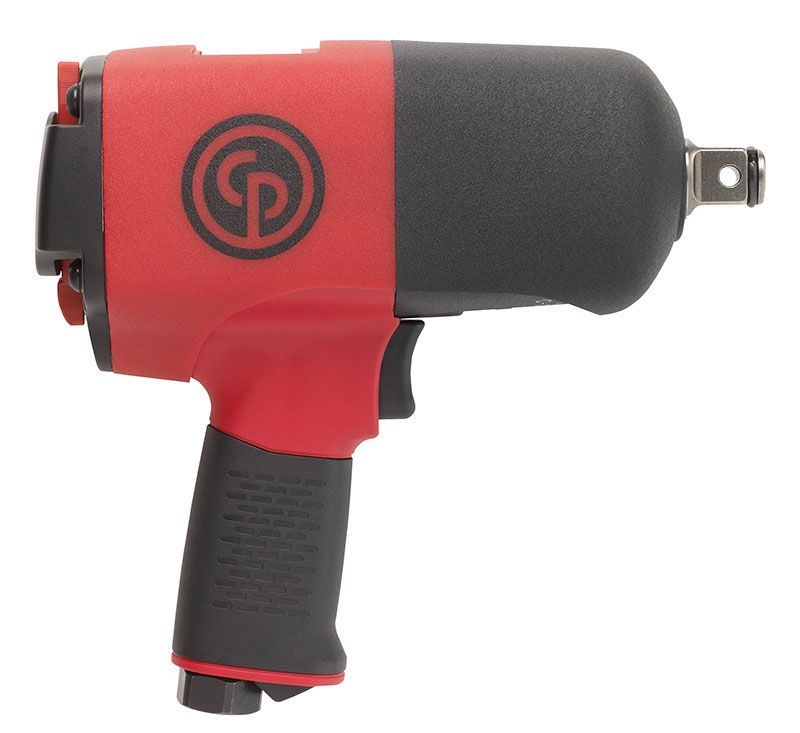

Chicago Pneumatic CP8272-D 3/4" Impact Wrench โ 6151590260
3/4" pistol pneumatic impact wrench
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use.
Features
- Ultralight design
- Durable twin hammer clutch mechanism
- Lightweight composite body
- Aluminium clutch housing
- Ergonomic handle with rubber grip
- Multiple power settings
- Integrated bail for suspension
Specifications
| Max working torque forward | 922 ft.lbf |
| Max torque reverse | 1220 ft.lbf |
| Min working torque forward | 184 ft.lbf |
| Air inlet thread size | 3/8 in |
| Max dynamic air working pressure | 90 psi |
| Free Speed | 6500 rpm |
| Weight | 8.05 lb |
| Blow per minute | 1000 |
| Composite body | Yes |
| Aluminium clutch housing | Yes |
| CP part # | 6151590260 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
