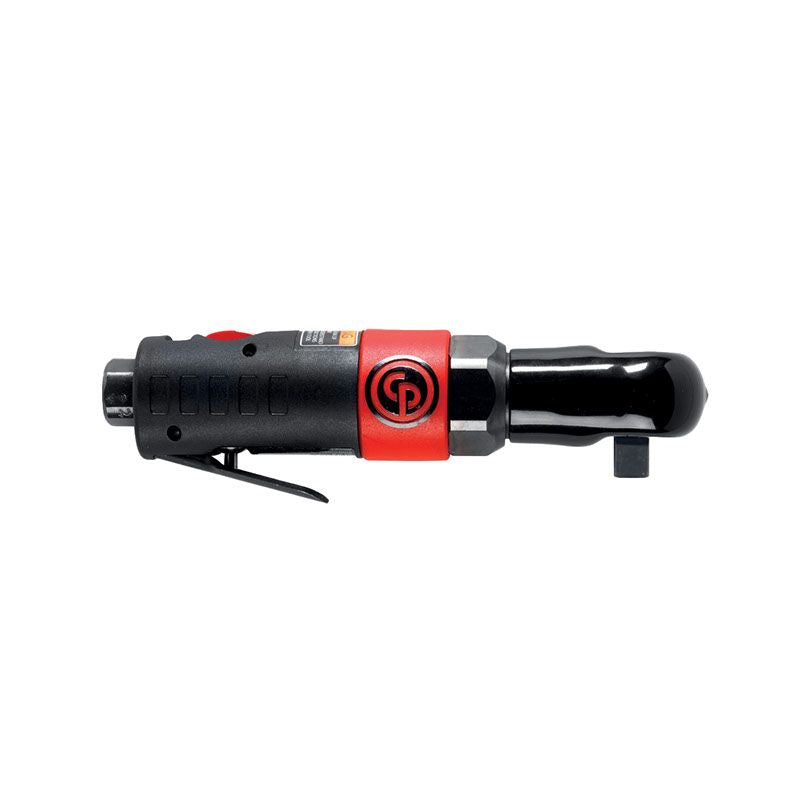

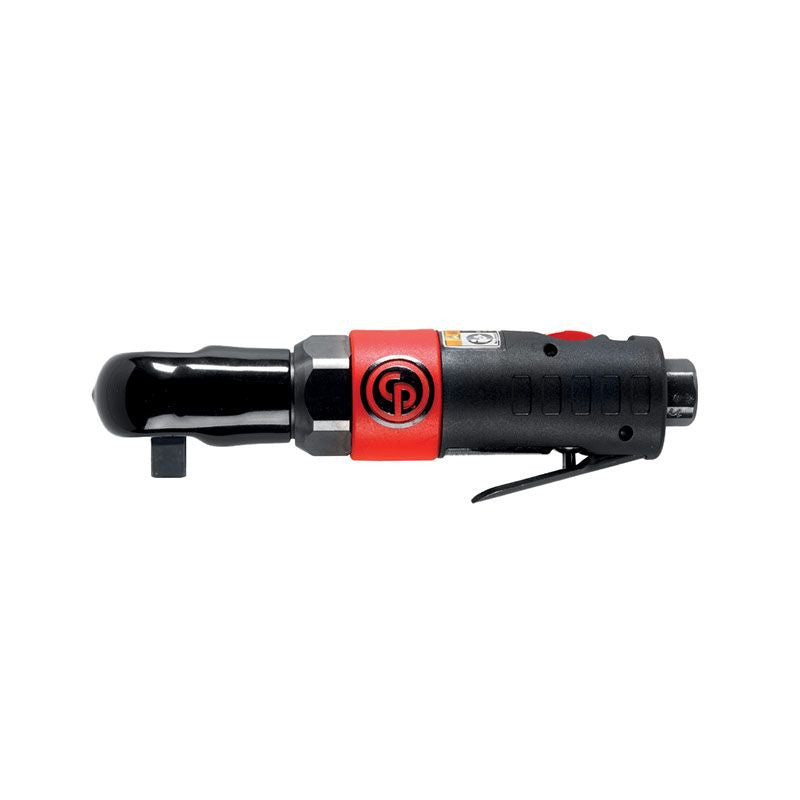

Chicago Pneumatic CP825CT 3/8" Composite Stubby Air Ratchet โ 8941082512
3/8" pneumatic ratchet wrench
The CP825 pneumatic ratchet wrench with aluminium body and composite housing has up to 26 ft.lbs / 35 Nm of max torque making it a great fastening solution for general automotive maintenance. This tool is extremely compact in length, which allows for improved access in tight spaces. It features a regulator to ensure speed regulation and teasing trigger to adjust torque. The CP825 Series is composed of 2 models: 3/8" and 1/4" anvil.
Features
- Comfortable ultra-compact design (6.6 in/169mm long)
- Lightweight (1.1 lbs/0.5 kg)
- Aluminium body with insulating composite housing
- Short and wide teasing lever for torque adjustment
- Back exhaust to avoid blowing dirt and dust
- Power easy-to-use regulator to control speed from zero to maximum
Specifications
| Free Speed | 280 rpm |
| Max working torque reverse | 18.4 ft.lbf |
| Max torque reverse | 25.8 ft.lbf |
| Min working torque reverse | 3.7 ft.lbf |
| Height (H) | 1.46 in |
| Length (L) | 6.65 in |
| Width (W) | 1.5 in |
| Side to Center | 0.75 in |
| Weight | 1.1 lb |
| Subfamily | Pneumatic Ratchet Wrenches |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Uncertainty vibration-K | 4.9 ft/sยฒ |
| Vibration (m/sยฒ) | 4 |
| Main Material type | Composite |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Output retainer type | Ball detent |
| Starting system | Lever |
| Air consumption at load | 10 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (5 m hose length) | 10 mm |
| CP part # | 8941082512 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
