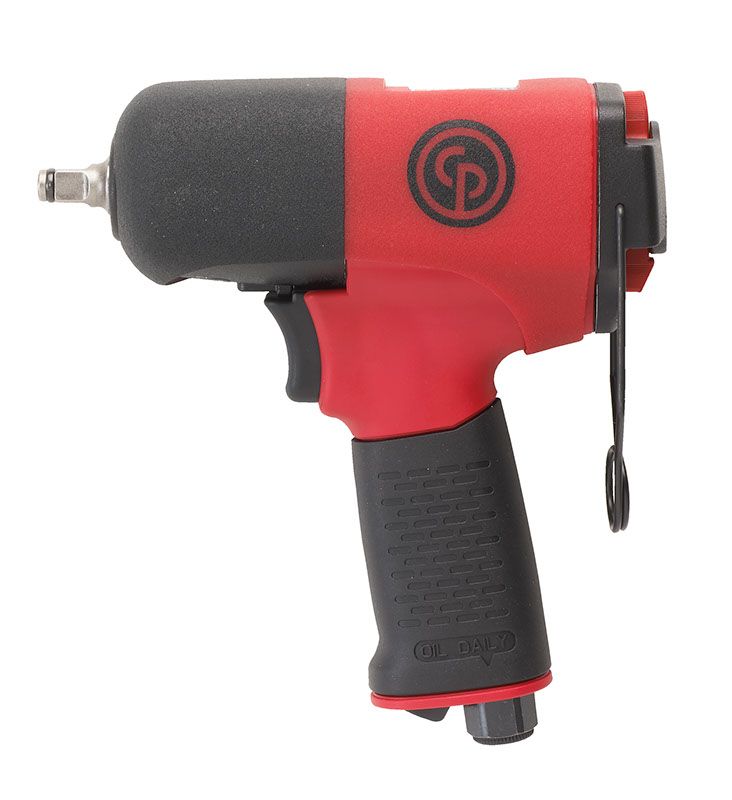

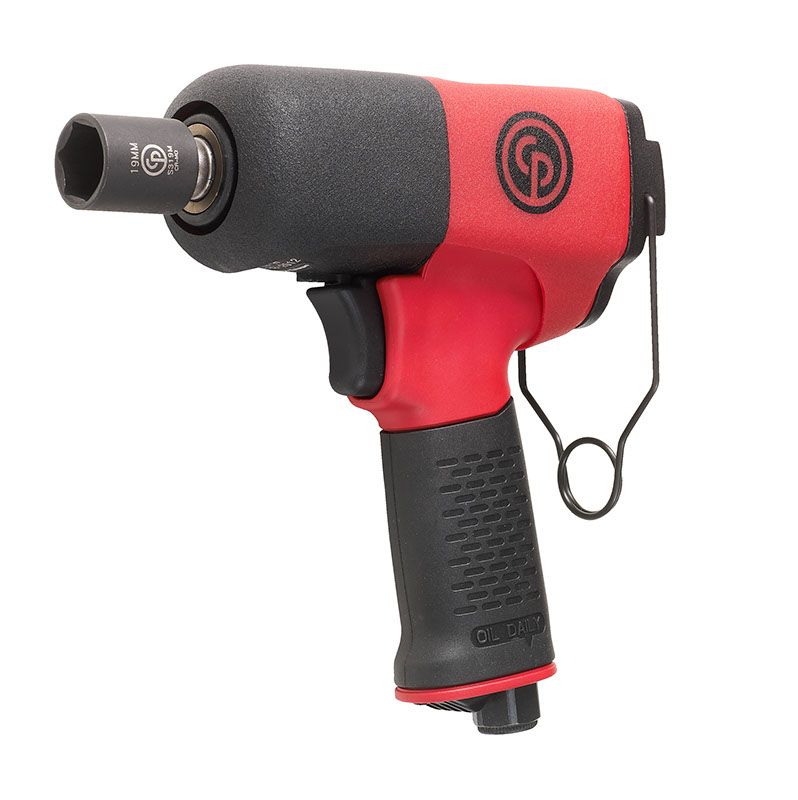

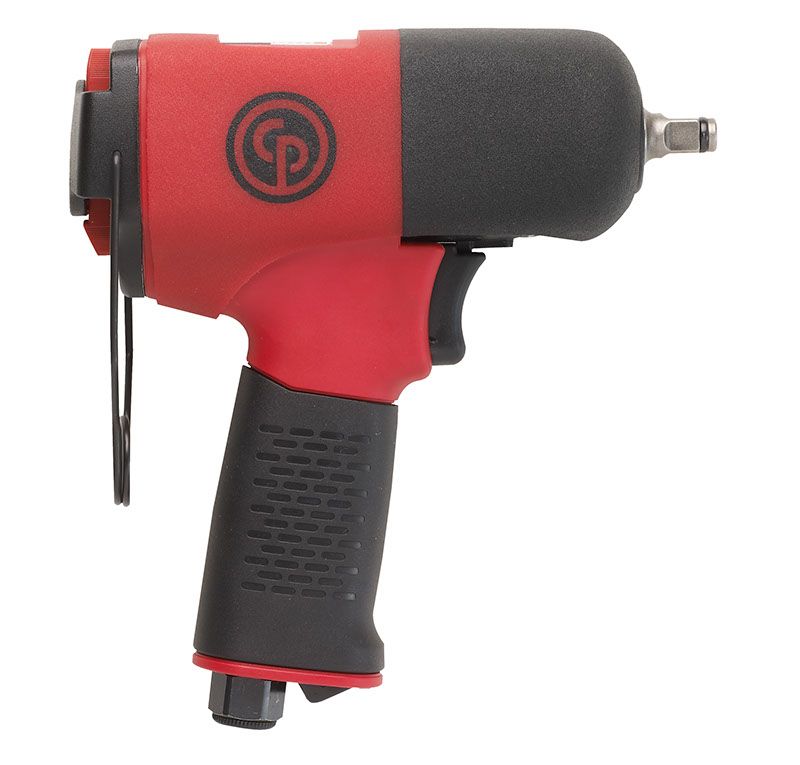

Chicago Pneumatic CP8222-R 3/8" Impact Wrench โ 6151590230
3/8" pistol pneumatic impact wrench
The CP8222/32/42/52/75 Series are ultralight, ergonomic impact wrenches designed with a durable twin hammer clutch mechanism, recommended for enhanced pneumatic technology. Features include an integrated bail and rubber grip handle for easy bolt mounting and removal. The series offers up to 1,650 Nm (1217 ft.lb) of reverse torque and is available in various models.
Features
- Lightweight composite body
- Durable twin hammer clutch mechanism
- Ergonomic design with rubber grip handle
- Integrated bail for suspension
- Various torque settings
Specifications
| Max working torque forward | 295 ft.lbf |
| Max torque reverse | 332 ft.lbf |
| Min working torque forward | 59 ft.lbf |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 100 dB(A) |
| Free Speed | 11500 rpm |
| Length | 6.97 in |
| Weight | 2.65 lb |
| Impact mechanism | Twin hammer |
| CP part # | 6151590230 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151590230
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
