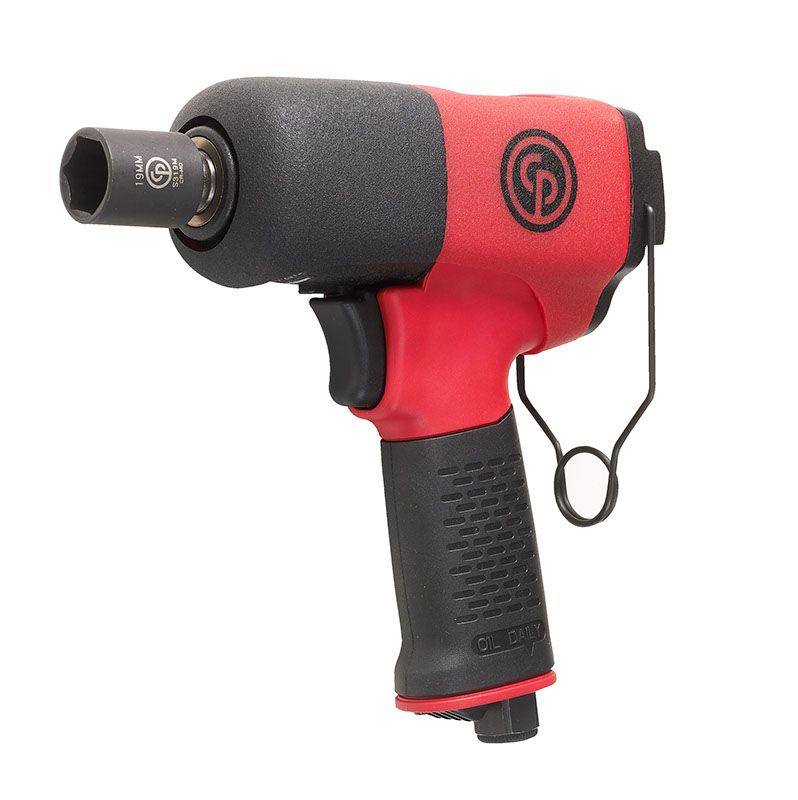

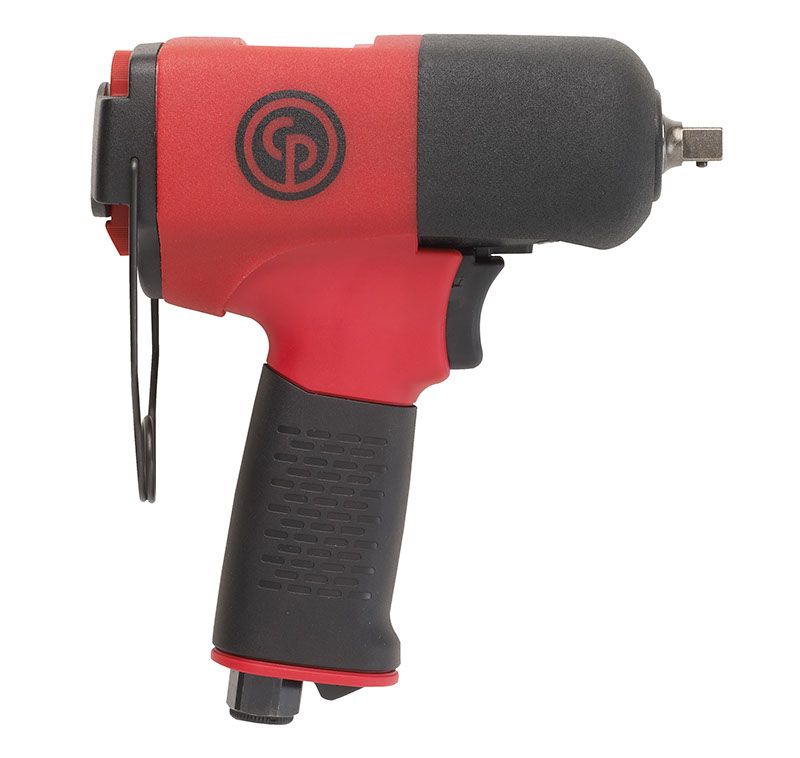

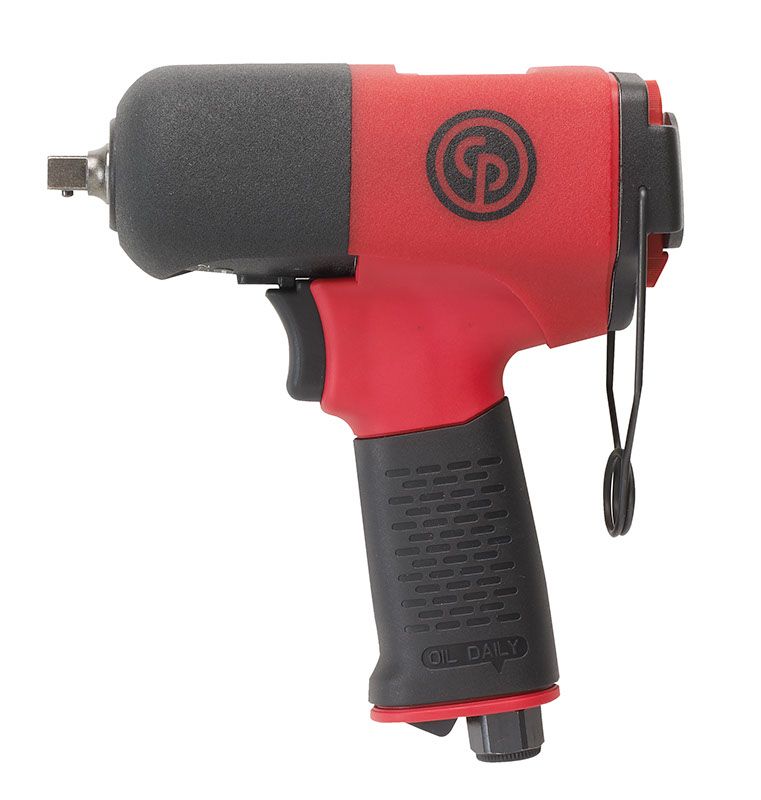

Chicago Pneumatic CP8222-P 3/8" Impact Wrench โ 6151590180
3/8" pistol pneumatic impact wrench
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8" to 3/4".
Features
- The twin hammer clutch mechanism offers a high power/weight ratio.
- Low vibration sensation for operator comfort, even at very high torque.
- Lightweight composite body and aluminium clutch housing
- 3 power settings ensure high progressive maximum torque for smooth operation.
- Integrated suspension bail for use with balancer
Specifications
| Max working torque fwd | 295 ft.lbf |
| Max torque reverse | 332 ft.lbf |
| Min working torque fwd | 59 ft.lbf |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 100 dB(A) |
| Sound Pressure | 89 dB(A) |
| Vibration | 5.8 m/sยฒ |
| Free Speed | 11500 rpm |
| Length | 6.97 in |
| Weight | 2.65 lb |
| Power weight ratio | 370 Nm/kg |
| Blow per minute | 1250 |
| Body | Composite |
| Clutch housing | Aluminium |
| Output drive size | 3/8 |
| Output drive type | Sq |
| Impact mechanism | Twin hammer |
| CP part # | 6151590180 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
