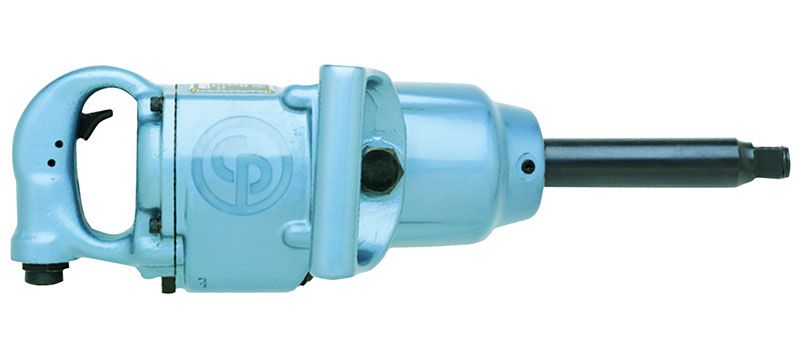

Chicago Pneumatic CP797-6 1" Impact Wrench – T013901

Description

1" pneumatic impact wrench

Designed for heavy vehicle tire changing applications, the CP797 Series 1" impact wrench provides a torque of up to 1,400 ft.lbs / 1,898 Nm.

Features

• 1,400 ft.lbs (1,898 Nm) of max torque
• Metal housing for durability
• Rocking dog impact mechanism
• Convenient reverse valve
• Teasing trigger for comfort

Specifications

Max working torque (fwd)	904 ft.lbf
Max torque (reverse)	1400 ft.lbf
Min working torque (fwd)	148 ft.lbf
Air inlet thread size	1/2 in
Max dynamic air working pressure	90 psi
Min hose diameter (16 ft hose length)	0.5 in
Min hose diameter (5 m hose length)	13 mm
Sound Power	121 dB(A)
Sound Pressure	110 dB(A)
Uncertainty vibration-K	14.1 ft/s²
Vibration	12.8 m/s²
Free Speed	4200 rpm
Length (L)	22.24 in
Weight	29.7 lb
Blow per minute	1080
Body	Aluminium
Clutch housing	Aluminium
Clutch lubrication type	Oil bath
Handle type	D-handle
Impact mechanism	Double rocking dog
Output drive size	1 in
Output drive type	Sq
Output retainer type	Friction ring
Side handle	Yes
Starting system	Trigger
CP part #	T013901

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
