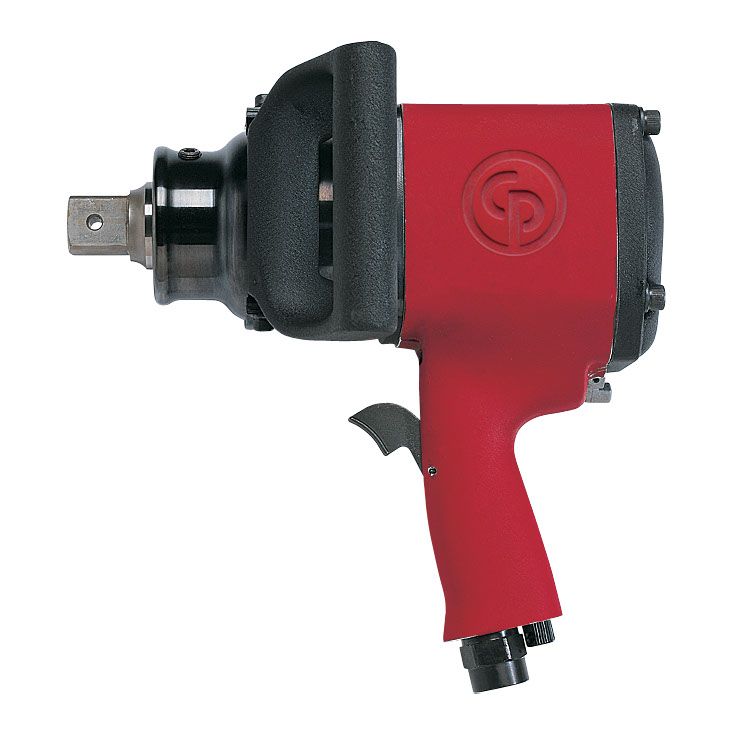

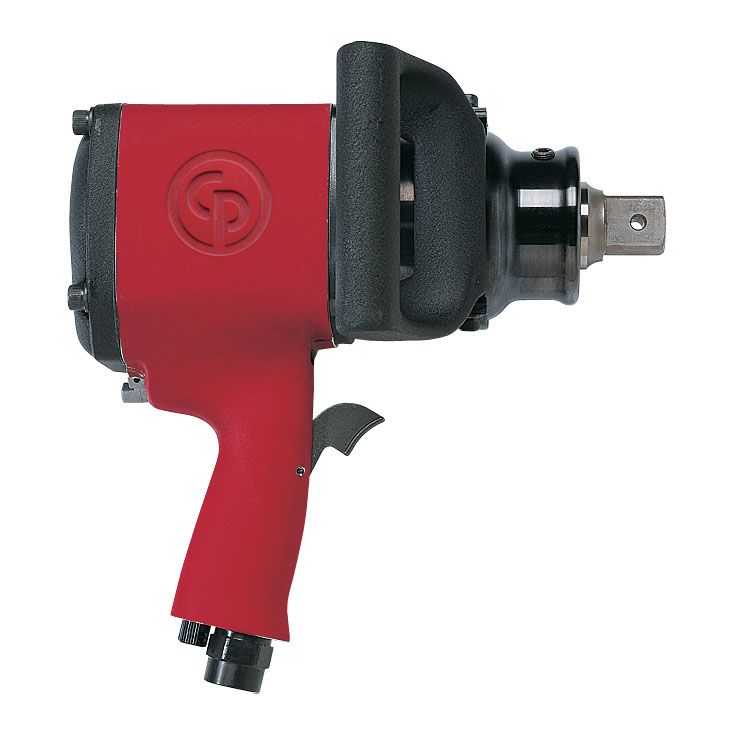

1" pneumatic impact wrench - short anvil
Optimize bolting and unbolting with this 1" pistol impact wrench. Featuring a durable two jaws clutch mechanism, metal body and clutch housing, this tool is designed to operate comfortably in maintenance environments. The CP796 Series is defined by 1 pistol model (short anvil).
Features
- Powerful motor delivering up to 2,000 ft.lbs (2,712Nm)
- Metal housing and 2 jaws impact mechanism for high durability
- Adjustable side handle for better comfort
Specifications
| Max working torque fwd | 1400 ft.lbf |
| Max torque reverse | 2000 ft.lbf |
| Min working torque fwd | 300 ft.lbf |
| Air inlet thread size | 1/2 in |
| Sound Power | 112 dB(A) |
| Sound Pressure | 101 dB(A) |
| Free Speed | 4100 rpm |
| Length | 9.49 in |
| Weight | 20 lb |
| Blow per minute | 900 |
| Output drive size | 1 in |
| CP part # | T019799 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model T019799
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
