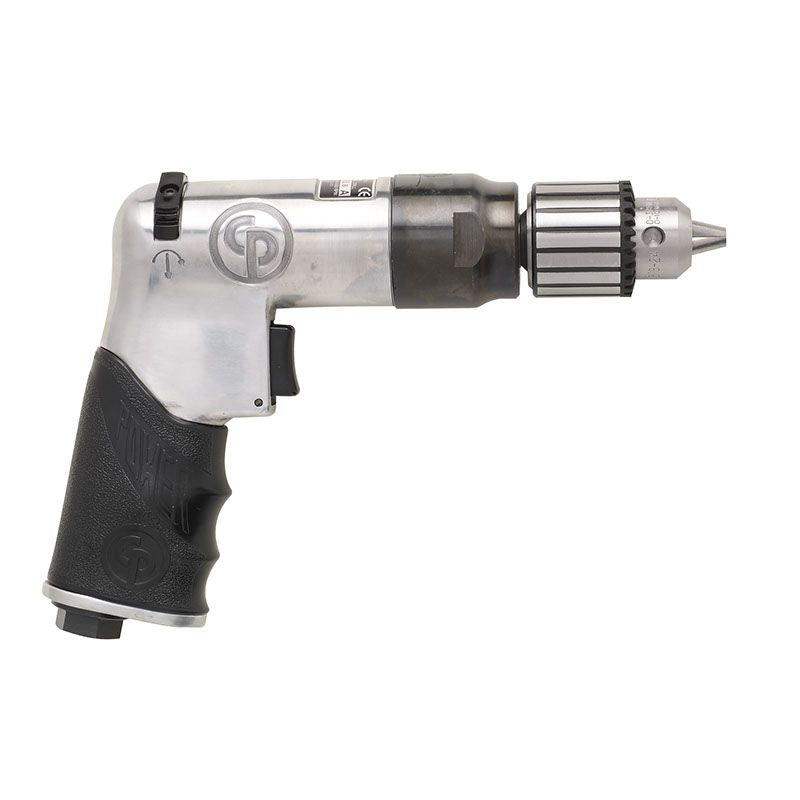

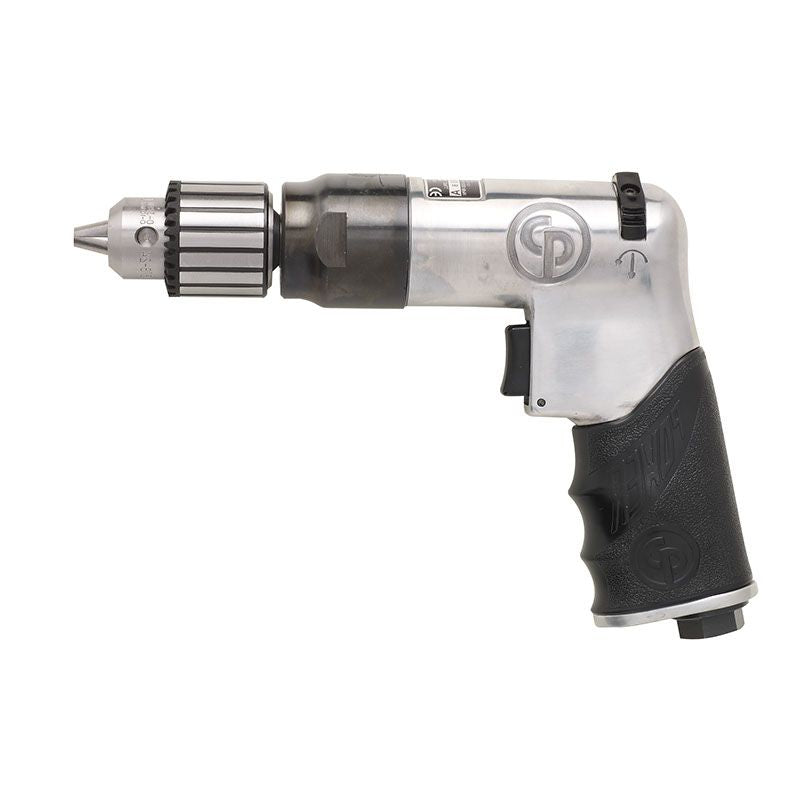

Chicago Pneumatic CP789R-42 3/8" Drill Rev. 4200 Rpm โ T025198
3/8"(10mm) REVERSIBLE PNEUMATIC DRILL
Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP785 Series offers high performance with its power of 0.4 hp (320 W) and high durability with its aluminum housing, its industrial quality Jacobs chuck and gearbox. This model belongs to the CP789 series which is composed of 3 models: 2 x 3/8" drills (26,000 and 42,000 rpm) and 1 x 1/2" drills (with side handle).
Features
- Thermoplastic rubber handle grip for better operator comfort
- Teasing trigger allowing more control to start holes
- Industrial quality Jacobs chuck and gearbox for high durability
Specifications
| Chuck max capacity (in) | 3/8 |
| Chuck max capacity (mm) | 11 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Reversible | Yes |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Air consumption at load | 29 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 0.43 hp |
| Stall torque | 1.8 ft.lbf |
| Free Speed | 4200 rpm |
| Air consumption at free speed | 30 cfm |
| Length (L) | 7.01 in |
| Weight | 2.49 lb |
| CP part # | T025198 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model T025198
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
