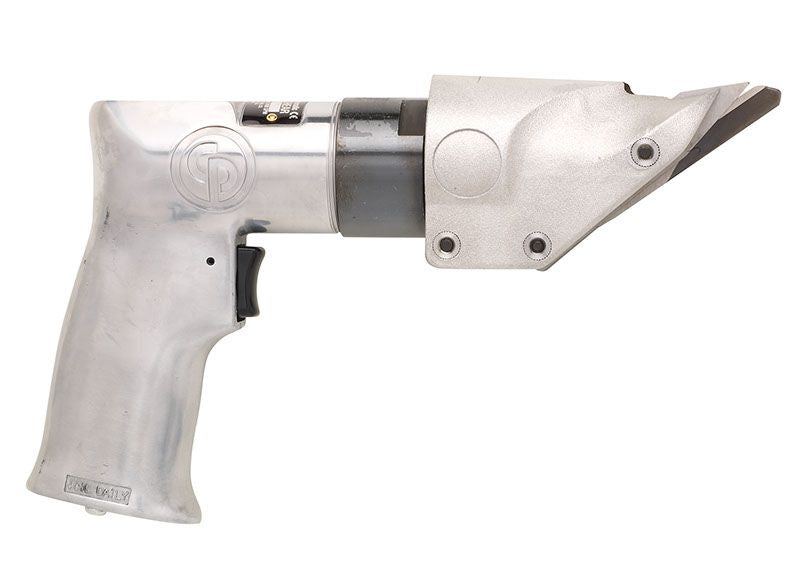

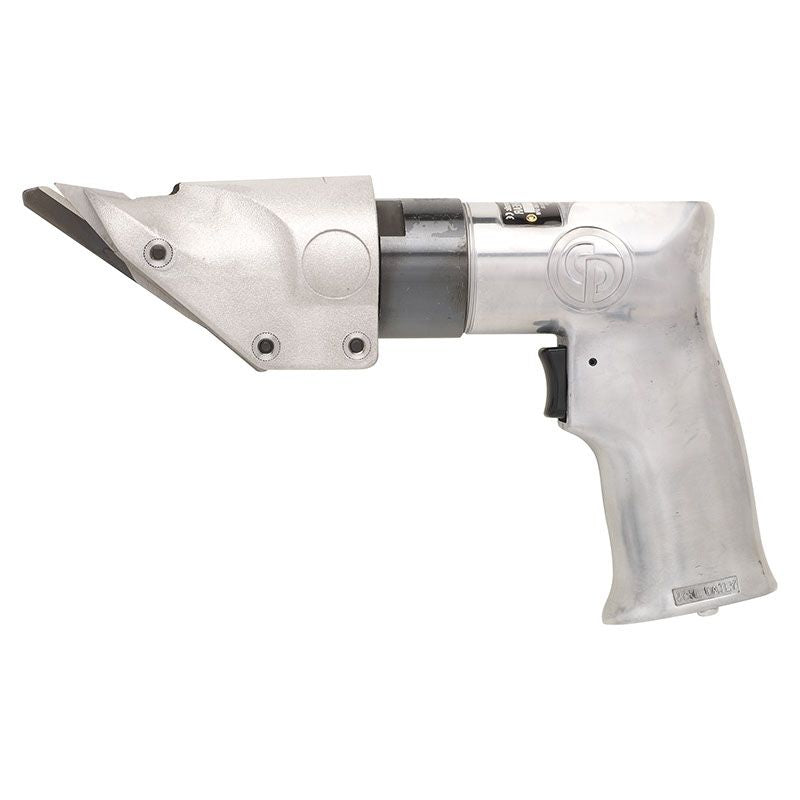

Chicago Pneumatic CP785S Air Pistol Shear – T023200

Description

Pneumatic shears

Designed for general maintenance applications such as cutting square and angles in all types of metal like aluminum, tin and steel, the CP785S series offers high efficiency with its power of 0.5 hp (370 W) which can cut metal up to 18 gauge (1.1 mm - 0.4")

Features

• Powerful motor with 0.5 hp (370 W) which can cut metal up to 18-gauge (1.1 mm - 0.04'')
• Triple idler planetary gearing for better reliability
• Ergonomic handle design

Specifications

Application	Metallic
Main Material type	Aluminium
Stroke per minute	2400
Blade lenght	0.87 in
Cutting capacity aluminum	0.08 in
Cutting capacity steel	0.05 in
Length (L)	9.02 in
Stroke	0.09 in
Weight	1.9 lb
Max power	0.35 hp
Sound Power	84 dB(A)
Sound Pressure	95 dB(A)
Vibration	10.5 ft/s²
Air consumption at load	15 cfm
Air inlet thread size (in)	1/4
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
CP part #	T023200

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
