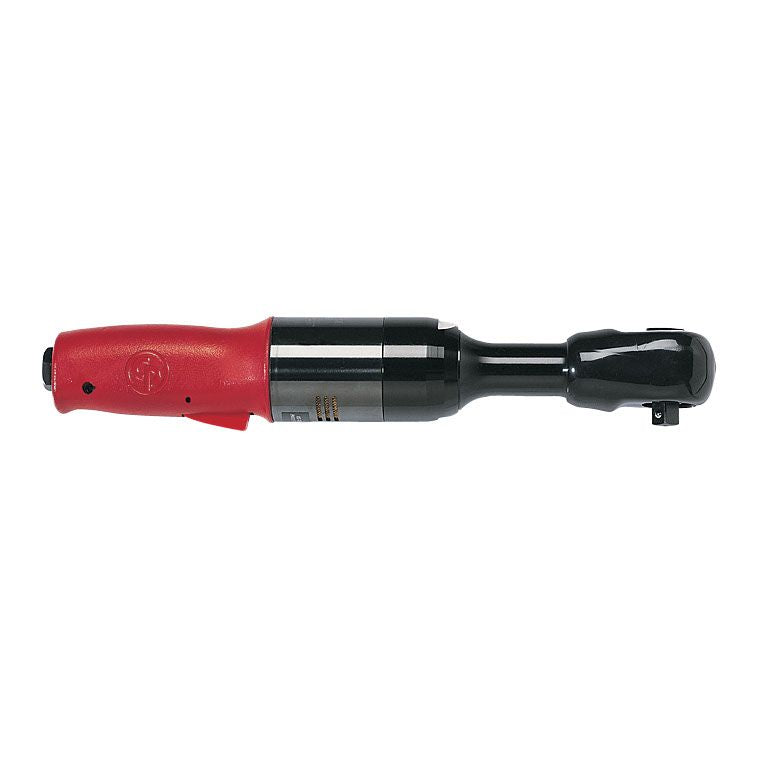

Chicago Pneumatic CP7830Q 3/8" Ratchet Quiet โ 8941078306
3/8" pneumatic ratchet wrench
The CP7830 features a maximum torque up to 90 ft.lbs / 122 Nm allowing quick and easy fastening. The progressive throttle allows users to apply the necessary amount of power safely and effectively. The tool benefits from the patented TriSpring Technology which guarantees anti-slip head design. The grease fitting option on the reverse button allows for easier lubrication. The pneumatic ratchet wrench CP7830 Series is composed of 2 models: 3/8" and 1/2" anvil.
Features
- Adjustable side exhaust and low noise for improved comfort
- Progressive teasing throttle to better adjust the torque
- Grease fitting on the reverse button for easier lubrication
- Sturdy aluminium alloy head and CP's patented TriSpring anti-slip head design with protective head cover for higher durability
Specifications
| Free Speed | 190 rpm |
| Max working torque reverse | 90 ft.lbf |
| Max torque reverse | 90 ft.lbf |
| Min working torque reverse | 9.6 ft.lbf |
| Length (L) | 12.01 in |
| Weight | 2.65 lb |
| Sound Power | 96 dB(A) |
| Sound Pressure | 85 dB(A) |
| Vibration (m/sยฒ) | 4.1 |
| Main Material type | Composite |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Output retainer type | Ball detent |
| Starting system | Lever |
| Air consumption at load | 18 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (5 m hose length) | 10 mm |
| CP part # | 8941078306 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941078306
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
