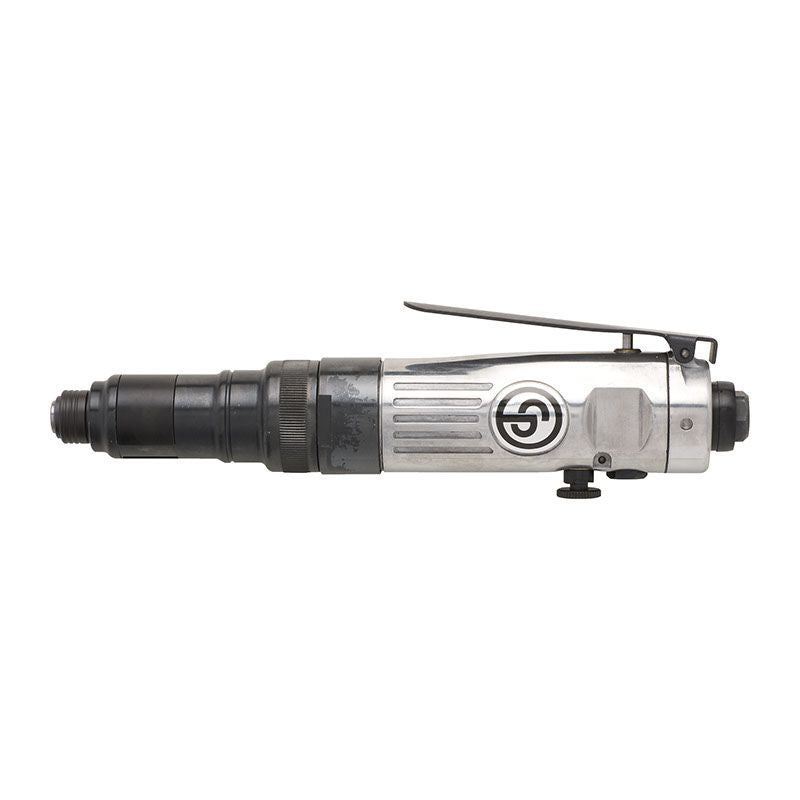

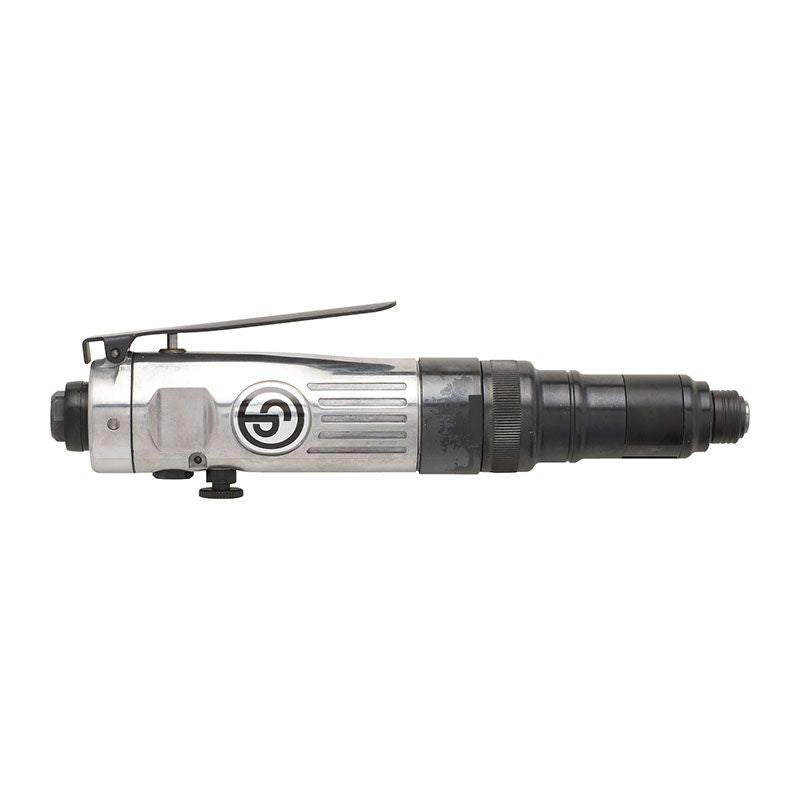

Chicago Pneumatic CP782 In-line Screwdriver High Torque โ T025097
1/4"hex cushion pneumatic screwdriver
The CP782/CP783 Series are 1/4" hex quick change straight cushion clutch screwdrivers designed for fastening operations. They feature a rugged aluminum body and steel clutch housing for durability while also being comfortable with their external clutch adjustment and lightweight. Available in 2 torque levels: Medium torque (CP783) and high torque (CP782).
Features
- Fast screw fastening in cushion clutch and high torque for better productivity
- External clutch adjustment
- Convenient single-handed forward/reverse valve for better ease of use
- Progressive lever start and suspension bail
Specifications
| Max torque in forward | 3.7 ft.lbf |
| Min torque in forward | 2.6 ft.lbf |
| Torque Control System | Non shut-off-clutch |
| Body | Aluminum |
| Clutch housing | Steel |
| Clutch Type | Cushion clutch |
| Handle type | Straight handle |
| Output drive size (in) | 1/4 |
| Output drive type | Hex |
| Output retainer type | Quick change |
| Reversible | Yes |
| Starting system | Lever |
| Free Speed | 1800 rpm |
| Air consumption at free speed | 16 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Length (L) | 9.65 in |
| Weight | 2.49 lb |
| Sound Power | 104.9 dB(A) |
| Sound Pressure | 93.9 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| CP part # | T025097 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
