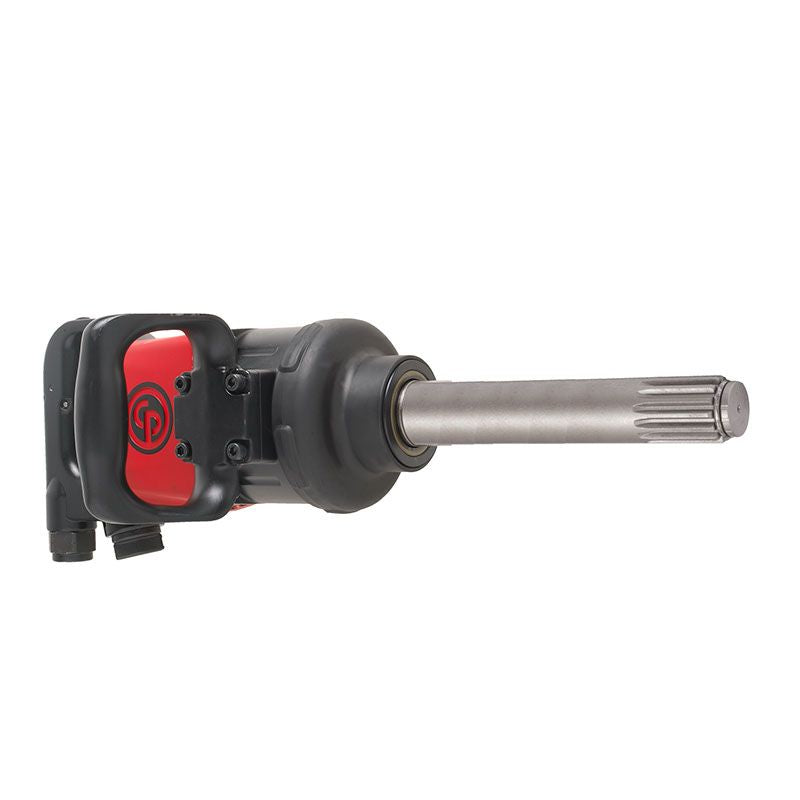

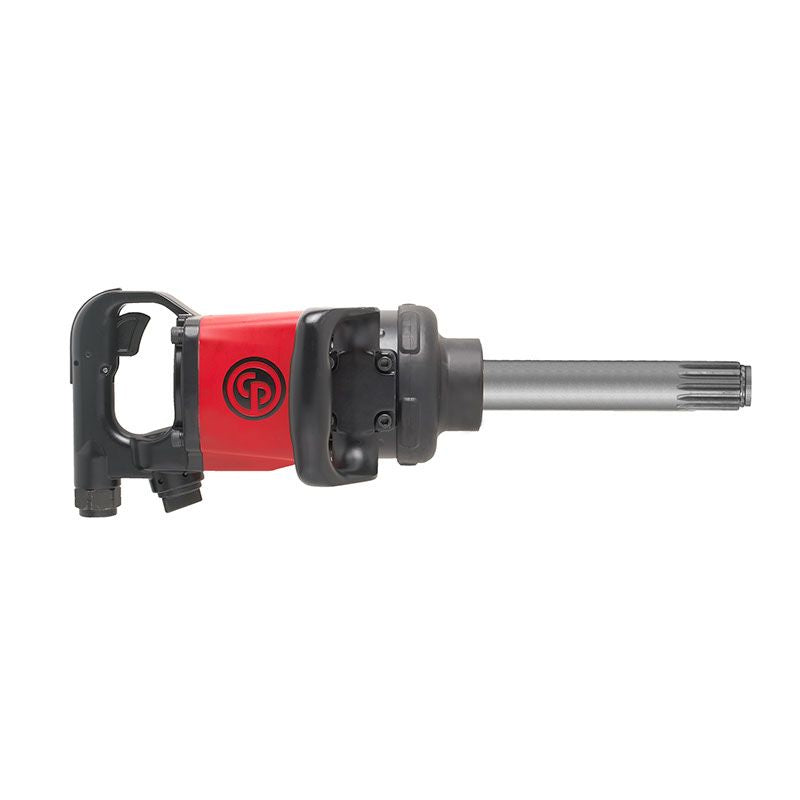

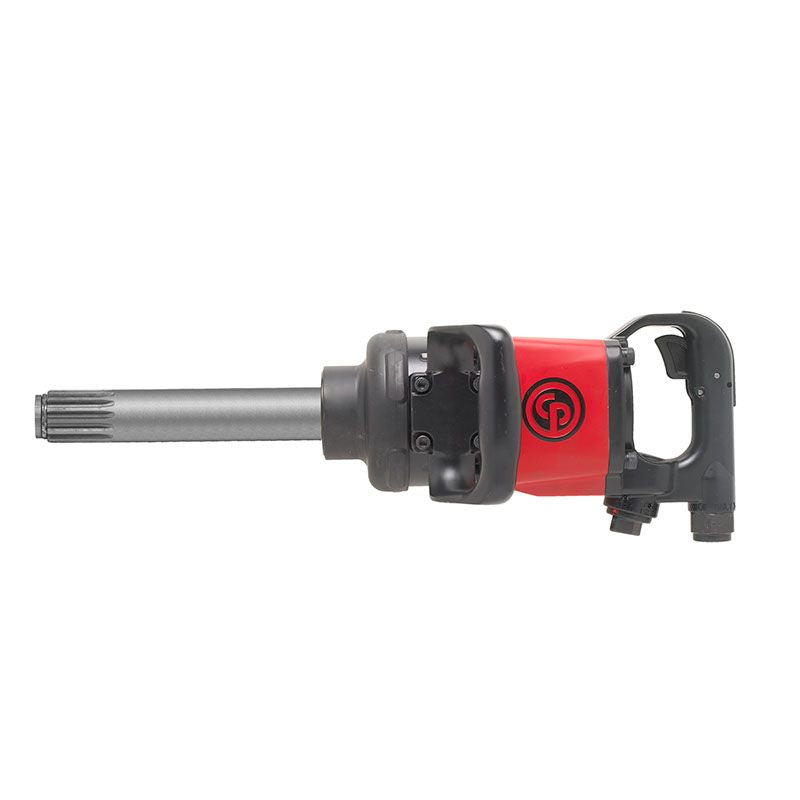

Chicago Pneumatic CP7782-SP6 1" Impact #5 Spline 6" Anvil โ 8941077821
#5 spline pneumatic impact wrench

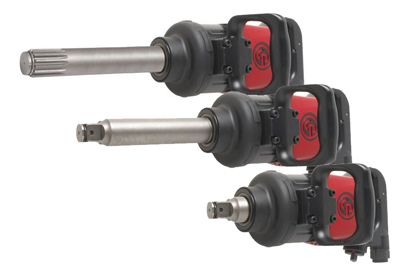

Designed for tire changing applications, this 1" impact wrench with its high torque of 1,920 ft.lbs / 2,600 Nm is highly recommended. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7782 series includes 3 models: 1" short anvil, 1" long anvil (6" anvil) and 1" long anvil (6" anvil) with spline retainer.
Features
- 1,920 ft.lbs (2,600 Nm) of max torque in reverse position for high productivity
- Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability
- Power control regulators at the rear of the unit with 3 reverse and 3 forward positions
- Integrated protective cover on the clutch housing protects both applications & tool
- Low vibration for improved comfort
Specifications
| Max working torque fwd | 1480 ft.lbf |
| Max torque reverse | 1920 ft.lbf |
| Min working torque fwd | 369 ft.lbf |
| Torque limited | No |
| Air consumption at load | 40 cfm |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Sound Power | 111 dB(A) |
| Sound Pressure | 100 dB(A) |
| Uncertainty vibration-K | 5.9 ft/sยฒ |
| Vibration (m/sยฒ) | 7.8 |
| Free Speed | 5200 rpm |
| Length (L) | 22.44 in |
| Power weight ratio | 250 Nm/kg |
| Weight | 25.5 lb |
| Blow per minute | 500 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mechanism | Pinless rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | #5 Spline |
| Output drive type | #5 Spline |
| Output retainer type | Friction ring |
| Side handle | Yes |
| Starting system | Trigger |
| CP part # | 8941077821 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
