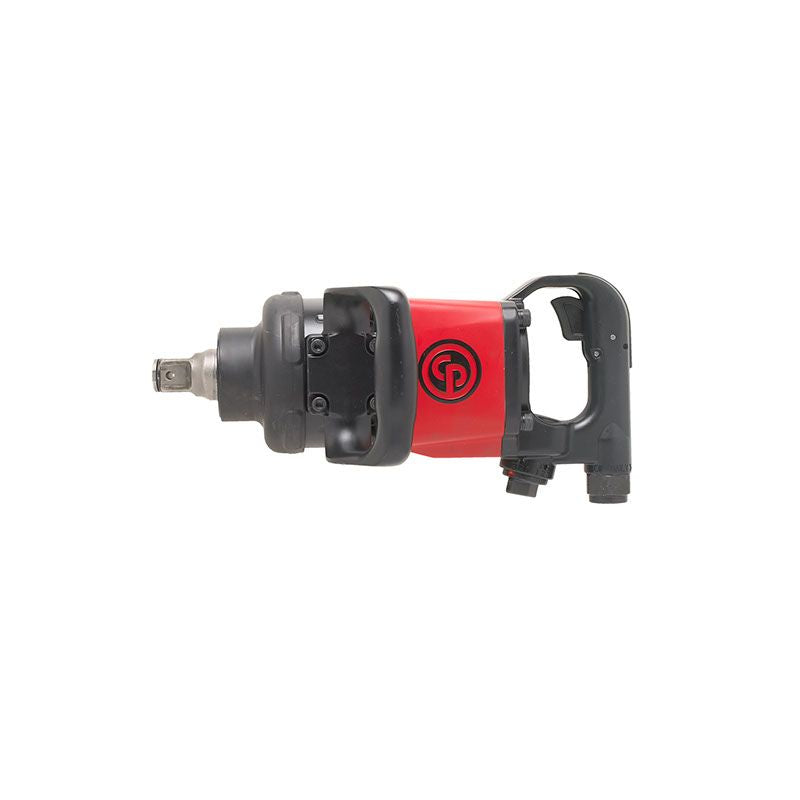

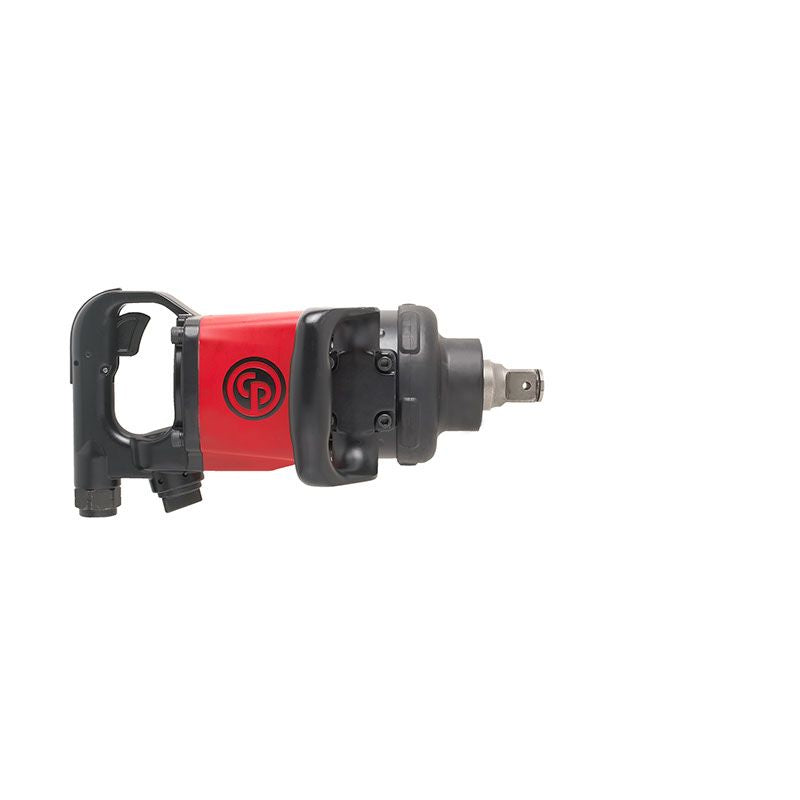

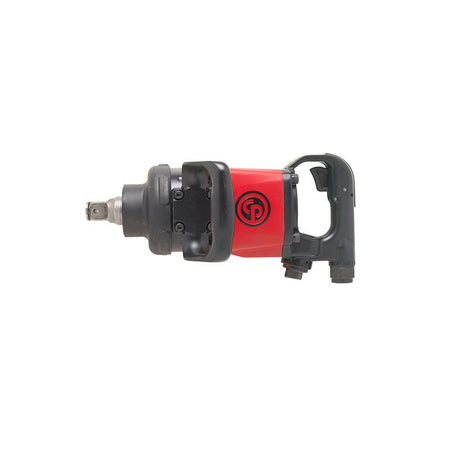

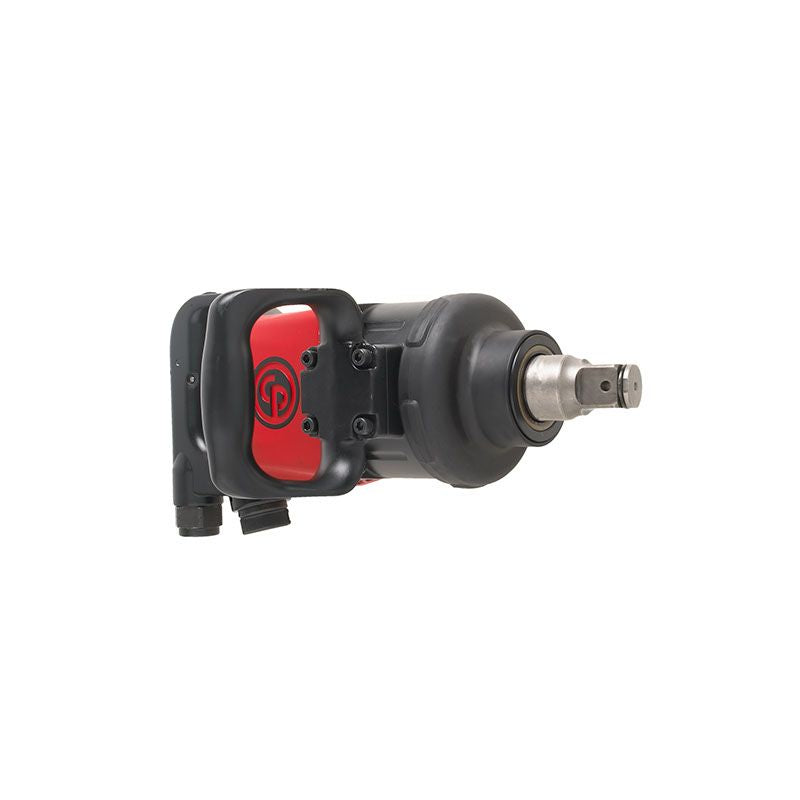

Chicago Pneumatic CP7782 1" Impact Wrench โ 8941077820
1" pneumatic impact wrench

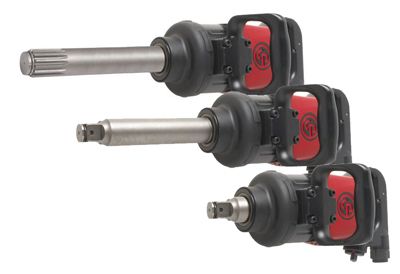

Designed for tire changing applications, this 1" impact wrench with its high torque of 1,920 ft.lbs / 2,600 Nm is highly recommended. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7782 series includes 3 models: 1" short anvil, 1" long anvil (6" anvil) and 1" long anvil (6" anvil) with spline retainer.
Features
- 1,920 ft.lbs ( 2,600 Nm) of max torque in reverse position for high productivity
- Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability
- Power control regulators at the rear of the unit with 3 reverse and 3 forward positions
- Integrated protective cover on the clutch housing protects both applications & tool
- Low vibration for improved comfort
Specifications
| Max working torque fwd | 1480 ft.lbf |
| Max torque reverse | 1920 ft.lbf |
| Min working torque fwd | 369 ft.lbf |
| Air consumption at load | 40 cfm |
| Air inlet thread size | 1/2 in |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 111 dB(A) |
| Sound Pressure | 100 dB(A) |
| Vibration | 7.8 m/sยฒ |
| Free Speed | 5200 rpm |
| Length | 14.57 in |
| Weight | 22.2 lb |
| Blow per minute | 500 |
| Output drive size | 1 in |
| Output drive type | Sq |
| CP part # | 8941077820 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941077820
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
