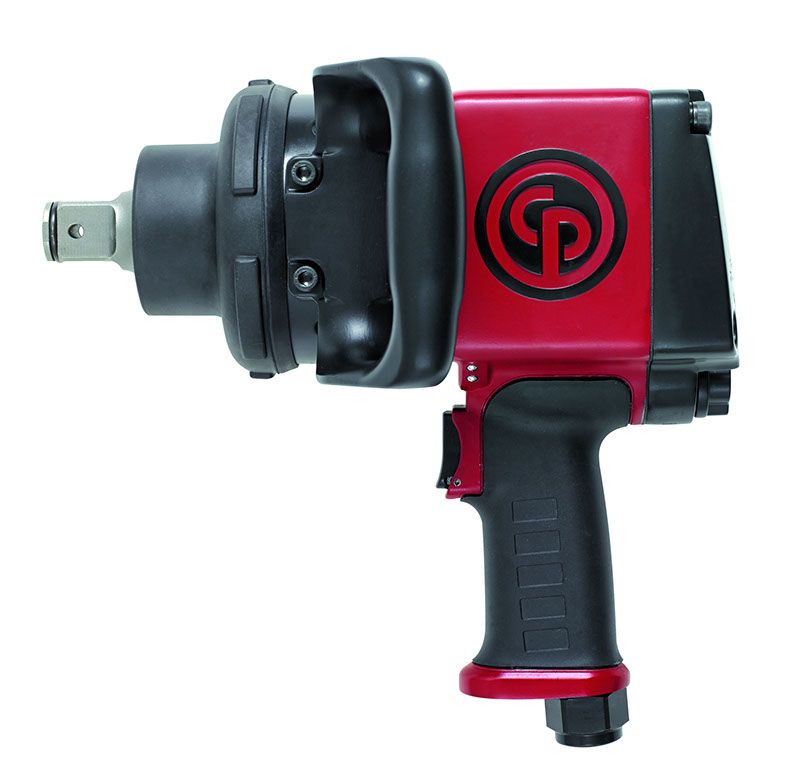

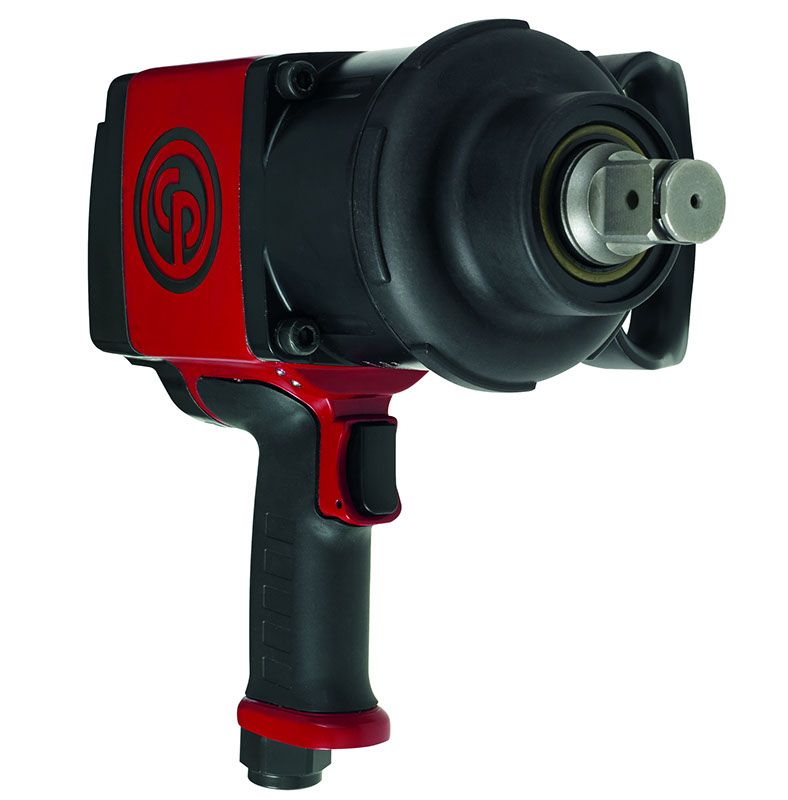

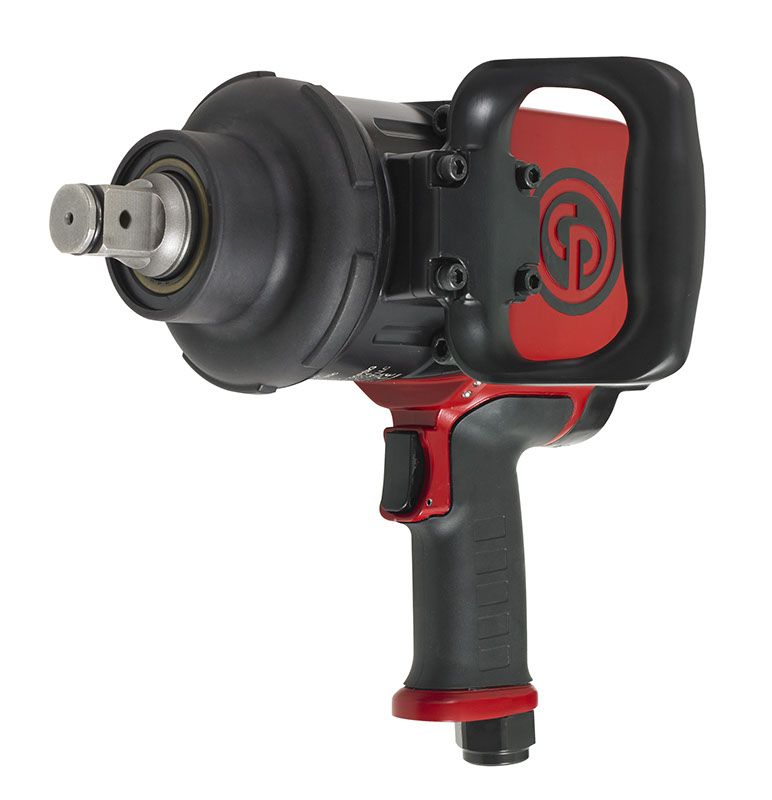

Chicago Pneumatic CP7776 1" Impact Wrench โ 8941077760
1" pneumatic impact wrench

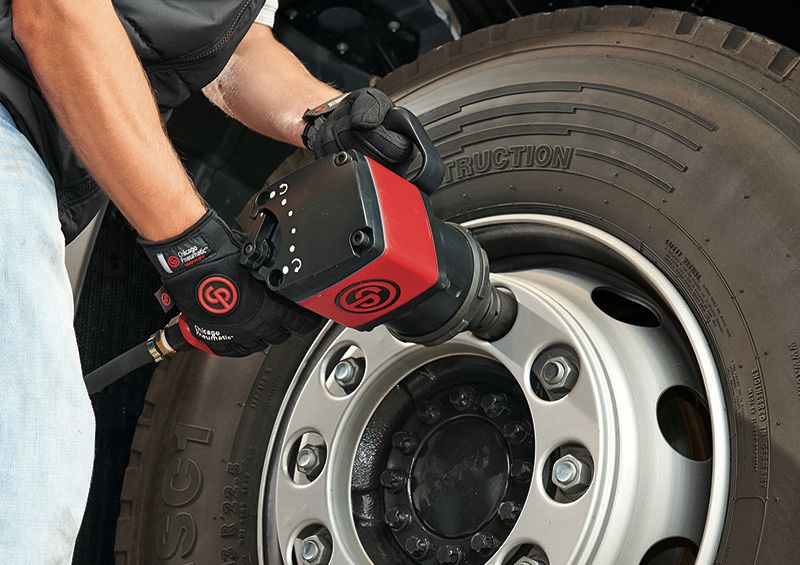

For use in any general maintenance environment with the CP7776 1" impact wrench designed for bolting & unbolting applications. Delivers a reverse high torque up to 1,770 ft.lbs / 2,400 Nm. The pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability. The CP7776 series is composed of 2 models: 1" short anvil and 1" long anvil (6" anvil).
Features
- Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability
- TPR handle and side handle swivel in 4 positions for maximum comfort
- Power control regulators at the back of the tool with 3 reverse and 3 forward positions
- Angled down exhaust blows air away from work place
- Rubber bumpers protect both applications & tool
Specifications
| Max working torque fwd | 1530 ft.lbf |
| Max torque reverse | 1770 ft.lbf |
| Min working torque fwd | 704 ft.lbf |
| Air consumption at load | 33 cfm |
| Air inlet thread size | 1/2 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Free Speed | 5000 rpm |
| Length | 11.38 in |
| Weight | 24.6 lb |
| Body | Aluminium |
| Impact mechanism | Pinless rocking dog |
| Output drive size | 1 |
| Output drive type | Sq |
| Handle type | Pistol |
| CP part # | 8941077760 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941077760
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
