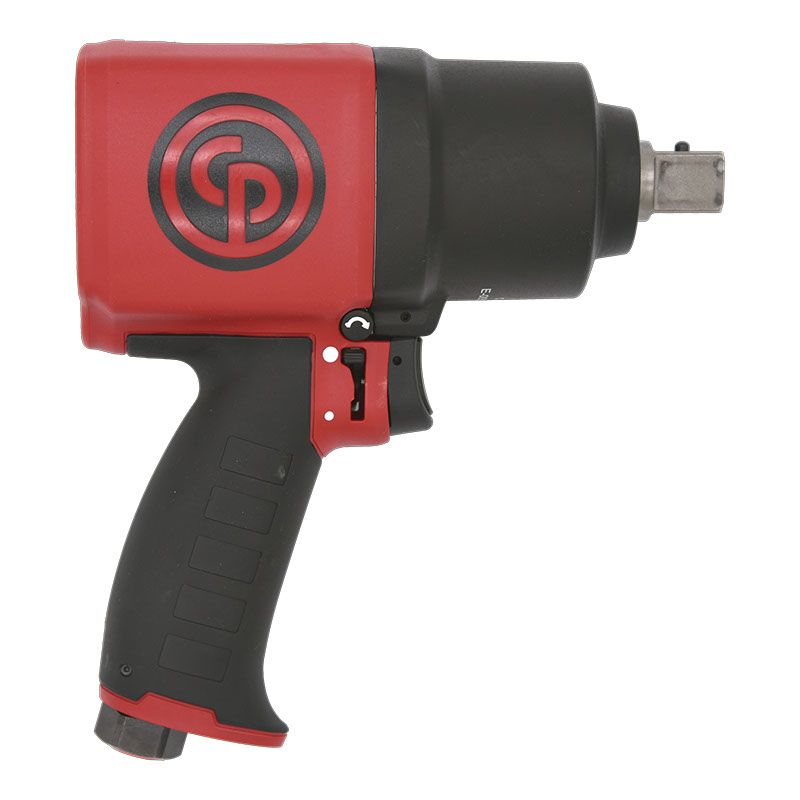

Chicago Pneumatic CP7769P Impact Wrench 3/4" - Pin Retainer โ 8941077692
Pin style impact wrench
Designed for general maintenance, this impact wrench is comfortable and efficient to use in workshop environment thanks to their one-hand power control and forward / reverse selector - S2S technology. With its maximum torque in reverse up to 1,440 ft.lbs / 1,950 Nm, the CP7769 offers high productivity. The twin hammer impact mechanism and its composite housing offer high durability while being both lightweight and compact. The CP7769 is composed of 4 models: 3/4" short anvil with Friction Ring Retainer, 3/4" short anvil with Pin Retainer, 3/4" long anvil (6" anvil) and 1" short anvil.
Features
- 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity
- Composite housing and twin hammer impact mechanism for high durability
- Due to its composite motor housing, it is both lightweight and compact, offering improved comfort
- One-hand power adjustment and reverse system - S2S technology - thereby limiting wrist and arm fatigue
Specifications
| Max working torque fwd | 221 ft.lbf |
| Max torque reverse | 1440 ft.lbf |
| Min working torque fwd | 797 ft.lbf |
| Torque limited | No |
| Air inlet thread size (in) | 3/8 |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 107.8 dB(A) |
| Sound Pressure | 96.8 dB(A) |
| Uncertainty vibration-K | 4.9 ft/sยฒ |
| Free Speed | 5500 rpm |
| Height (H) | 8.66 in |
| Length (L) | 7.87 in |
| Width (W) | 3.31 in |
| Side to Center | 4.33 in |
| Weight | 6.94 lb |
| Blow per minute | 1200 |
| Body | Composite |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Pin retainer |
| Starting system | Trigger |
| CP part # | 8941077692 |
