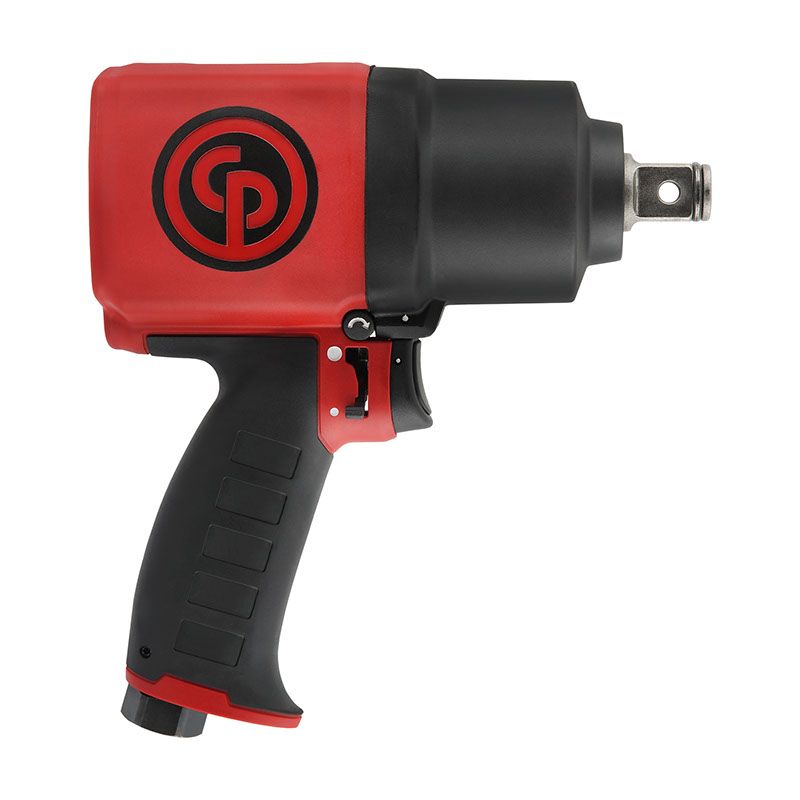

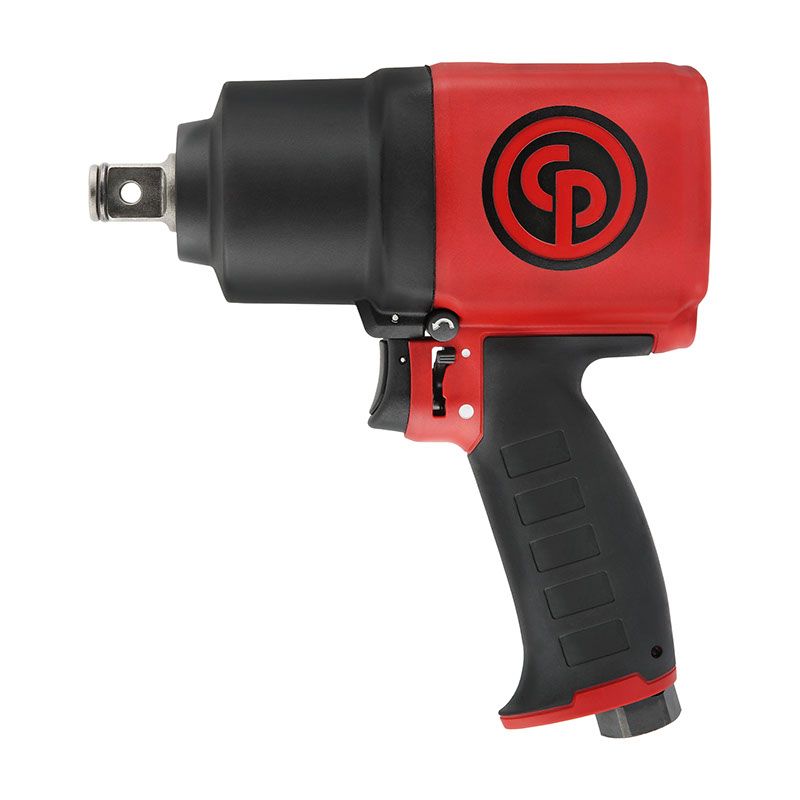

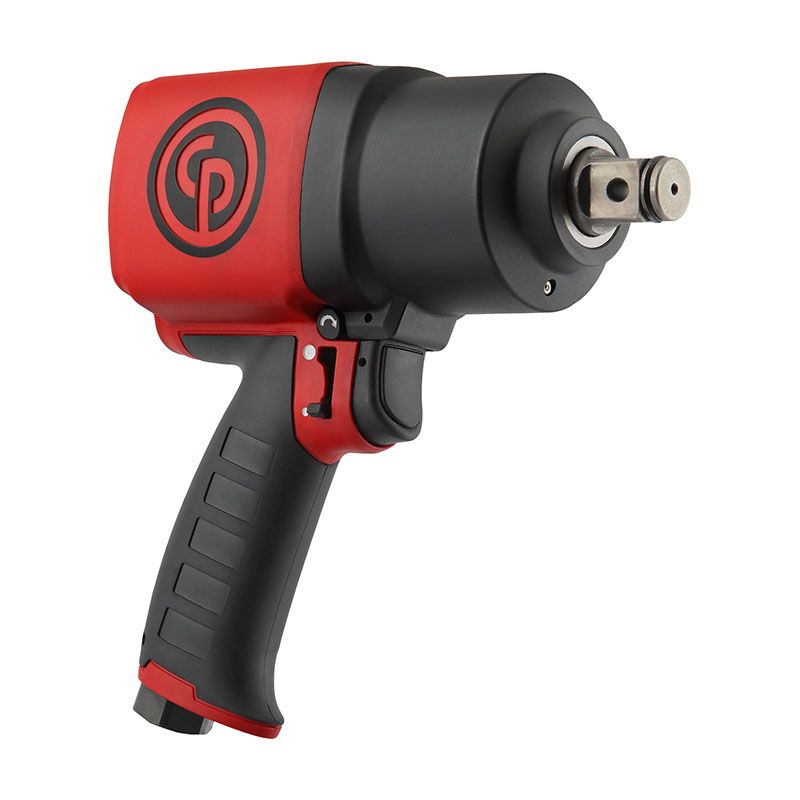

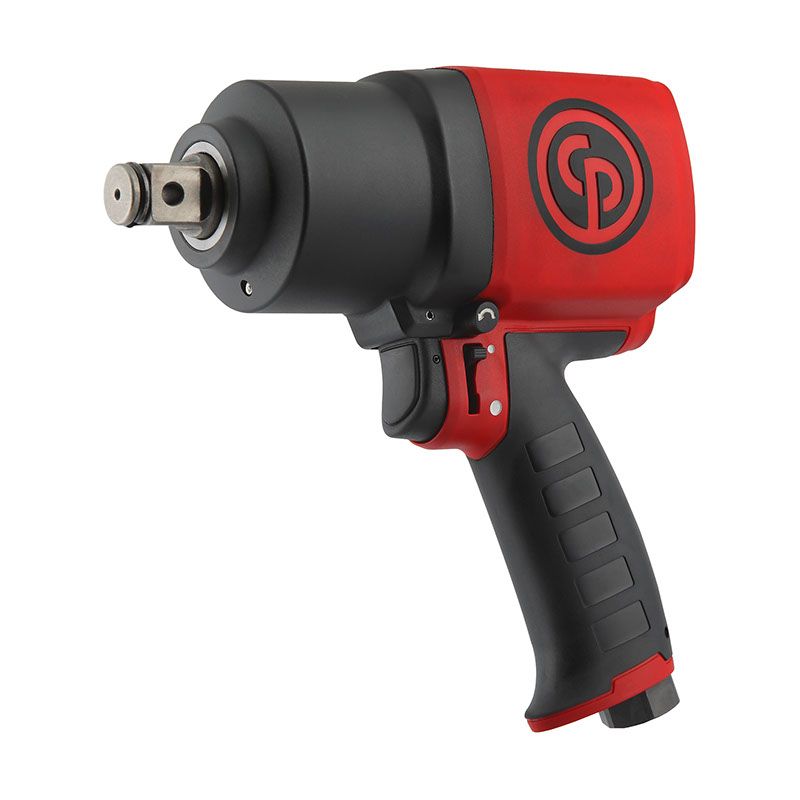

Chicago Pneumatic CP7769 3/4"IMPACT Wrench โ 8941077691
3/4"pneumatic impact wrench
Designed for general maintenance, this impact wrench is comfortable and efficient to use in workshop environment thanks to their one-hand power control and forward / reverse selector - S2S technology. With its maximum torque in reverse up to 1,440 ft.lbs / 1,950 Nm, the CP7769 offers high productivity. The twin hammer impact mechanism and its composite housing offer high durability while being both lightweight and compact. The CP7769 is composed of 4 models: 3/4" short anvil with Friction Ring Retainer, 3/4" short anvil with Pin Retainer, 3/4" long anvil (6" anvil) and 1" short anvil.
Features
- 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity
- Composite housing and twin hammer impact mechanism for high durability
- Due to its composite motor housing, it is both lightweight and compact, offering improved comfort
- One-hand power adjustment and reverse system - S2S technology - thereby limiting wrist and arm fatigue
Specifications
| Max working torque fwd | 1080 ft.lbf |
| Max torque reverse | 1440 ft.lbf |
| Min working torque fwd | 300 ft.lbf |
| Air consumption at load | 31 cfm |
| Air inlet thread size | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 107.8 dB(A) |
| Sound Pressure | 96.8 dB(A) |
| Free Speed | 6500 rpm |
| Height | 8.66 in |
| Length | 7.87 in |
| Width | 3.31 in |
| Weight | 6.94 lb |
| Blow per minute | 1200 |
| Body | Composite |
| Impact mechanism | Twin hammer |
| Output drive size | 3/4 |
| Handle type | Pistol |
| CP part # | 8941077691 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
