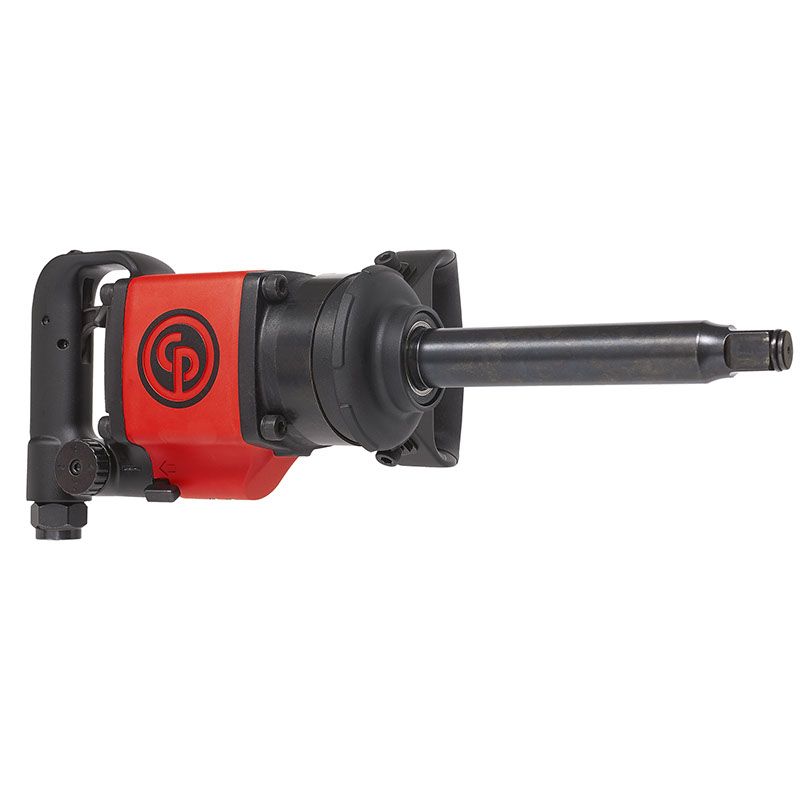

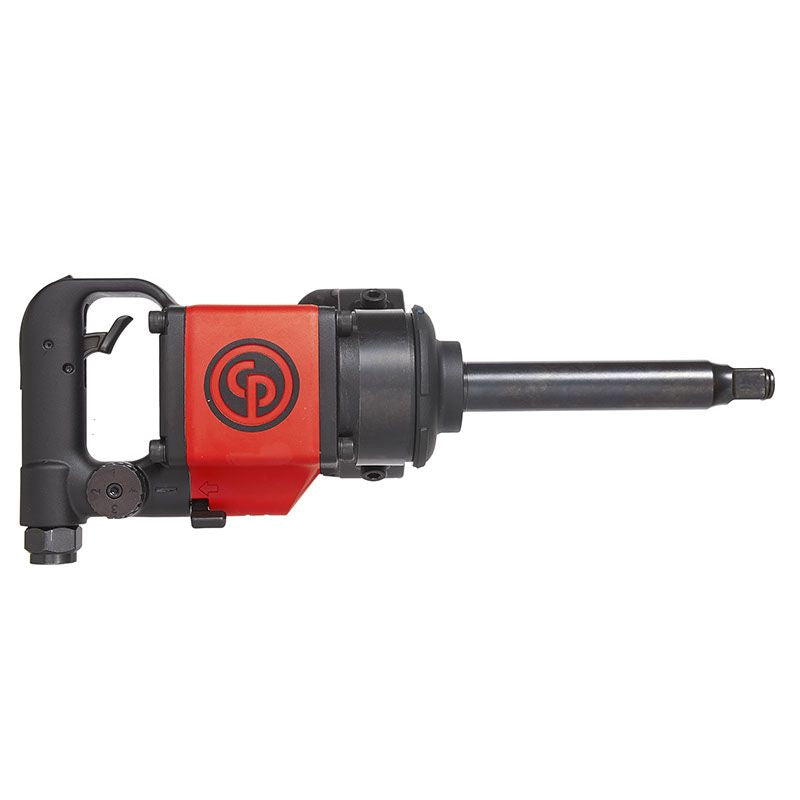

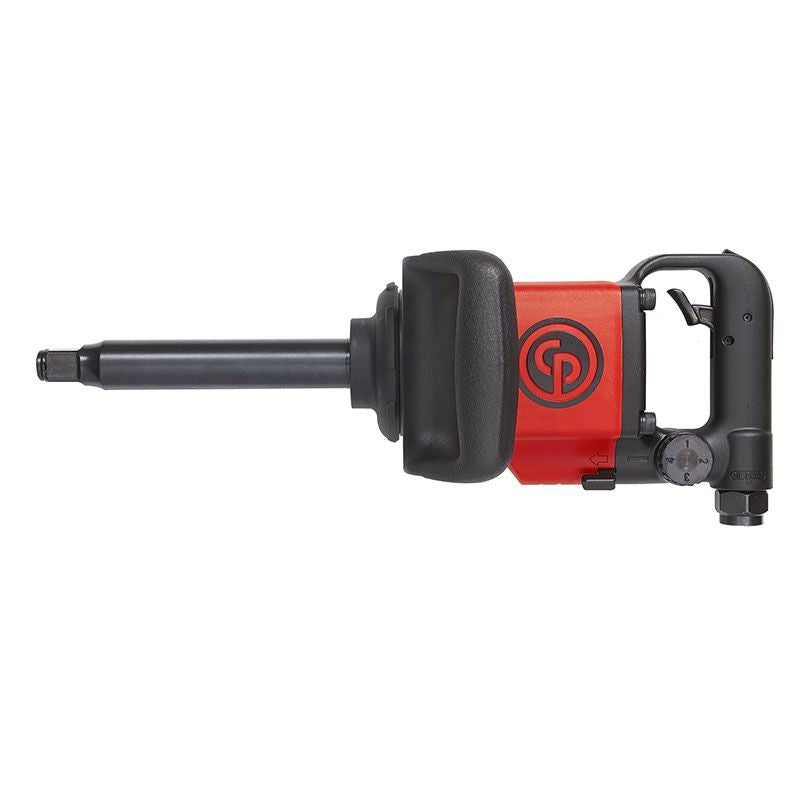

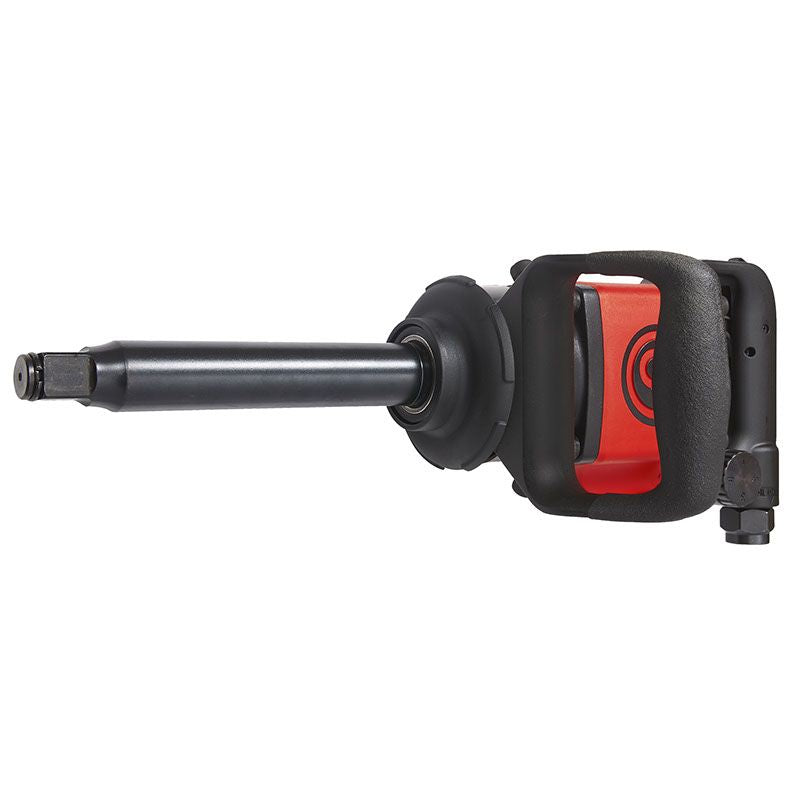

Chicago Pneumatic CP7763D-6 3/4" Impact Wrench - D Handle, 6" Ext โ 8941077637
3/4"pneumatic impact wrench
The CP7763/CP7773 Series impact wrench features 3/4" and 1" square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing. Its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4" pistol short anvil, 3/4" pistol long anvil, 3/4" D-handle short anvil, 3/4" D-handle long anvil (6" anvil), 1" D-handle short anvil, and 1" D-handle long anvil (6" anvil).
Features
- Composite housing and twin hammer impact mechanism for high durability
- A lightweight and compact tool in a composite motor housing that offers greater comfort
- Equipped with intuitive Forward / Reverse lever for easy operation
- Power regulator for a controlled approach
Specifications
| Max working torque fwd | 1070 ft.lbf |
| Max torque reverse | 1300 ft.lbf |
| Min working torque fwd | 251 ft.lbf |
| Torque limited | No |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Sound Power | 109 dB(A) |
| Sound Pressure | 98 dB(A) |
| Uncertainty vibration-K | 10.8 ft/sยฒ |
| Vibration (m/sยฒ) | 12 |
| Free Speed | 6600 rpm |
| Air consumption at free speed | 56 cfm |
| Length (L) | 17.52 in |
| Side to Center | 1.77 in |
| Weight | 16 lb |
| Body | Composite |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | Twin hammer |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Side handle | Yes |
| Starting system | Trigger |
| CP part # | 8941077637 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
