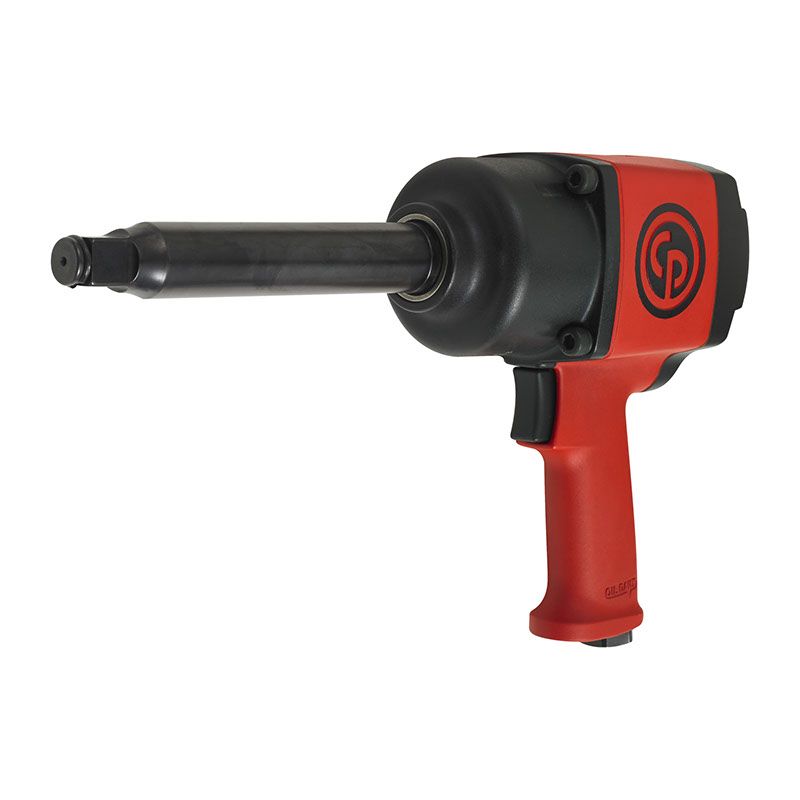

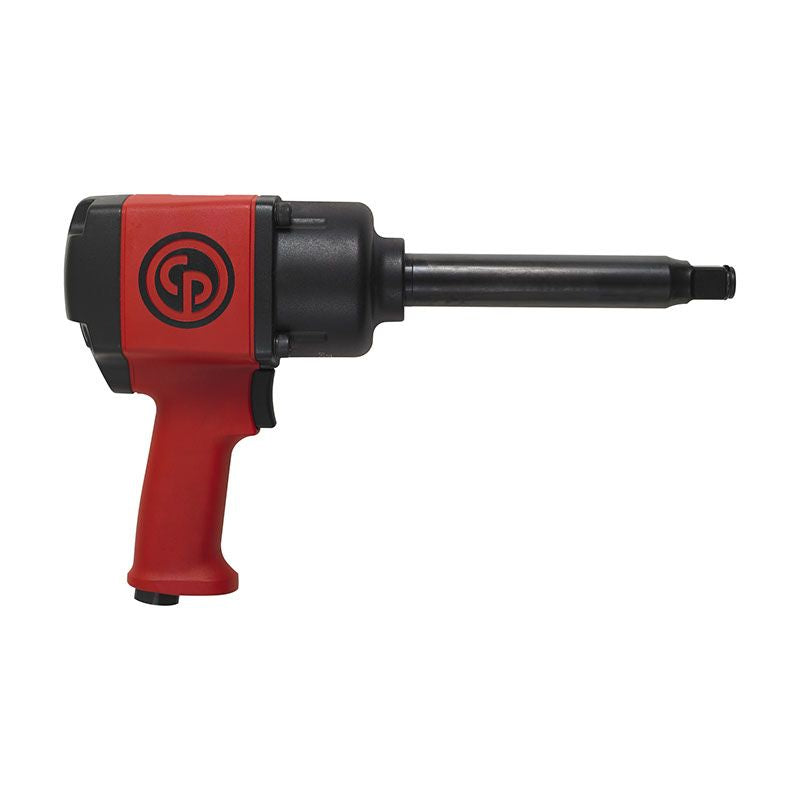

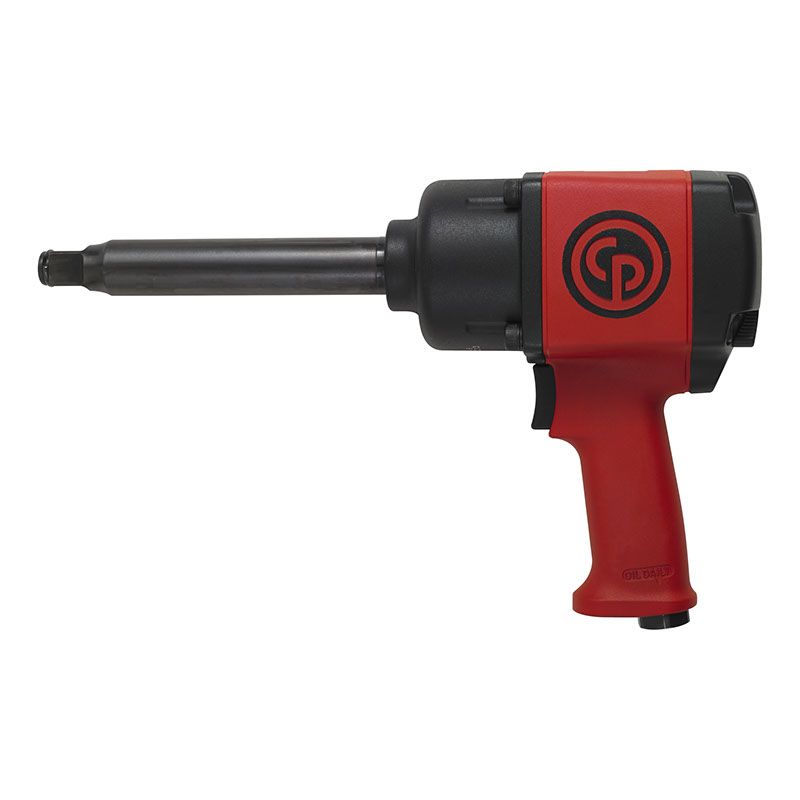

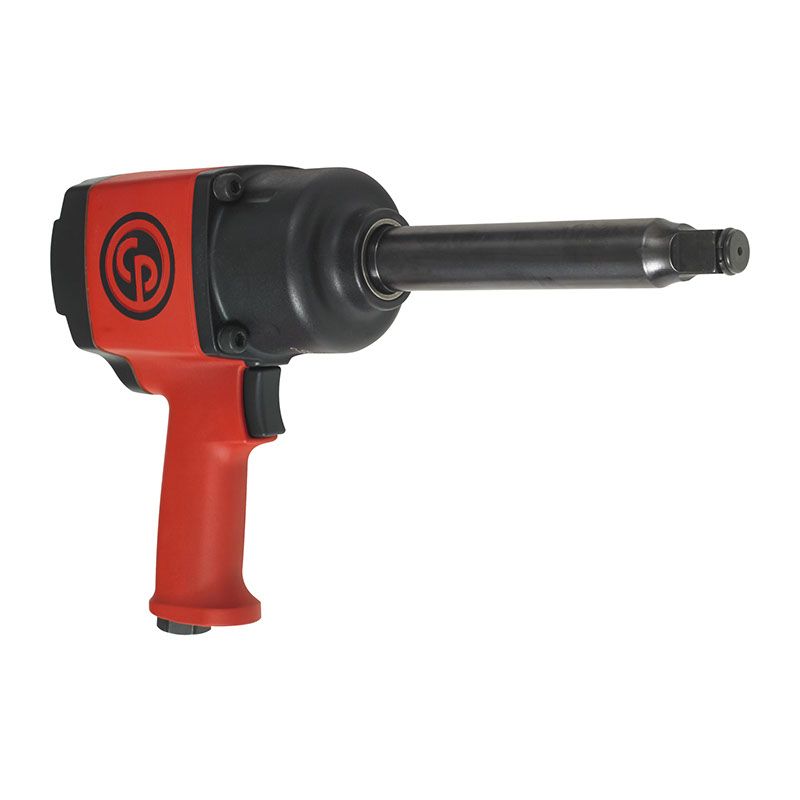

Chicago Pneumatic CP7763-6 3/4" Impact Wrench - 6" Ext โ 8941077636
3/4" pneumatic impact wrench
The CP7763/CP7773 Series impact wrench features 3/4" and 1" square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing. Its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4" pistol short anvil, 3/4" pistol long anvil, 3/4" D-handle short anvil, 3/4" D-handle long anvil (6" anvil), 1" D-handle short anvil, and 1" D-handle long anvil (6" anvil).
Features
- Composite housing and twin hammer impact mechanism for high durability
- A lightweight and compact tool in a composite motor housing that offers greater comfort
- Equipped with intuitive Forward / Reverse lever for easy operation
- Power regulator for a controlled approach
Specifications
| Max working torque fwd | 950 ft.lbf |
| Max torque reverse | 1200 ft.lbf |
| Min working torque fwd | 100 ft.lbf |
| Torque limited | No |
| Air consumption at load | 34 cfm |
| Air inlet thread size | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Uncertainty vibration-K | 13.8 ft/sยฒ |
| Vibration | 10.4 m/sยฒ |
| Free Speed | 6300 rpm |
| Length | 15 in |
| Power weight ratio | 250 Nm/kg |
| Side to Center | 1.77 in |
| Weight | 13.8 lb |
| Blow per minute | 900 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mechanism | Twin hammer |
| Output drive size | 3/4 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Starting system | Trigger |
| CP part # | 8941077636 |
