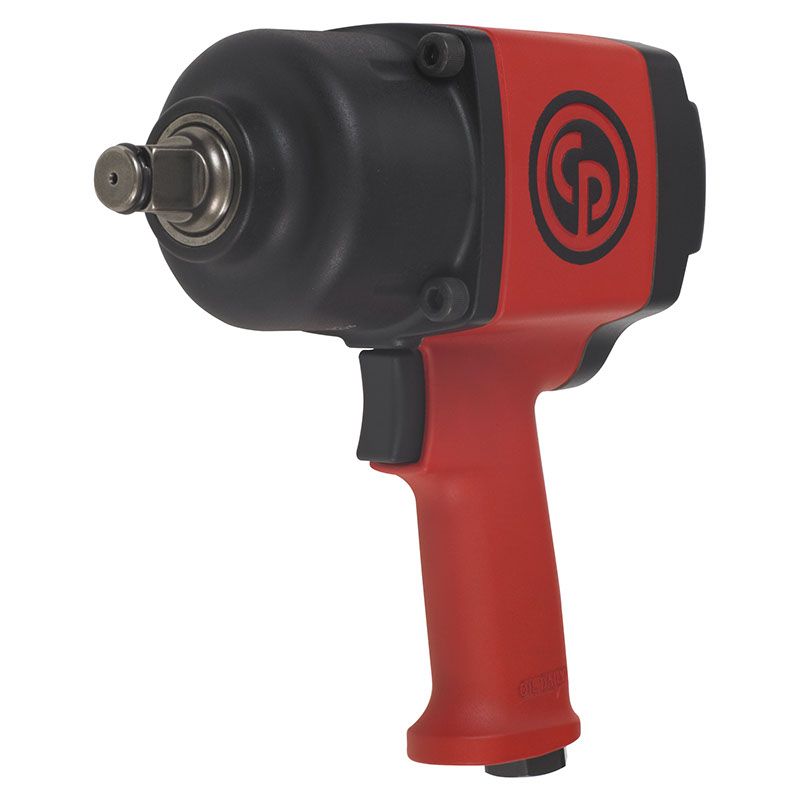

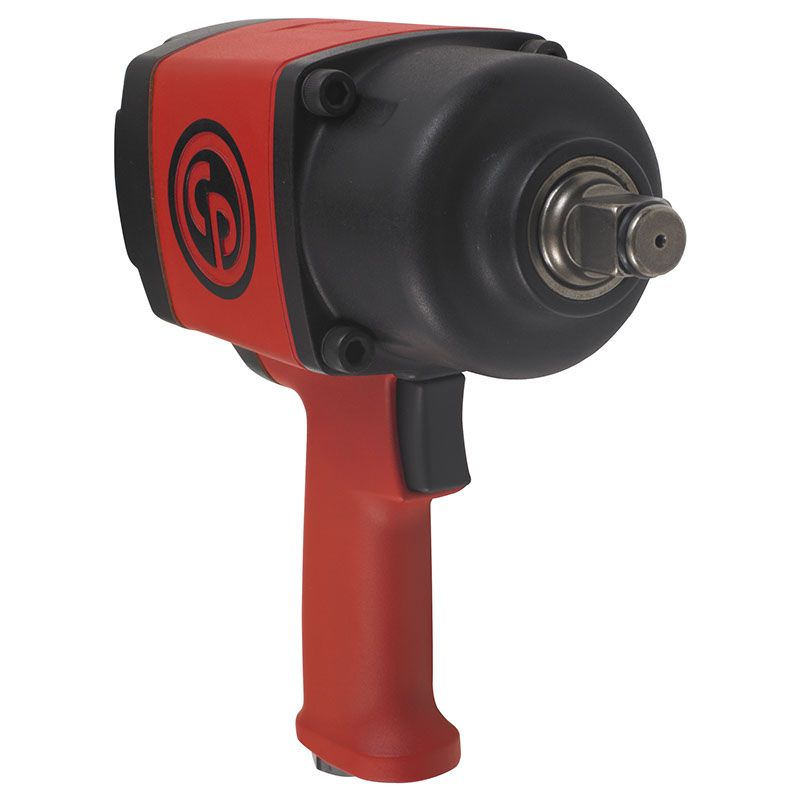

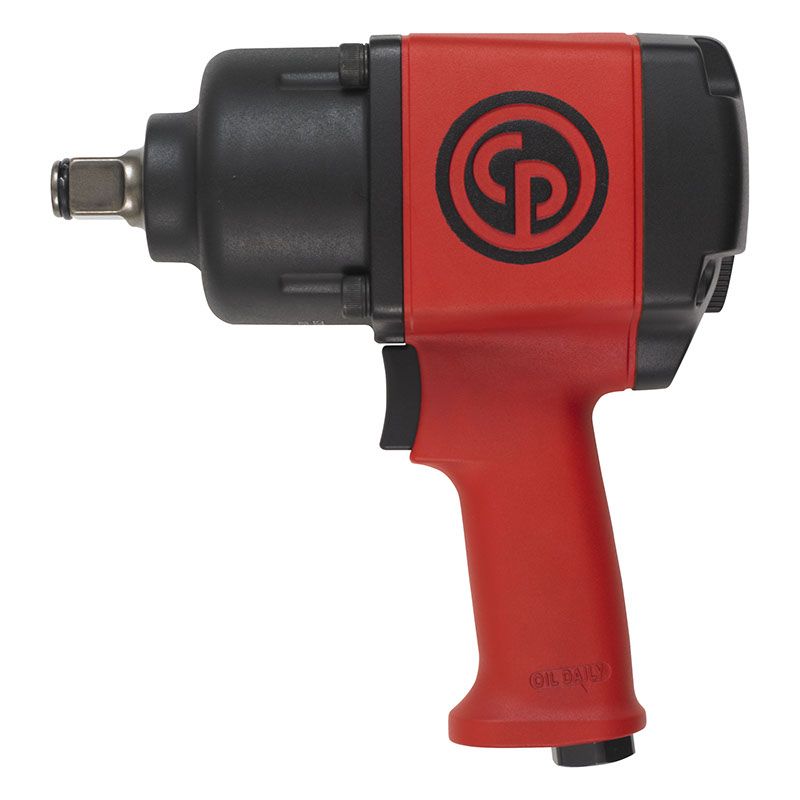

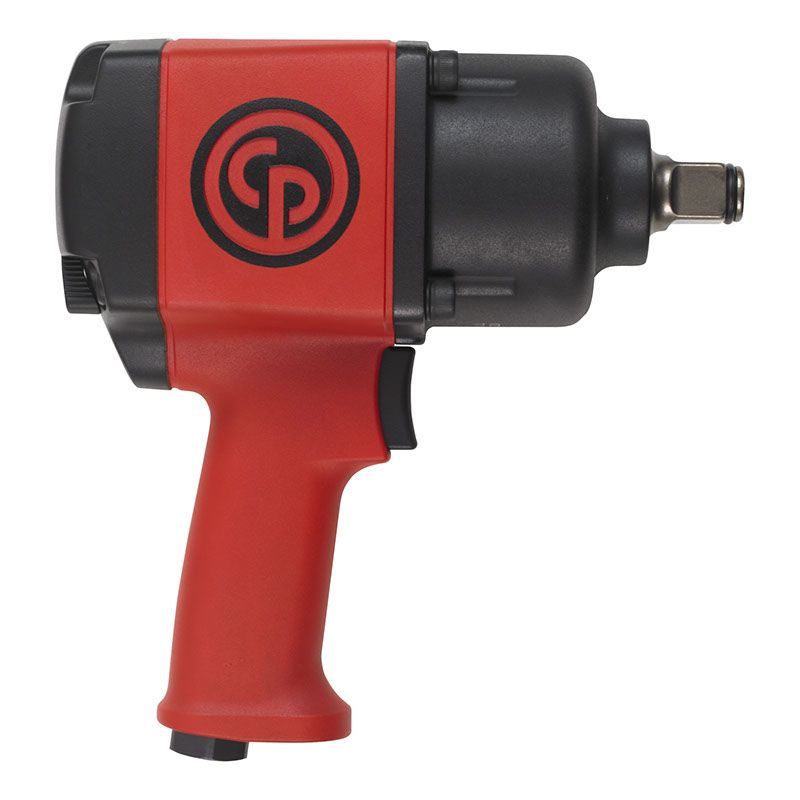

Chicago Pneumatic CP7763 3/4" Impact Wrench โ 8941077630
3/4"pneumatic impact wrench
The CP7763/CP7773 Series impact wrench features 3/4" and 1" square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing. Its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4" pistol short anvil, 3/4" pistol long anvil, 3/4" D-handle short anvil, 3/4" D-handle long anvil (6" anvil), 1" D-handle short anvil, and 1" D-handle long anvil (6" anvil).
Features
- Composite housing and twin hammer impact mechanism for high durability
- A lightweight and compact tool in a composite motor housing that offers greater comfort
- Equipped with intuitive Forward / Reverse lever for easy operation
- Power regulator for a controlled approach
Specifications
| Max working torque fwd | 950 ft.lbf |
| Max torque reverse | 1200 ft.lbf |
| Min working torque fwd | 100 ft.lbf |
| Air consumption at load | 34 cfm |
| Air inlet thread size | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Vibration | 10.4 m/sยฒ |
| Free Speed | 6300 rpm |
| Length | 9.02 in |
| Weight | 11.5 lb |
| Blow per minute | 900 |
| Body | Aluminium |
| Output drive size | 3/4 |
| Impact mechanism | Twin hammer |
| CP part # | 8941077630 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941077630
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
