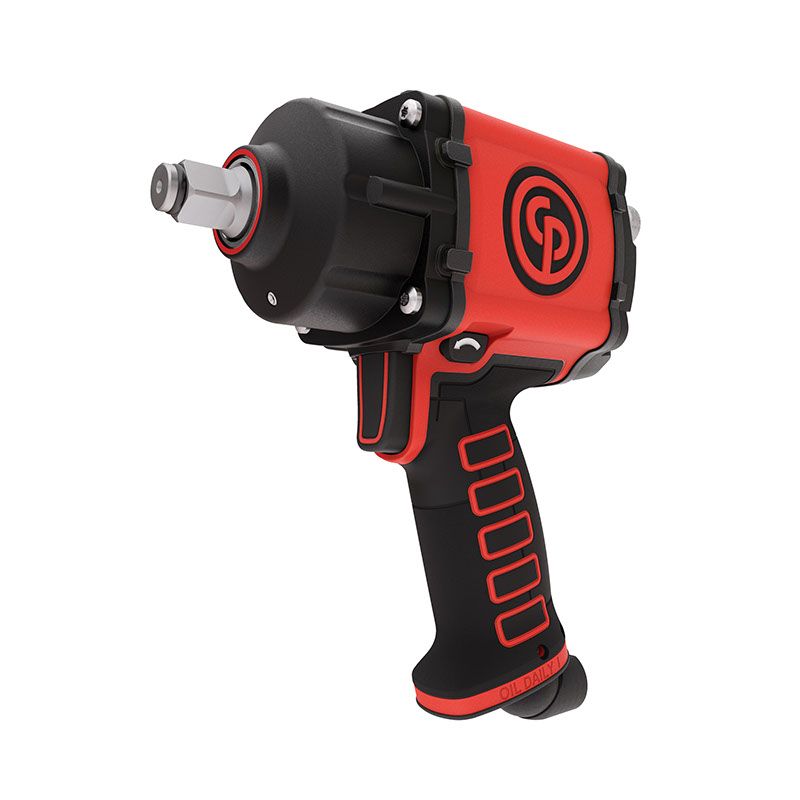

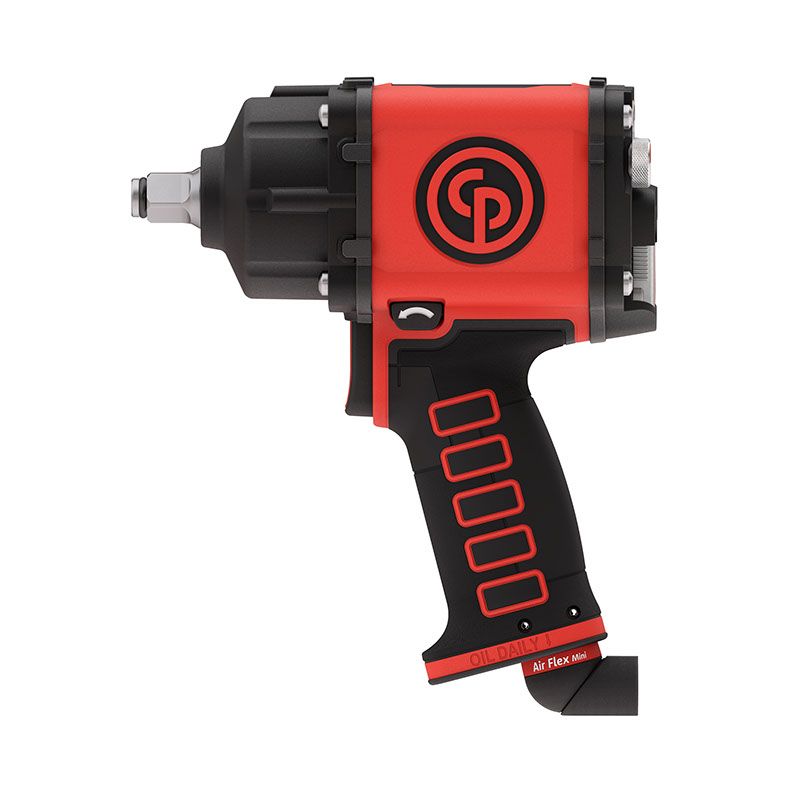

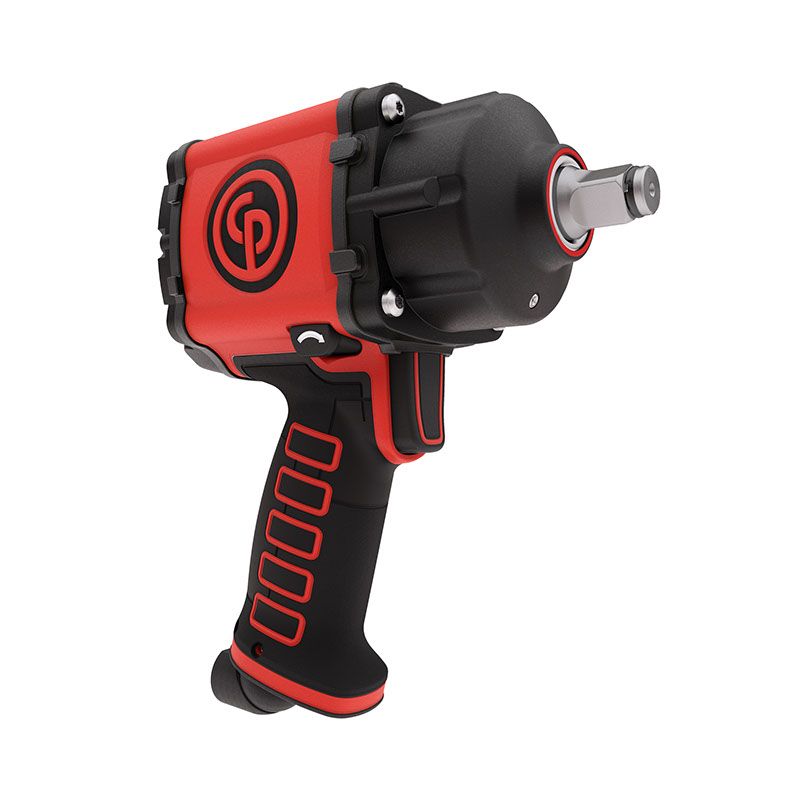

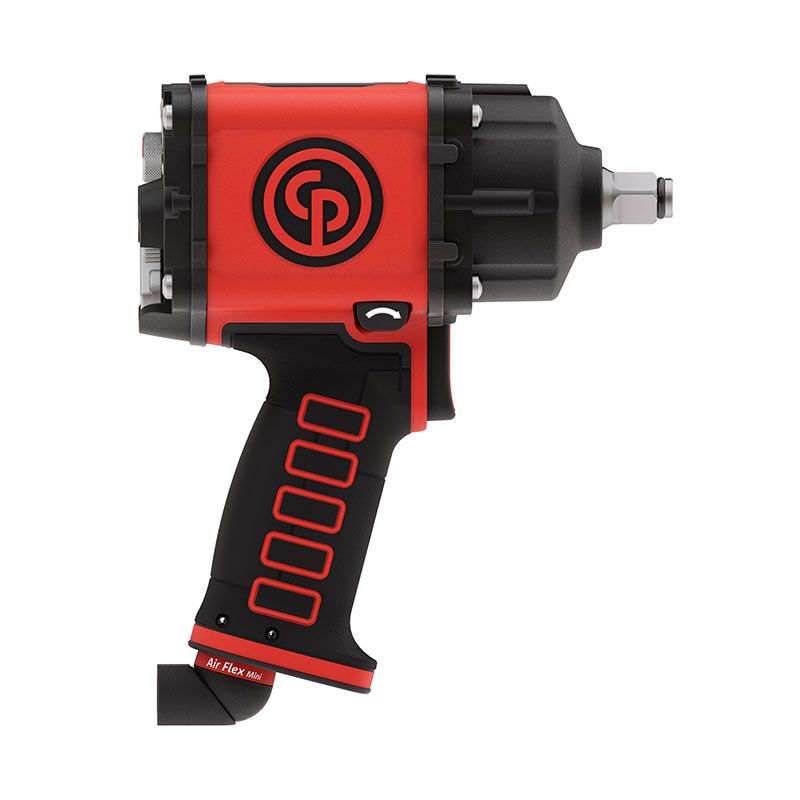

Chicago Pneumatic CP7755 Flex 1/2" Impact Wrench Mini Air Flex โ 8941077551
1/2" pneumatic impact wrench - short anvil - air flex mini
The CP7755 Series 1/2" impact wrench allows operators to select the right power with 11 settings in forward on its innovative adjustable power control. The hose is no longer an issue thanks to the integrated pneumatic flex mini pneumatic inlet. The series delivers reverse torque up to 960 ft.lbs. Available in 4 models: 1/2" short anvil with pneumatic Flex mini, 1/2" long anvil with pneumatic Flex mini, 1/2" short anvil without pneumatic Flex mini and 1/2" long anvil without pneumatic Flex mini.
Features
- Unique multi-position power control system: 11 setting options
- Patented Air Flex Mini air inlet: 360ยฐ swivel air inlet for freedom of movement
- Twin hammer impact mechanism, hard chromium aluminium cylinder, and bumpers all around the tool for high durability
- Due to its composite motor housing, the tool is compact and lightweight
Specifications
| Max working torque fwd | 424 ft.lbf |
| Max torque reverse | 959 ft.lbf |
| Min working torque fwd | 59 ft.lbf |
| Air inlet thread size | 1/2 in |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 105 dB(A) |
| Sound Pressure | 94 dB(A) |
| Free Speed | 7700 rpm |
| Air consumption at free speed | 5.5 cfm |
| Height | 8.07 in |
| Length | 6.65 in |
| Width | 2.99 in |
| Weight | 4.25 lb |
| Blow per minute | 1200 |
| Body | Composite |
| Handle type | Pistol |
| Output drive size | 1/2 in |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| CP part # | 8941077551 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941077551
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
