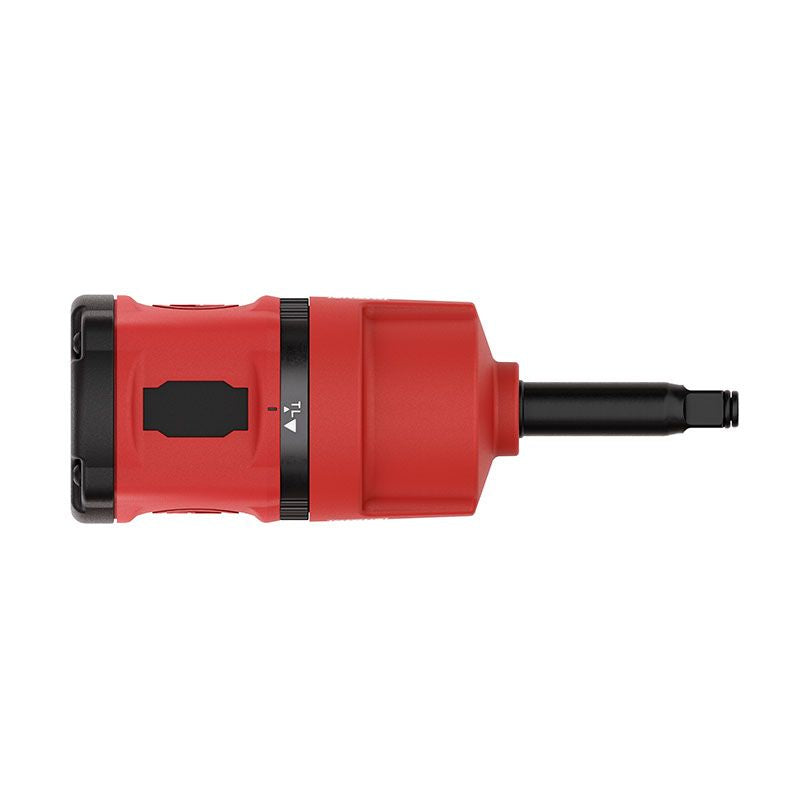

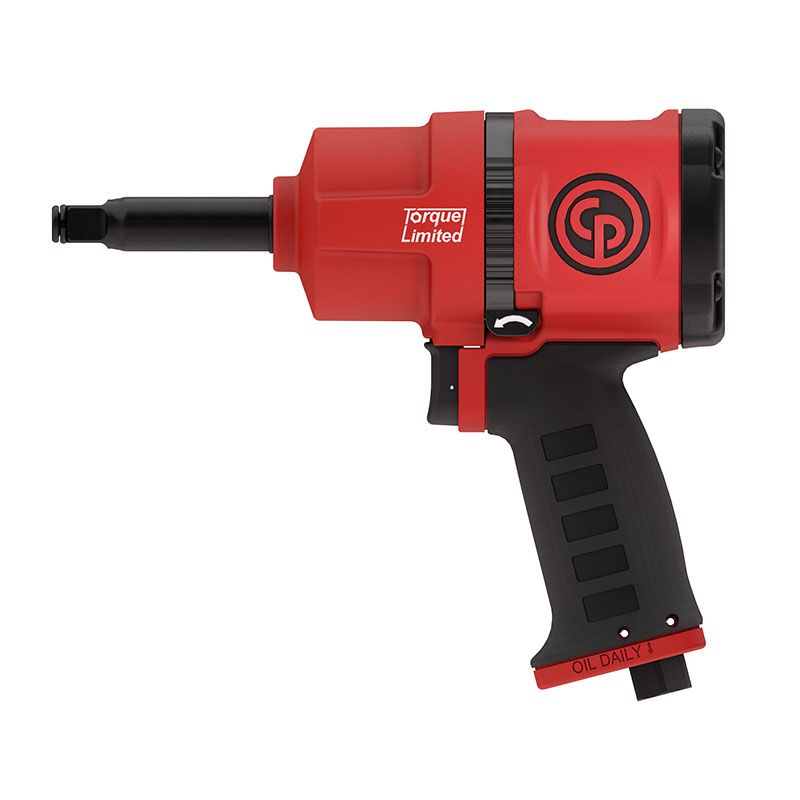

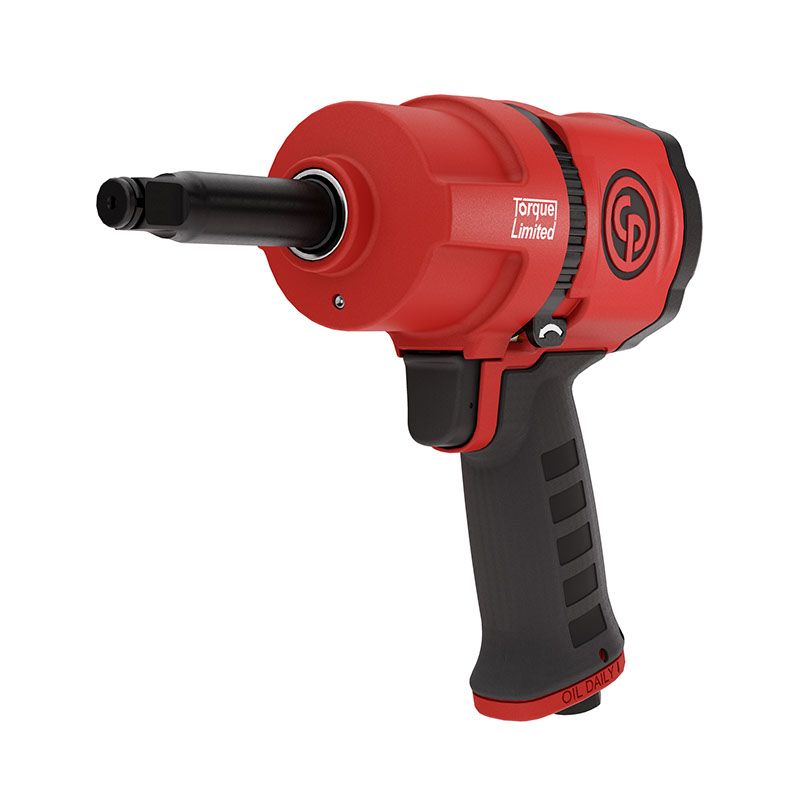

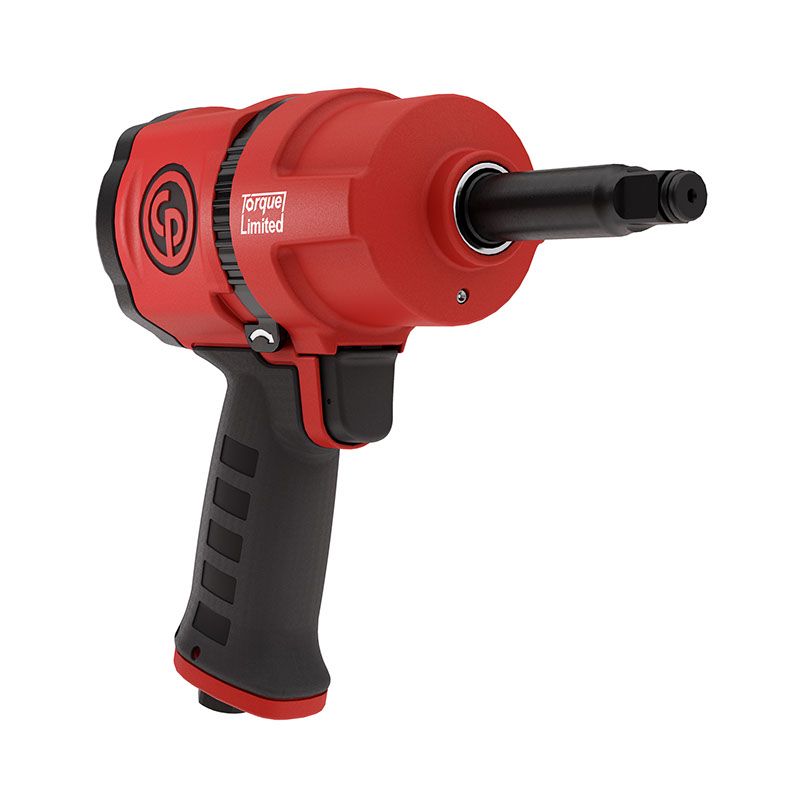

Chicago Pneumatic CP7748TL-2 Impact Wrench โ 8941077488
Cp7748tl-2 impact wrench
Designed for tire changing applications with a torque limited in forward to 60-70 ft. Lbs / 90-140 Nm and a maximum torque in reverse of 920 ft.lbs / 1,250 Nm, the CP7748TL series limits the risk of over tightening during the tightening phase while also being very powerful when nuts or bolts have to be removed.
Features
- Torque limited in forward to limit the risk of over tightening and maximum torque in reverse
- Lightweight (4.65 lbs โ 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort
- Composite housing, twin hammer impact mechanism, hard anodized end plates, and hard chromium aluminum cylinder for high durability
- Low vibration tool due to lower torque in forward.
- Curved rubber handle to help prevent slipping
Specifications
| Max working torque fwd | 103 ft.lbf |
| Max torque reverse | 959 ft.lbf |
| Min working torque fwd | 66.4 ft.lbf |
| Torque limited | Yes |
| Air consumption at load | 25 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 105.3 dB(A) |
| Sound Pressure | 94.3 dB(A) |
| Uncertainty vibration-K | 12.5 ft/sยฒ |
| Free Speed | 7000 rpm |
| Height (H) | 7.87 in |
| Length (L) | 8.86 in |
| Width (W) | 3.07 in |
| Side to Center | 1.54 in |
| Weight | 4.65 lb |
| Blow per minute | 1350 |
| Body | Composite |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Main Material type | Composite |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| CP part # | 8941077488 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
