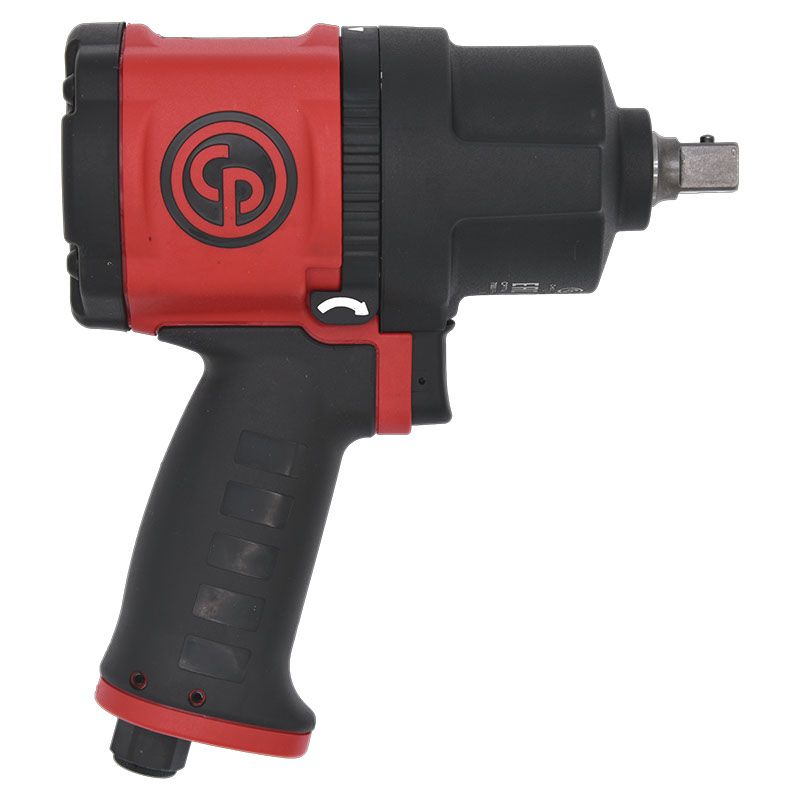

Chicago Pneumatic CP7748P Impact Wrench 1/2" - Pin Retainer โ 8941177484
Cp7748-p pin style impact wrench
The CP7748 series impact wrench with its torque of 960ft.lbs / 1,300 Nm, twin hammer impact mechanism, and composite housing is powerful and durable and ensures efficient bolting and unbolting when changing wheels and tires on light vehicles. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748 series is composed of 3 models: 1/2" short anvil with Friction Ring retainer; 1/2" short anvil with Pin-Style retainer; and 1/2" extended anvil with Friction Ring retainer.
Features
- Lightweight (4.65 lbs โ 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort
- 960 ft.lbs / 1,300 Nm of max torque in reverse position for high productivity
- Curved rubber handle to help prevent slipping
- One-hand reverse system (Ring system) for better ergonomics
- Composite housing
- Twin hammer impact mechanism
- Hard anodized end plates
- Chromium aluminum cylinder for high durability
Specifications
| Max working torque fwd | 53.1 ft.lbf |
| Max torque reverse | 922 ft.lbf |
| Min working torque fwd | 575 ft.lbf |
| Torque limited | No |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 105.3 dB(A) |
| Sound Pressure | 94.5 dB(A) |
| Uncertainty vibration-K | 14.8 ft/sยฒ |
| Free Speed | 9200 rpm |
| Height (H) | 7.87 in |
| Length (L) | 7.24 in |
| Width (W) | 3.07 in |
| Side to Center | 1.54 in |
| Weight | 4.41 lb |
| Blow per minute | 1350 |
| Body | Composite |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Output drive size | 1/2 |
| Output drive type | Sq |
| Output retainer type | Pin retainer |
| Starting system | Trigger |
| CP part # | 8941177484 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
