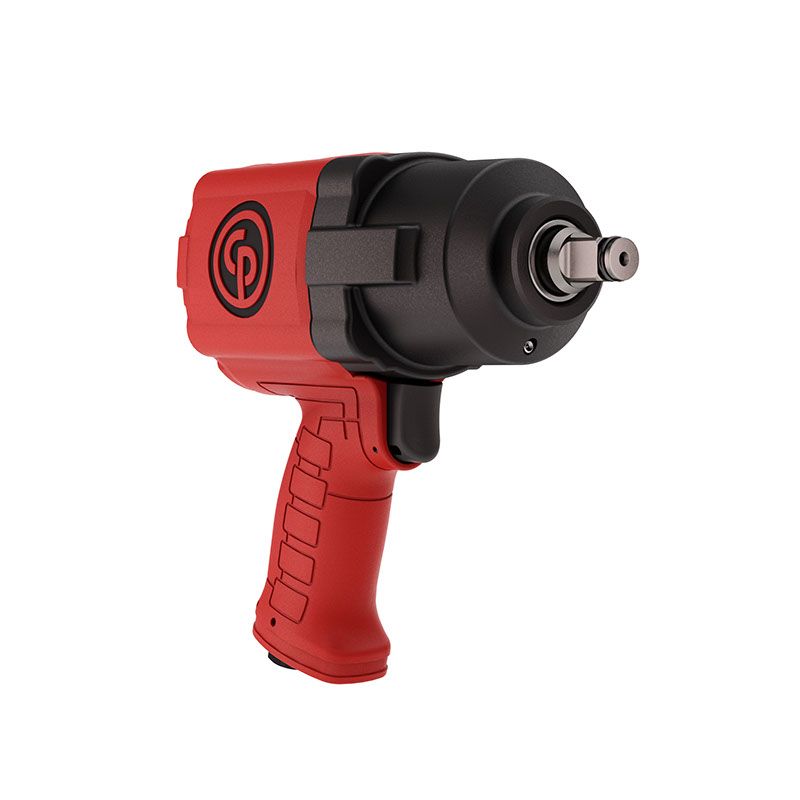

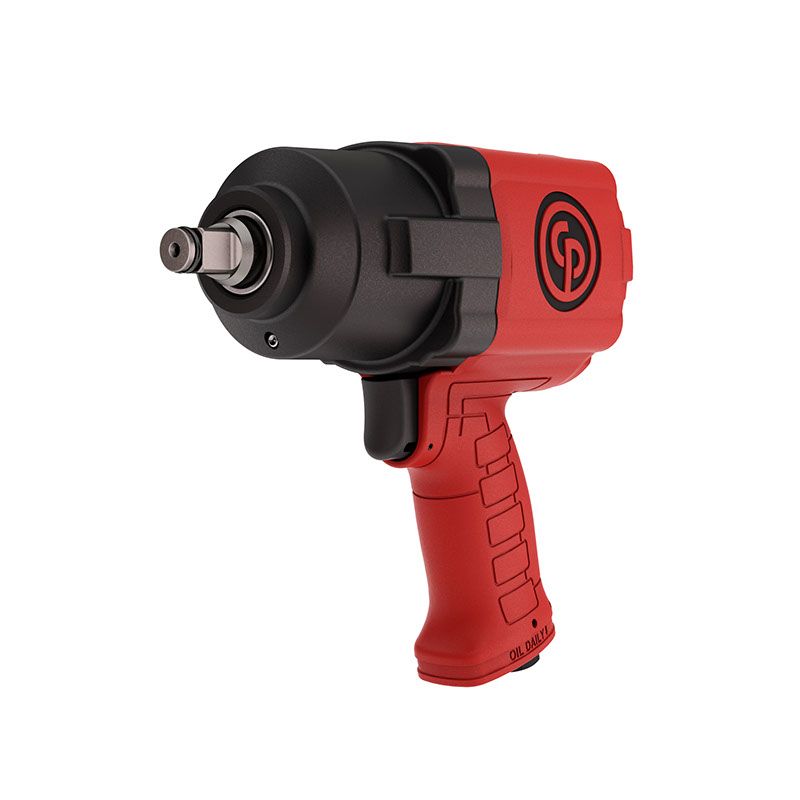

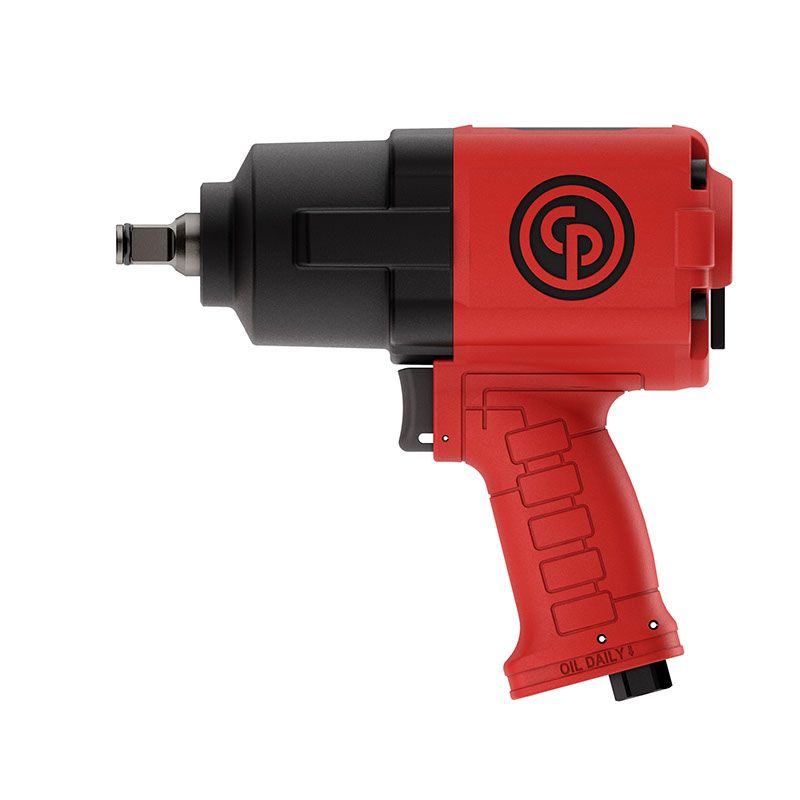

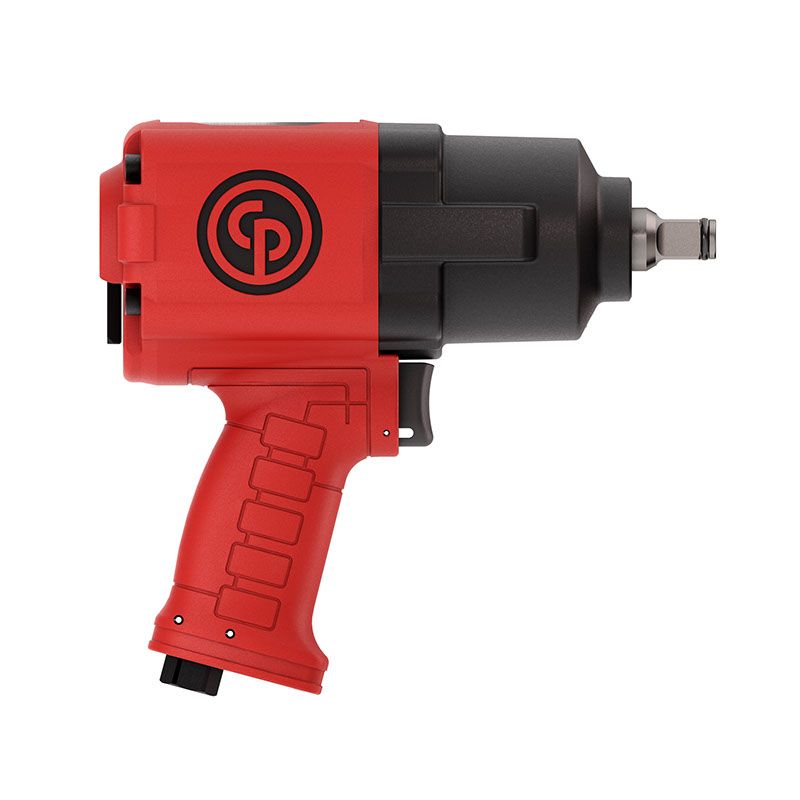

1/2" Pneumatic impact wrench

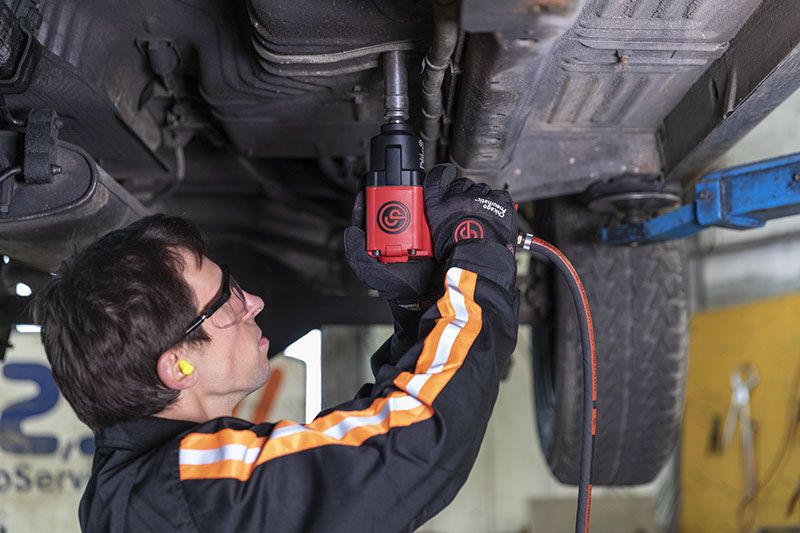

To better serve its customers working in tire changing or maintenance applications, Chicago Pneumatic enhanced one of its ยฝ" pneumatic impact wrench bestsellers: the CP7741 series (former CP7736 series). For operators looking for a powerful and durable tool with an affordable price, the CP7741 series, 1/2" pneumatic impact wrench, is the best in choice tool. This new series offers more robustness and durability than its old version. The motor, the gasket and plenty of parts have been improved to last longer.
Features
- Qualitive parts as well as its attractive price makes of this series, a good quality & value for money one
- With only 2.25kg and being 15% lighter than its former version, the CP7741 offers high comfort to its operators
- Less heat transfer between the motor and the handle is provided thanks to its composite housing
Specifications
| Max working torque fwd | 509 ft.lbf |
| Max torque reverse | 715 ft.lbf |
| Min working torque fwd | 88.5 ft.lbf |
| Air consumption at load | 19 cfm |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92.6 dB(A) |
| Free Speed | 10000 rpm |
| Height | 7.2 in |
| Length | 7.64 in |
| Width | 2.99 in |
| Weight | 4.96 lb |
| Output drive size | 1/2 |
| Blow per minute | 1005 |
| CP part # | 8941077410 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941077410
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
