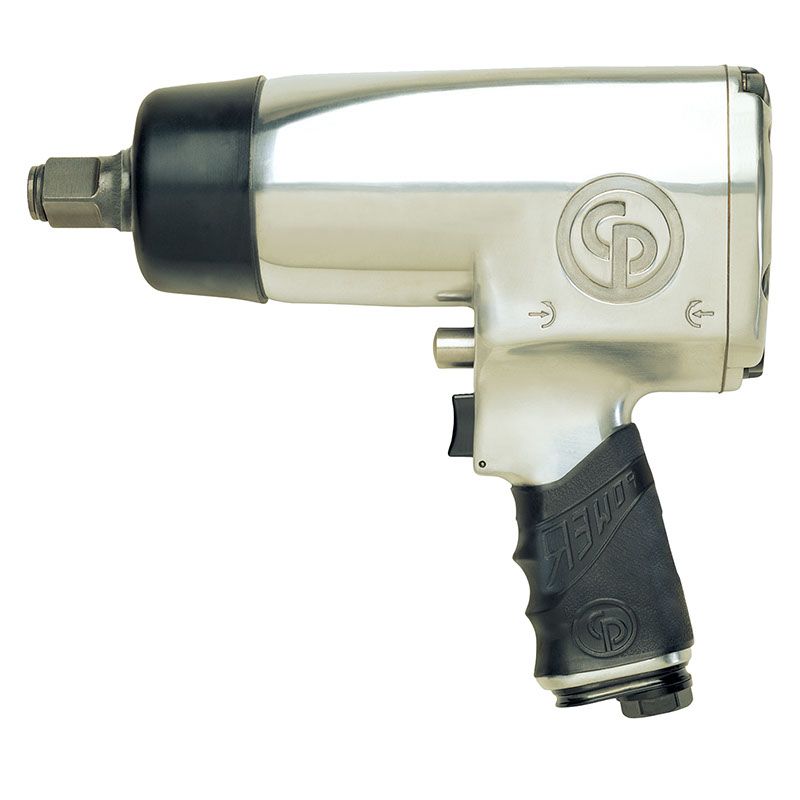

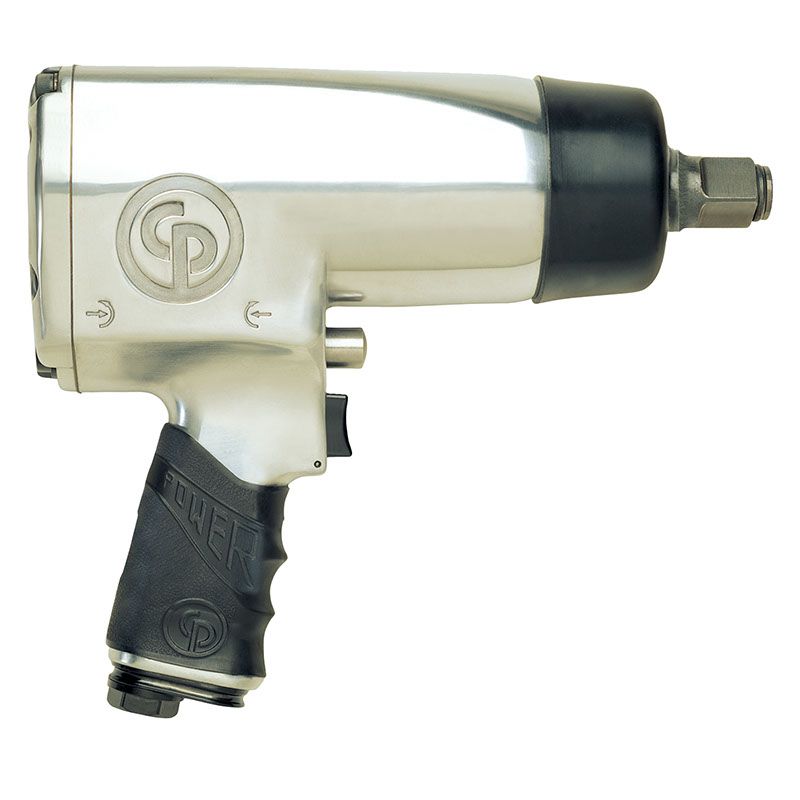

Chicago Pneumatic CP772H 3/4" Impact Wrench – T024598

Description

3/4"pneumatic impact wrench

The CP772 Series is the "Classic" 3/4" impact wrench, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability.

Features

• Metal motor housing with pin clutch mechanism in oil bath (dyna-pact) for high durability and smooth operations
• Comfortable tool with rubber grip and reverse button with 4 positive power settings

Specifications

Max working torque fwd	700 ft.lbf
Max torque reverse	1000 ft.lbf
Min working torque fwd	150 ft.lbf
Torque limited	No
Air inlet thread size (in)	3/8
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.5 in
Sound Power	107 dB(A)
Sound Pressure	96 dB(A)
Vibration (m/s²)	5.8
Free Speed	4200 rpm
Length (L)	9.65 in
Weight	10.4 lb
Blow per minute	900
Body	Aluminum
Clutch housing	Aluminum
Clutch lubrication type	Oil bath
Handle type	Pistol
Impact mecanism	Pin clutch
Output drive size (in)	3/4
Output drive type	Sq
Output retainer type	Friction ring
Starting system	Trigger
CP part #	T024598

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
