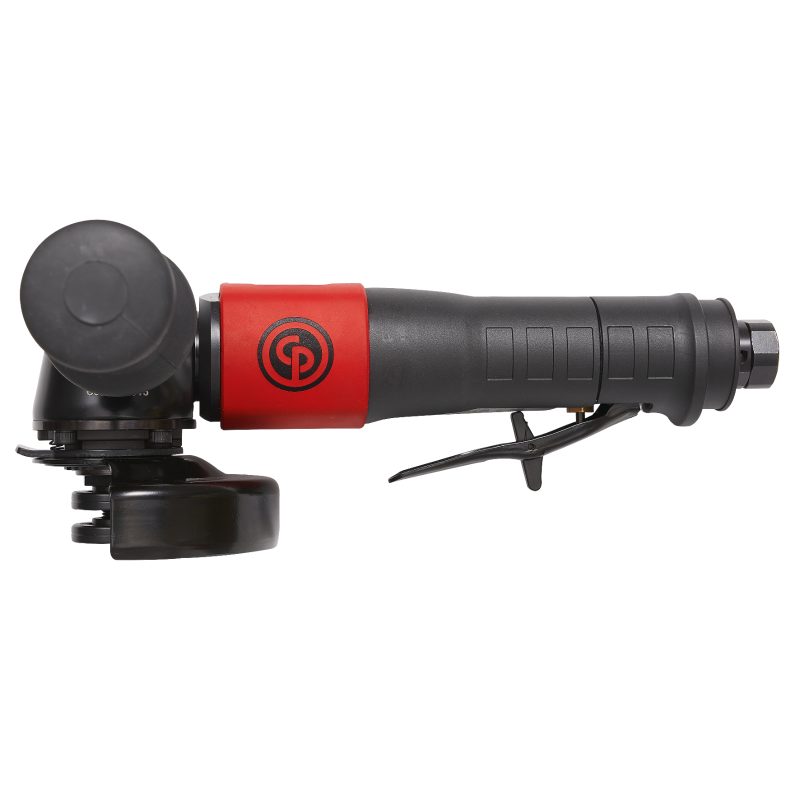

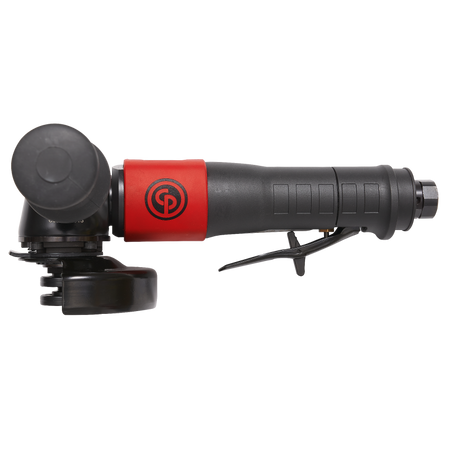

Chicago Pneumatic CP7540CN 4" Angle Grinder โ 8941075400
4"(100 mm) PNEUMATIC ANGLE GRINDER
Designed for variety of applications such as sanding with flap discs, grinding, and cutting, this angle grinder series offers high efficiency with its power of 1.1 hp (840 W) and high durability with its high quality bevel gears and governed motor.
Features
- High durability thanks to its high quality bevel gears and governed motor
- High security with its robust steel keyless adjustable wheel rotative guard and its CP safety Lever
- Streamline composite handle (right or left) and composite grip for better operator comfort
- Rear exhaust (exhaust hose included)
- 360ยฐ swivel air inlet
Specifications
| Free Speed | 12000 rpm |
| Air consumption at free speed | 19 cfm |
| Sound Power | 96 dB(A) |
| Sound Pressure | 85 dB(A) |
| Vibration | 21.3 ft/sยฒ |
| Air consumption at load | 40 cfm |
| Max dynamic air working pressure | 90 psi |
| Max power | 1.13 hp |
| Length (L) | 10.63 in |
| Weight | 3.53 lb |
| Wheel/Disc diameter | 4 in (100 mm) |
| Output Spindle Thread | 3/8-24 UNF |
| Air inlet thread size | 1/4 NPT |
| CP part # | 8941075400 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
