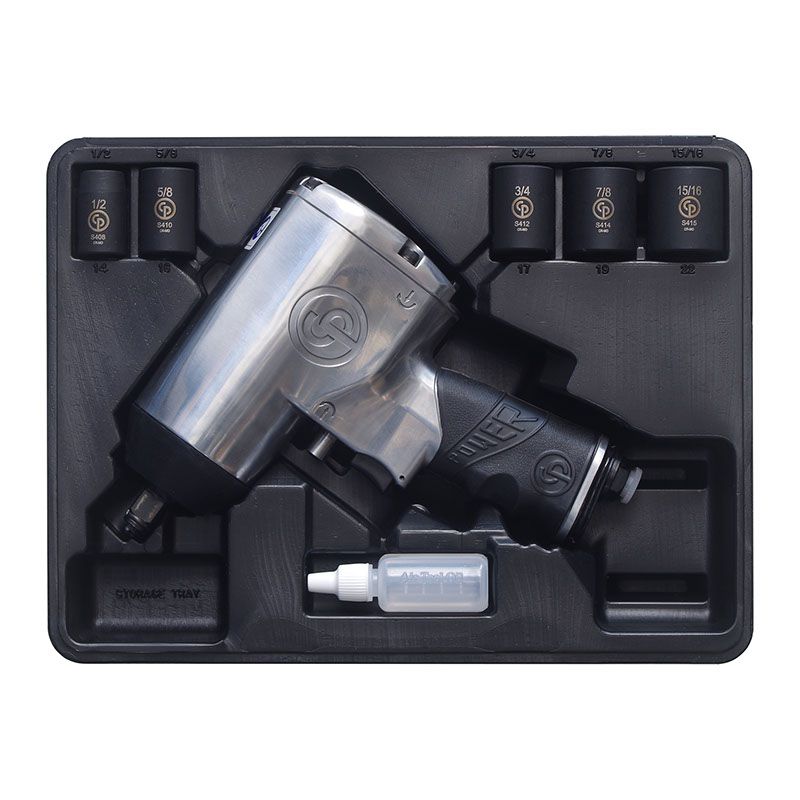

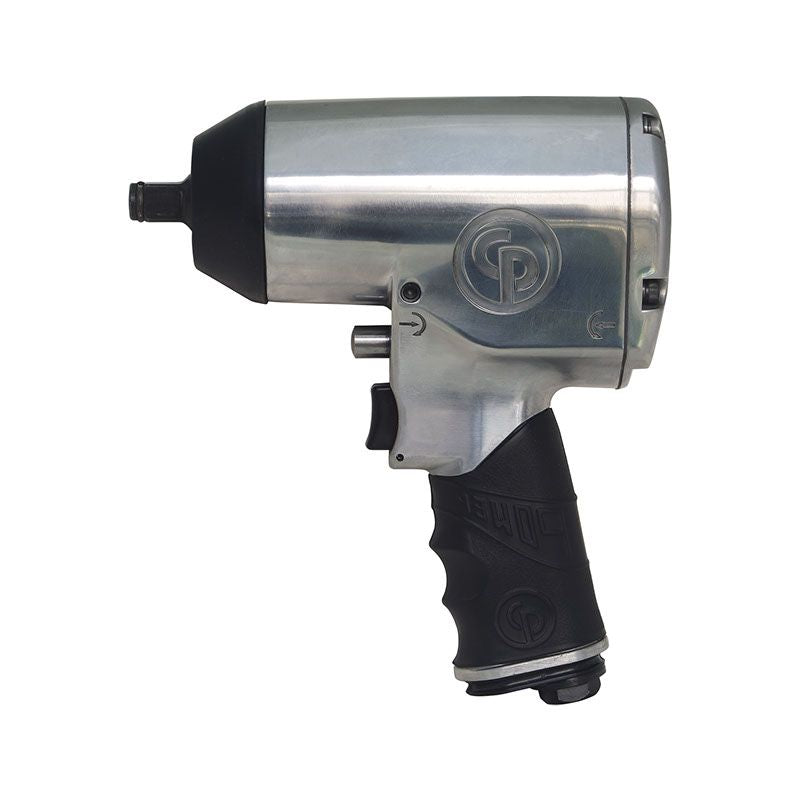

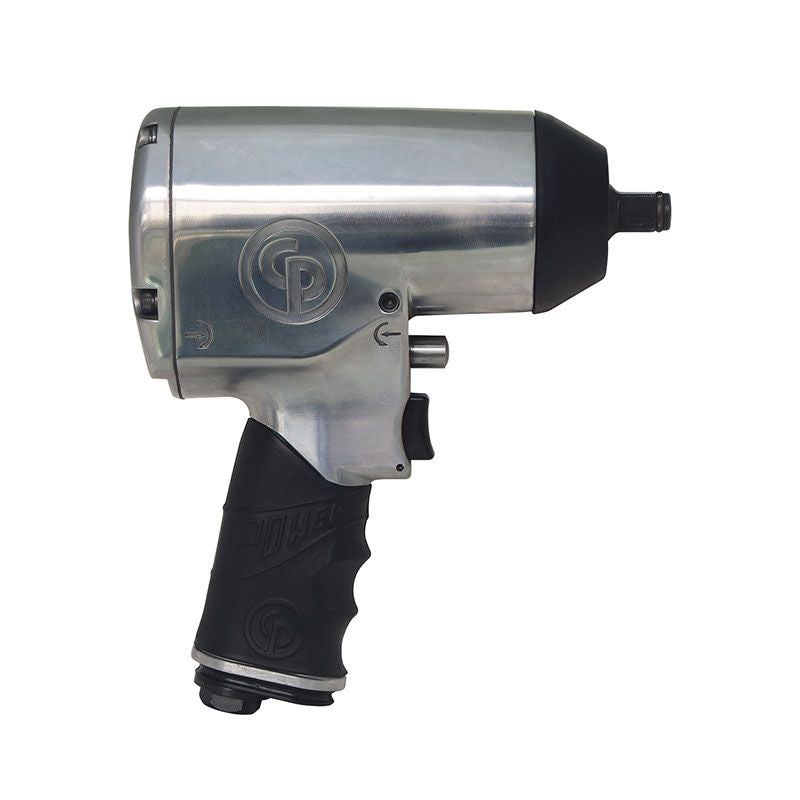

1/2" pneumatic impact wrench
CP749 Series 1/2" impact wrench belongs to our Classic range. With its patented clutch mechanism in oil bath and metal motor housing, it is renowned for its durability. Efficient loosening and tightening of nuts is ensured with a torque of 610 ft.lbs / 827 Nm. The CP749 Series consists of 2 models: 1/2" short anvil and 1/2" long anvil.
Features
- Metal motor housing with CP's patented clutch in oil bath for high durability
- 4-power settings for better versatility
- Compact design with comfortable contoured handle
Specifications
| Max working torque fwd | 450 ft.lbf |
| Max torque reverse | 610 ft.lbf |
| Min working torque fwd | 50.2 ft.lbf |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Free Speed | 6400 rpm |
| Length | 7.01 in |
| Weight | 5.51 lb |
| Blow per minute | 1320 |
| Output drive size | 1/2 |
| CP part # | T024587 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model T024587
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
