Chicago Pneumatic CP7411 1/4" Die Grinder โ 8941074110
1/4"(6 mm) PNEUMATIC DIE GRINDER

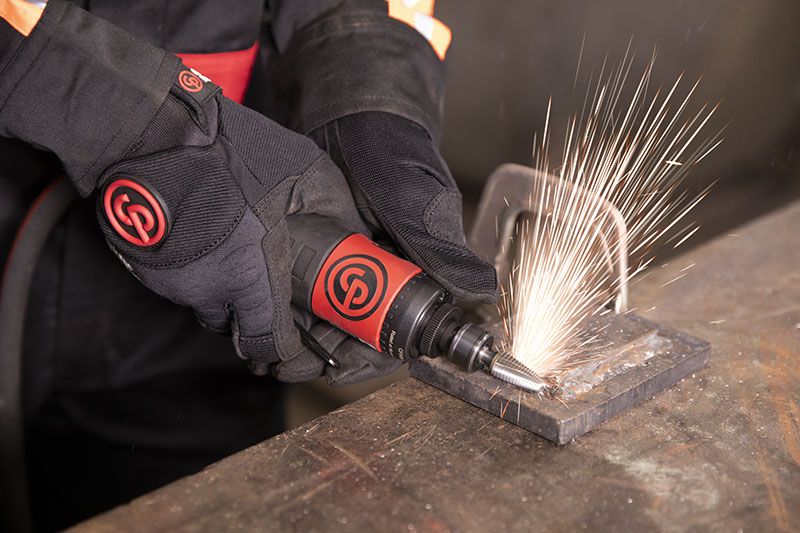

Designed for body shop and MRO applications, the CP74 series with its spindle lock system offers easiness to the operator to change carbide burrs by only using one wrench. Thanks to its different heads (short & long straight, 120ยฐ, 90ยฐ), the CP74 series offers high application coverage. Its surface grip and its composite housing provide comfort day-to-day to the operator.
Features
- Burrs easily changeable allowing the operator to use only one wrench thanks to the new spindle lock system.
- Good surface grip avoiding the tool to slip once in operator's hand thanks to the handle's material (TPR) and ergonomics.
- High application coverage thanks to the multitude of heads (short & long straight, 120ยฐ, 90ยฐ)
- Less heat transfer between the motor and the sleeve thanks to the composite housing
Specifications
| Length (L) | 7.09 in |
| Weight | 1.54 lb |
| Free Speed | 22000 rpm |
| Air consumption at free speed | 3.6 cfm |
| Air consumption at load | 3 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 91.7 dB(A) |
| Sound Pressure | 80.7 dB(A) |
| Uncertainty vibration-K | 2.6 ft/sยฒ |
| Angle Type | Straight |
| Max power | 0.56 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Exhaust | Rear |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | Yes |
| Starting system | Safety lever |
| CP part # | 8941074110 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941074110
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
