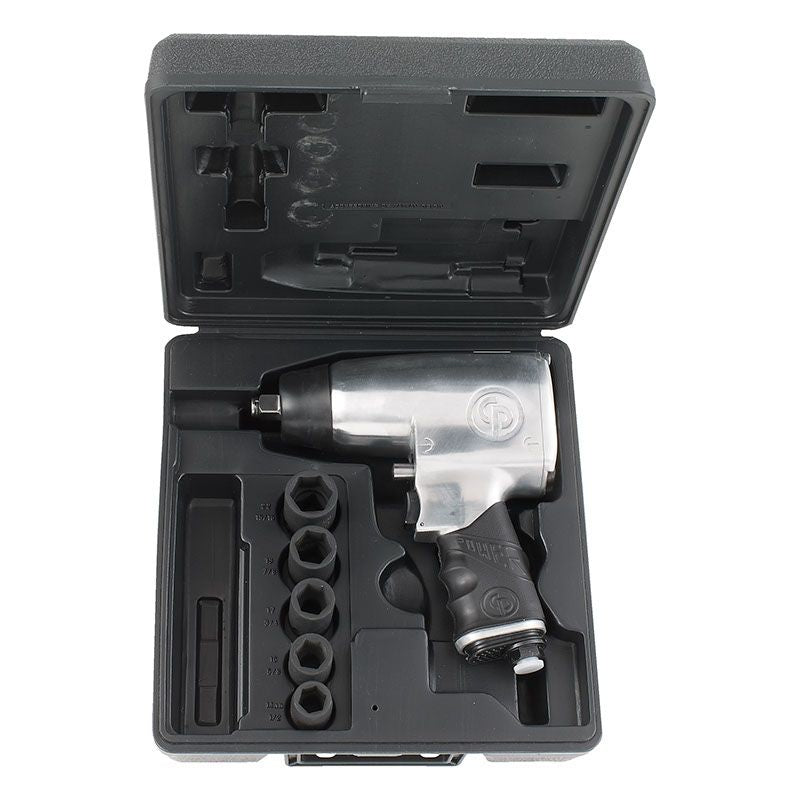

Kit- 1/2" pneumatic impact wrench
The "Classic" reference in the 1/2" impact wrench range, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability.
Features
- Metal motor housing with pin clutch mechanism in oil bath (dyna-pact) for high durability and smooth operations
- Comfortable tool with rubber grip and reverse button with 4 positive power settings
Specifications
| Max working torque fwd | 310 ft.lbf |
| Max torque reverse | 425 ft.lbf |
| Min working torque fwd | 25.1 ft.lbf |
| Air inlet thread size | 1/4 in |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Free Speed | 8400 rpm |
| Length | 7.52 in |
| Weight | 5.11 lb |
| Output drive size | 1/2 in |
| Blow per minute | 1020 |
| CP part # | T025163 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model T025163
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
