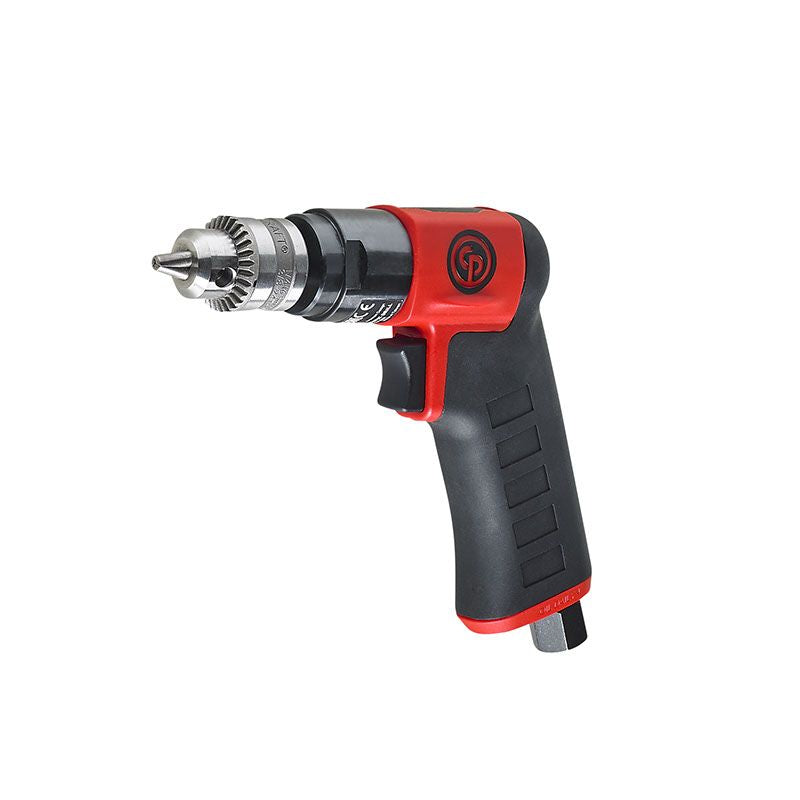

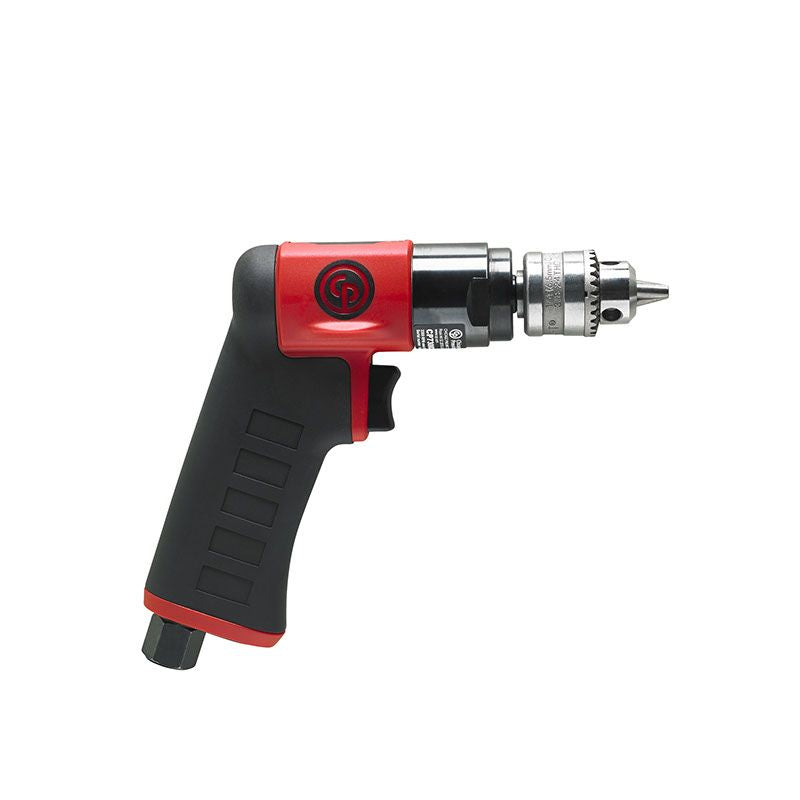

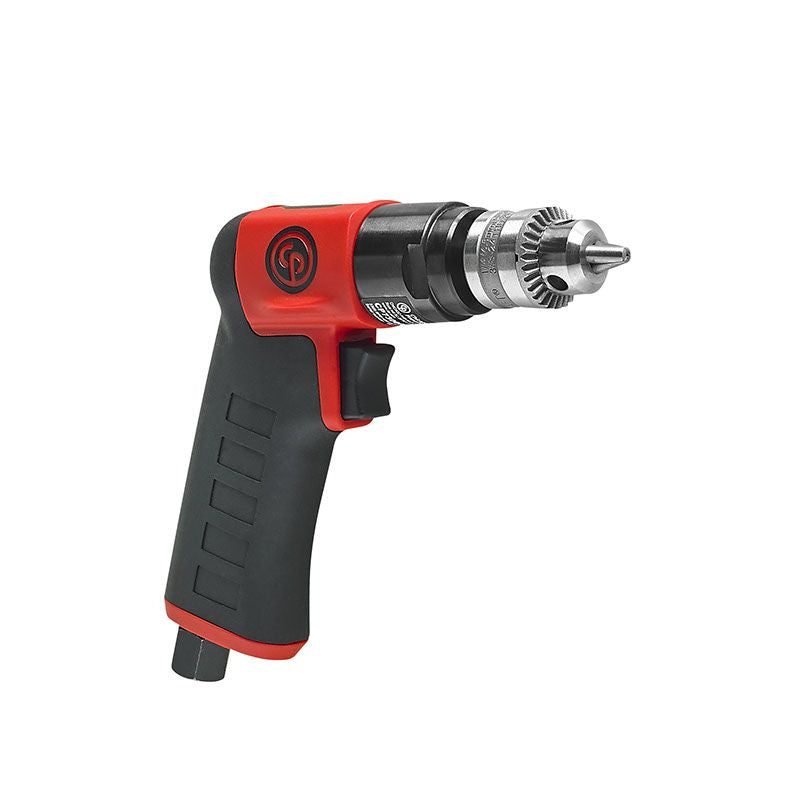

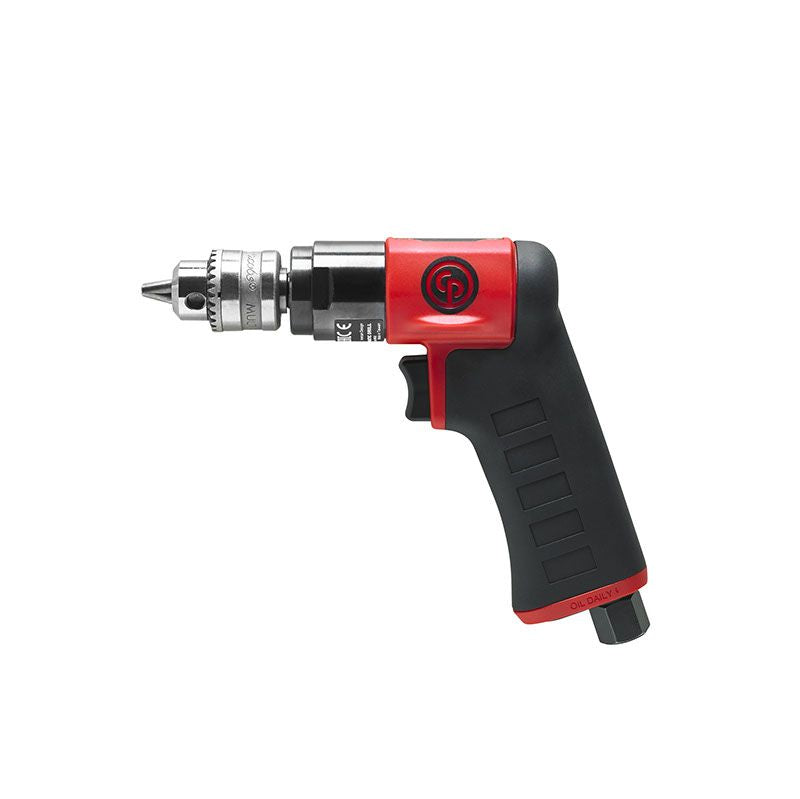

1/4"(6.5 mm) PNEUMATIC DRILL
Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP7300 / CP928X / CP978X / CP979X Series offers high comfort with its compositie housing with thermoplastic rubber handle grip, its wings on right & left sides to guide the forefinger and its handle exhaust.
Features
- Composite housing with thermoplastic rubber handle grip and wings on right & left sides for better operator comfort
- Large teasing trigger and progressive valve allowing more control to start holes
- Handle exhaust allowing the air to flow away from the operator
- Flat back part for better pushing action while drilling and tapping
Specifications
| Chuck max capacity (in) | 1/4 |
| Chuck max capacity (mm) | 6.4 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminum, Composite over-sleeve |
| Reversible | No |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 96 dB(A) |
| Sound Pressure | 85 dB(A) |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 0.31 hp |
| Stall torque | 1.9 ft.lbf |
| Free Speed | 3300 rpm |
| Air consumption at free speed | 21 cfm |
| Height (H) | 5.71 in |
| Length (L) | 6.69 in |
| Side to Center | 1.5 in |
| Weight | 1.41 lb |
| CP part # | 8941073013 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941073013
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
