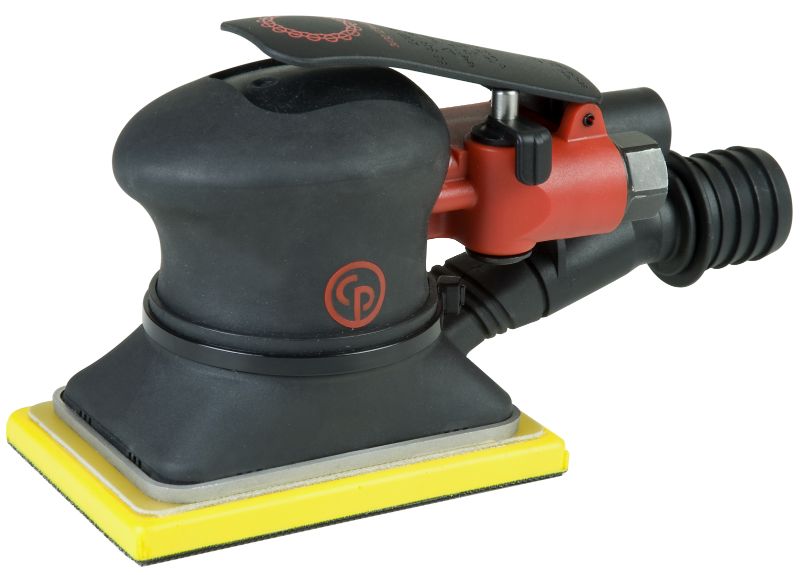

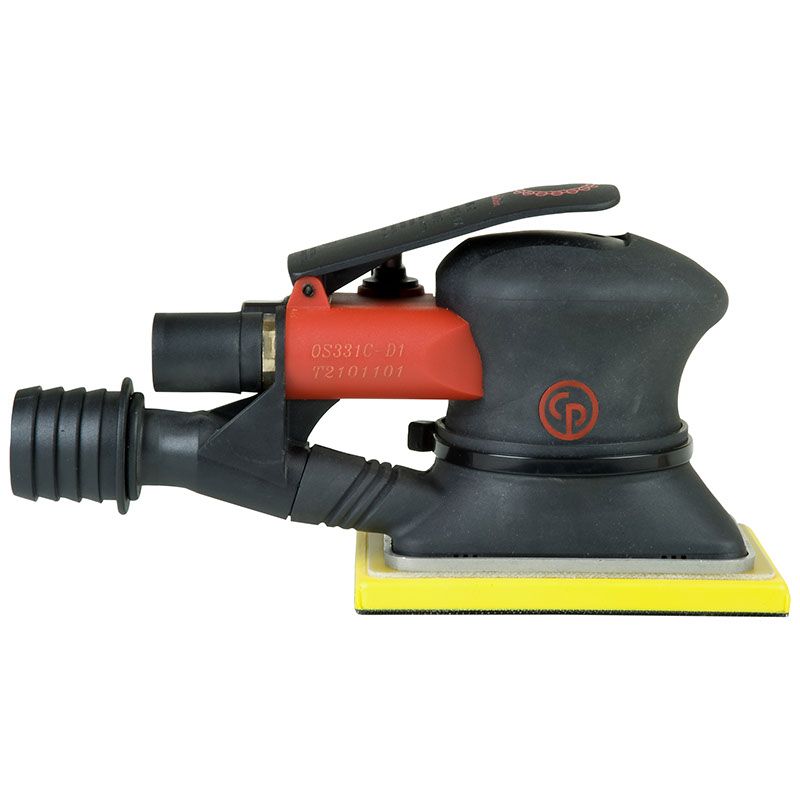

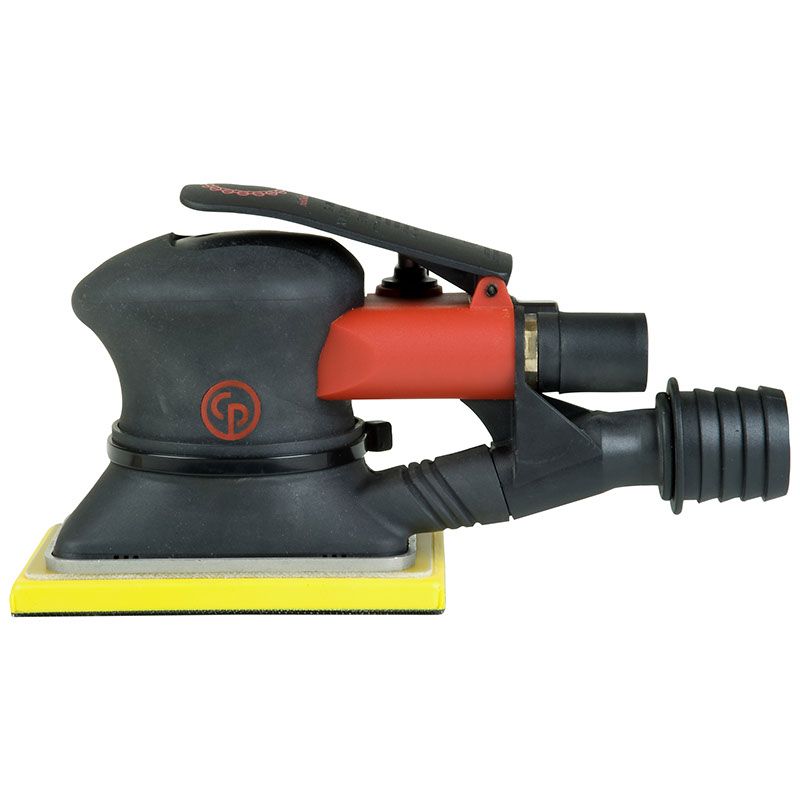

Chicago Pneumatic CP7263CVE Jitterbug Sander โ 8941172650
3"X4-1/4"(74X109 mm) RECT PAD PNEUMATIC SANDER
Designed for body shops applications like final sanding, finishing, and pre-polishing processe, this 6" (150mm) orbital sander (3/16" - 5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 8 models: Non Vacuum (NV) model Hook & Loop and Central Vacuum (CV) model Hook & Loop.
Features
- Operator comfort with ergonomic palm shape in soft grip for perfect control
- Productivity increased with low vibration level and low noise level
- Powerful motor 0.3 hp (210 W) for vertical and horizontal applications
- Rectangle, delta random orbital with palm sander with 3/32"(2.5mm) orbit for surface preparation from body filler to paint primer
Specifications
| Rectangle abrasive pad size WxL (in) | 3x4-1/4 |
| Rectangle abrasive pad size WxL (mm) | 74x109 |
| Free Speed | 10000 rpm |
| Air consumption at free speed | 18 cfm |
| Max power | 0.28 hp |
| Sound Power | 89 dB(A) |
| Sound Pressure | 78 dB(A) |
| Vibration | 29.2 ft/sยฒ |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Abrasive Pad Attachment | Hook&Loop |
| Orbit Size (mm) | 2.5 |
| Orbit type | Jitterbug |
| Vacuum | Central vacuum |
| Height (H) | 3.94 in |
| Length (L) | 7.68 in |
| Width (W) | 2.95 in |
| Weight | 1.5 lb |
| CP part # | 8941172650 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 8941172650
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
