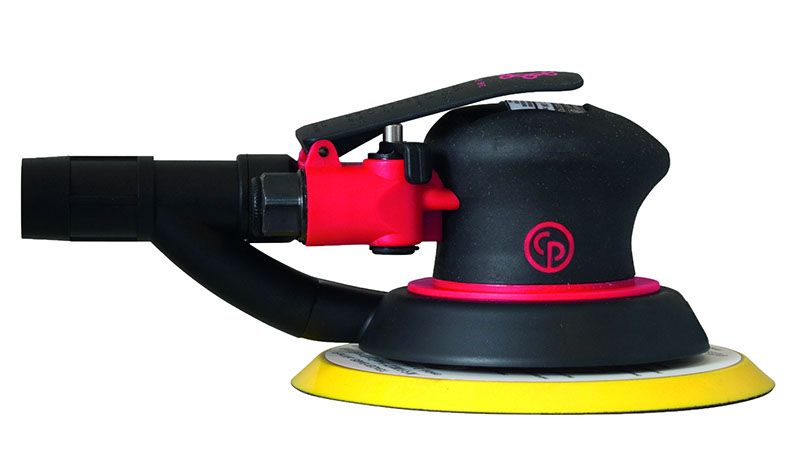

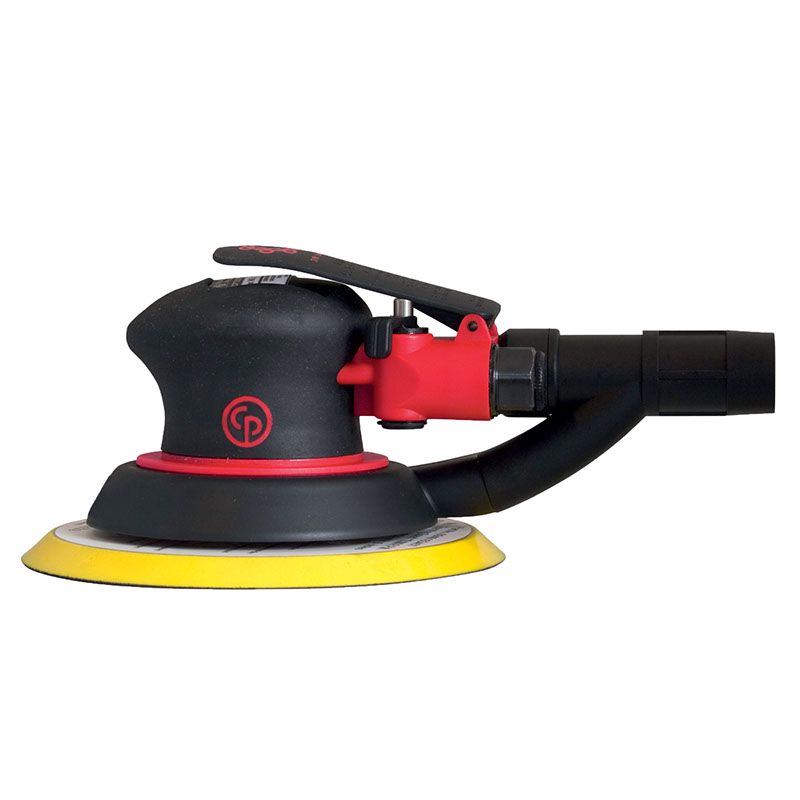

Chicago Pneumatic CP7255SVE 6" Orbital Sander 3/16" Orbit โ 8941272552
6"(150 mm) PNEUMATIC ORBITAL SANDER SELF VACUUM
Designed for body shops applications like final sanding, finishing, and pre-polishing processe, this 3" (75mm) / 6" (150mm) pneumatic orbital sander (3/16" - 5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 12 models: Non Vacuum (NV) model (Hook & Loop and PSA pad), Self Vacuum (SV) model (Hook & Loop and PSA pad),Central Vacuum (CV) model (Hook & Loop and PSA pad*) and Two hands ( CV Hook&Loop pad, NV Hook&Loop pad and NV PSA pad).
Features
- Operator comfort with ergonomic palm shape in soft grip for perfect control
- Productivity increased with low vibration level and low noise level
- Powerful motor 0.3 hp (210 W) for vertical and horizontal applications
- 3"(75 mm) / 6"(150 mm) random orbital with palm sander, 3/16" (5mm) orbit for surface preparation from body filler to paint primer
Specifications
| Free Speed | 12000 rpm |
| Air consumption at free speed | 17 cfm |
| Max power | 0.28 hp |
| Sound Power | 92 dB(A) |
| Sound Pressure | 81 dB(A) |
| Vibration | 16.8 ft/sยฒ |
| Air consumption at load | 16 cfm |
| Air inlet thread size | 1/4 NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Circular Abrasive Pad Size | 6 in / 150 mm |
| Orbit Size | 3/16 in / 5 mm |
| Orbit type | Random |
| Output Spindle Thread | 5/8-24 UNF |
| Pad holes number | 6 |
| Pad type | Foam |
| Abrasive Pad Attachment | Hook&Loop |
| Vacuum | Self vacuum |
| Main Material type | Aluminium, Composite over-sleeve |
| Height | 4.13 in |
| Length | 9.13 in |
| Width | 5.91 in |
| Weight | 1.81 lb |
| CP part # | 8941272552 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
