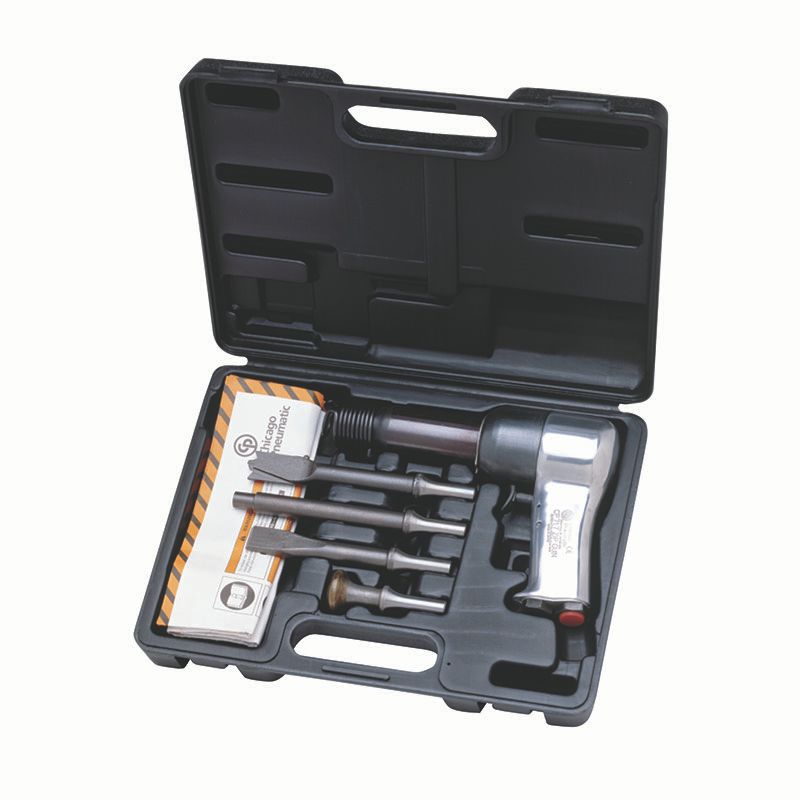

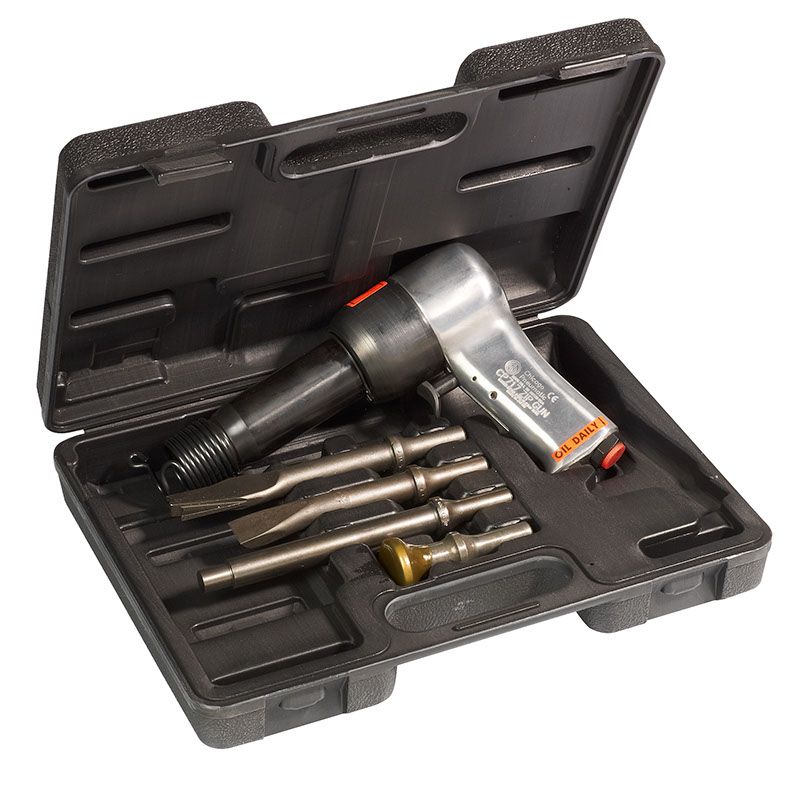

Chicago Pneumatic CP717K .498" Air Hammer Kit – T025365

Description

KIT- 0.498" (12.7 mm) ROUND PNEUMATIC HAMMER

Take advantage of this heavy duty pistol hammer, designed for general maintenance and body shop applications. This model belongs to the CP717 series which is composed of 2 models: the tool itself and the kit.

Features

• Heavy duty pistol grip hammer
• Standard .498" round shank
• Positive action trigger for better precision

Specifications

Bore diameter	0.75 in
Length (L)	7.48 in
Stroke	2.68 in
Weight	4.74 lb
Air consumption at load	12 cfm
Air inlet thread size (in)	1/4
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	10 mm
Blow per minute	1800
Chisel shank	Round
Chisel shank diameter (in)	0.498
Chisel shank diameter (mm)	12.7
Energy	7.3 J
Main Material type	Aluminium
Max rivet size (in)	1/4
Max rivet size (mm)	6.4
Max rivet size steel (in)	3/16
Max rivet size steel (mm)	4.8
Starting system	Trigger
Sound Power	106 dB(A)
Sound Pressure	95 dB(A)
Uncertainty vibration-K	9.5 ft/s²
Vibration	28.2 ft/s²
CP part #	T025365

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
