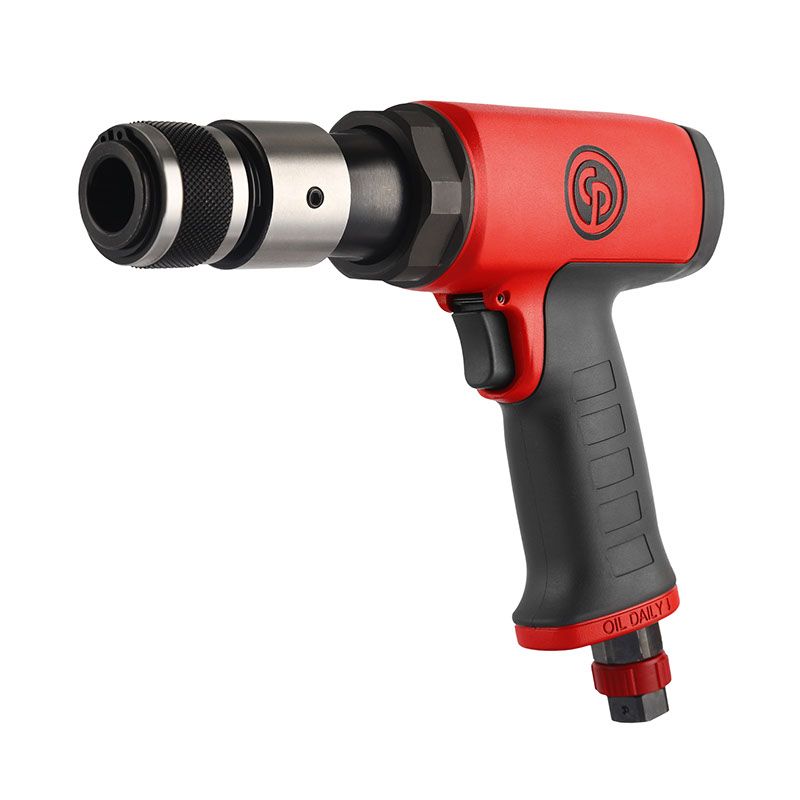

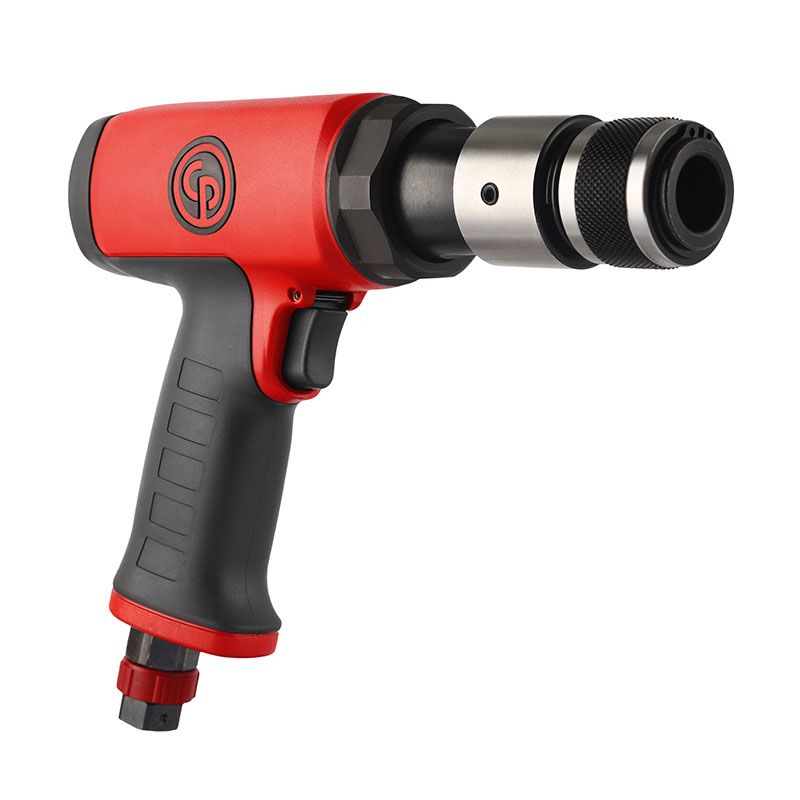

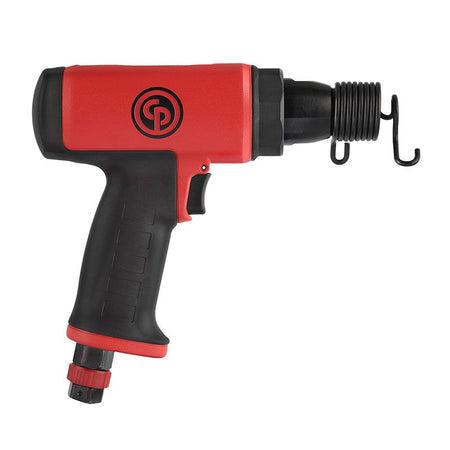

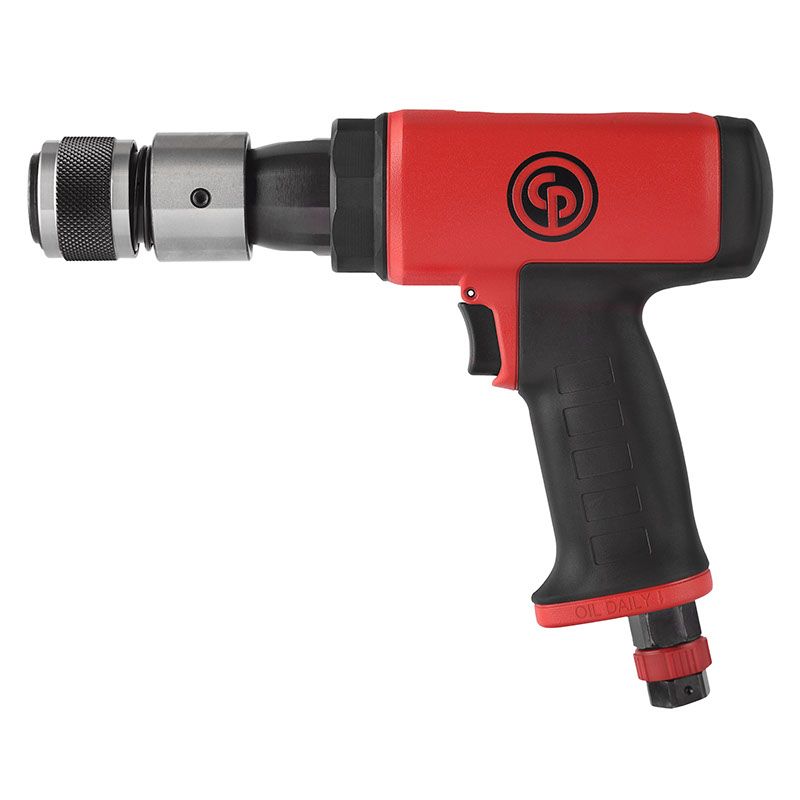

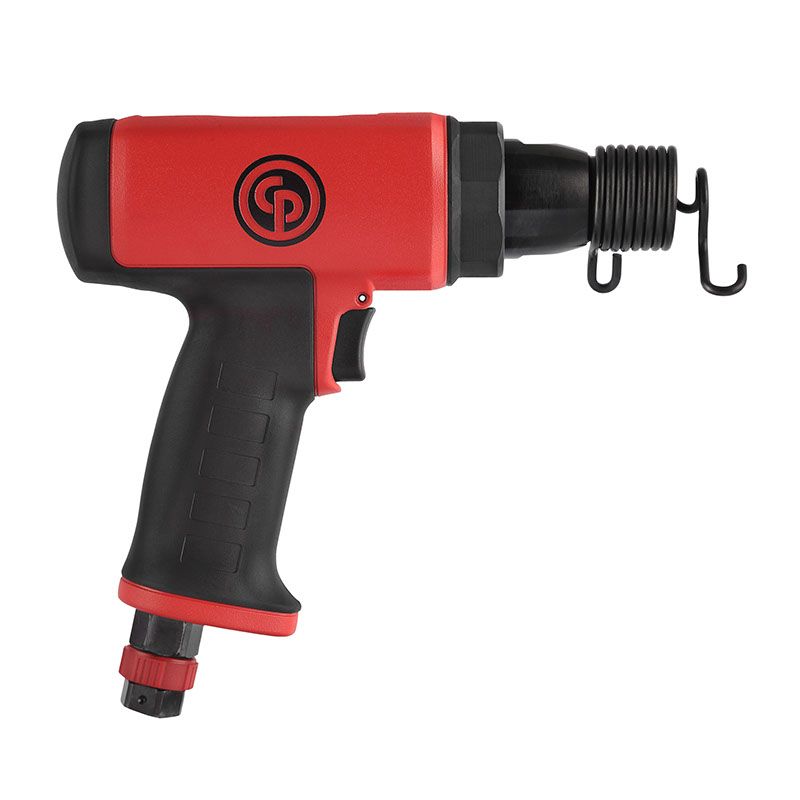

Chicago Pneumatic CP7160 Low Vibration Short Hammer – 8941071600

Description

0.401"(10.2 mm) ROUND PNEUMATIC LOW VIBRATION SHORT HAMMER

Take advantage of this short or long low vibrations hammer, designed for general maintenance and body shop applications. Its weight (less than 4.85 lbs / 2.2kg) and its low vibrations (less than 4.37 m/s²) offer high comfort for everyday jobs. This model belongs to the CP7160 / 65 series which is composed of 4 models: 2 pistol hammers (long & short round 0.401" hammer) and 2 kits (long & short round 0.401" hammer).

Features

• Low vibration
• Comfortable grip
• Robust motor housing
• Quick change chisel retainer

Specifications

Bore diameter	0.75 in
Height (H)	7.64 in
Length (L)	7.52 in
Width (W)	2.28 in
Stroke	2.64 in
Weight	4.14 lb
Air consumption at load	18 cfm
Air inlet thread size	1/4
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	10 mm
Blow per minute	3500
Chisel shank	Round
Chisel shank diameter	0.401 in
Chisel shank diameter	10.2 mm
Energy	8 J
Main Material type	Composite, Steel
Max rivet size	1/4 in
Max rivet size	6.4 mm
Max rivet size steel	3/16 in
Max rivet size steel	4.8 mm
Starting system	Trigger
Sound Power	109.4 dB(A)
Sound Pressure	98.4 dB(A)
Uncertainty vibration-K	4.6 ft/s²
Vibration	14.3 ft/s²
CP part #	8941071600

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
