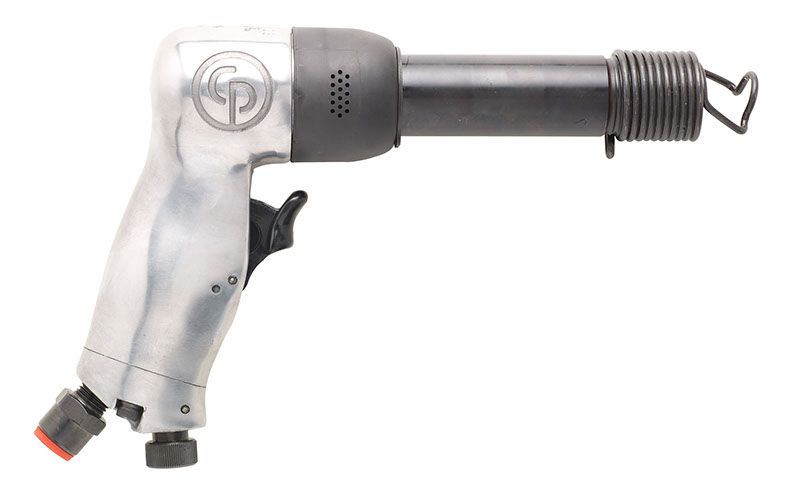

Chicago Pneumatic CP714 .401" Air Hammer – T012735

Description

0.401" (10.2 mm) ROUND PNEUMATIC HAMMER

Take advantage of this heavy duty pistol hammer, designed for general maintenance and body shop applications. This model belongs to the CP714 series which is composed of 2 models: the tool itself and the kit.

Features

• Heavy duty pistol grip hammer
• Speed regulator and positive action trigger for precise control
• High durability thanks to its aluminum housing

Specifications

Bore diameter	0.55 in
Length (L)	7.48 in
Stroke	3.15 in
Weight	3.33 lb
Air consumption at load	8.5 cfm
Air inlet thread size (in)	1/4
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	10 mm
Blow per minute	2000
Chisel shank	Round
Chisel shank diameter (in)	0.401
Chisel shank diameter (mm)	10.2
Energy	4.7 J
Main Material type	Aluminium
Max rivet size (in)	1/4
Max rivet size (mm)	6.4
Max rivet size steel (in)	3/16
Max rivet size steel (mm)	4.8
Starting system	Trigger
Sound Power	102.5 dB(A)
Sound Pressure	91.5 dB(A)
Uncertainty vibration-K	19 ft/s²
Vibration	53.1 ft/s²
CP part #	T012735

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
