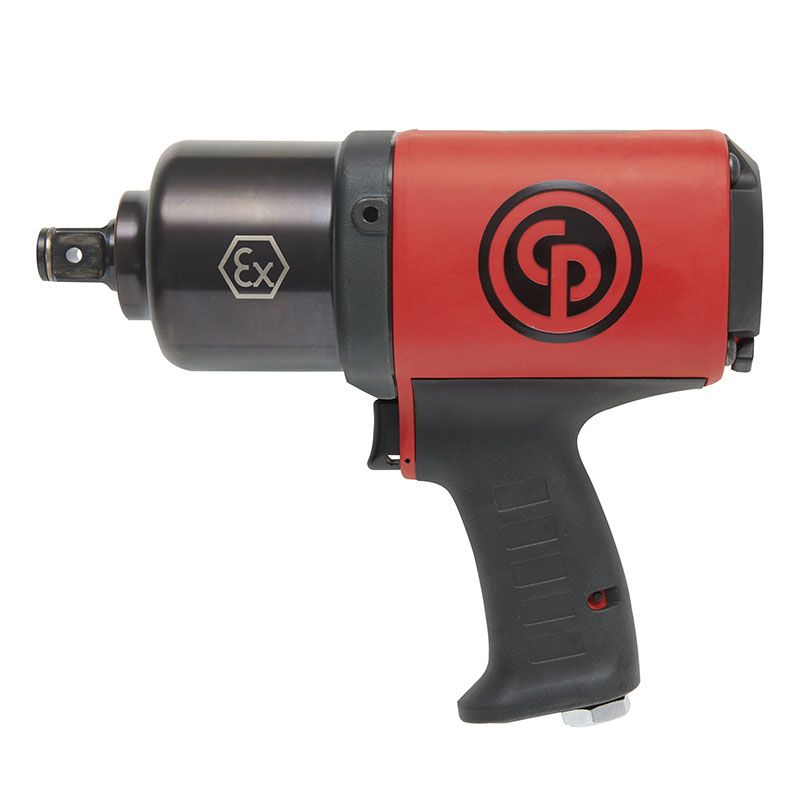

Chicago Pneumatic CP6768EX-P18D 3/4" Impact Wrench ATEX โ 6151590580
3/4" pistol pneumatic impact wrench - atex
Work in any heavy-duty environment with the CP67XX series of impact wrenches from 3/8" to 1, including Atex certified-IP6 dust-proof models. Designed with a powerful and durable oil bath twin hammer clutch mechanism, steel housing, and a lightweight composite body, the CP67XX delivers a maximum reverse torque from 475 up to 1750 Nm (350 up to 1290 ft.lb us). The CP67XX series is available in ATEX and non ATEX for CP6728 and 38 with ring or ring-dual socket retainer.
Features
- Reliable twin hammer clutch mechanism in oil bath for hard joint applications
- ATEX certified IP6 dust-proof
- Square drive shaft with ring or dual version for a wide variety of applications
- Low noise and low vibration for operator comfort
- Comfortable handle with rubber grip & suspension bail included
Specifications
| Max working torque fwd | 1030 ft.lbf |
| Max torque reverse | 1290 ft.lbf |
| Min working torque fwd | 295 ft.lbf |
| Torque limited | No |
| Air inlet thread size | 3/8 in |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 105 dB(A) |
| Sound Pressure | 94 dB(A) |
| Uncertainty vibration-K | 7.9 ft/sยฒ |
| Vibration | 9.4 m/sยฒ |
| Free Speed | 5100 rpm |
| Air consumption at free speed | 55 cfm |
| Length | 9.84 in |
| Power weight ratio | 390 Nm/kg |
| Side to Center | 1.77 in |
| Weight | 9.7 lb |
| Blow per minute | 1050 |
| Body | Composite |
| Clutch housing | Aluminium |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mechanism | Twin hammer |
| Main Material type | Composite |
| Output drive size | 3/4 in |
| Output drive type | Sq |
| Output retainer type | Dual |
| Starting system | Trigger |
| Suspension option | Included |
| CP part # | 6151590580 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
